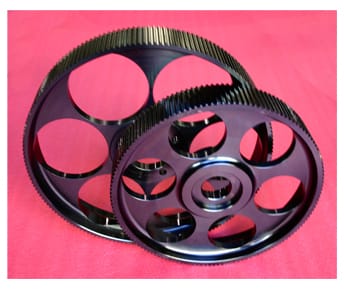

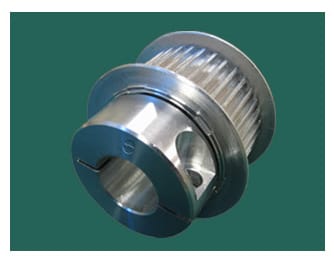

플리(풀리)

5종 세부 제품 · 좌측에서 선택하세요.

세부 제품

2,551

규격 모델

플리

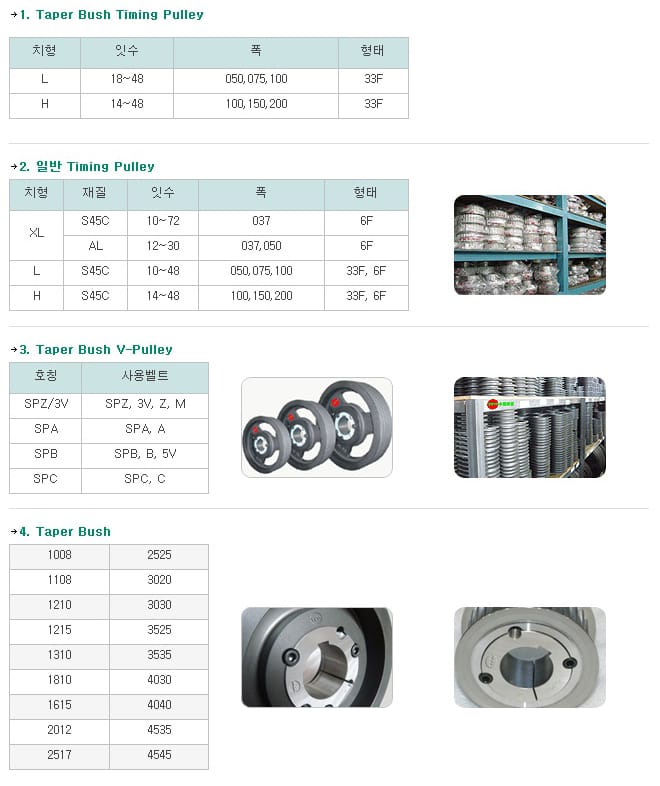

[ 표준품규격 ]

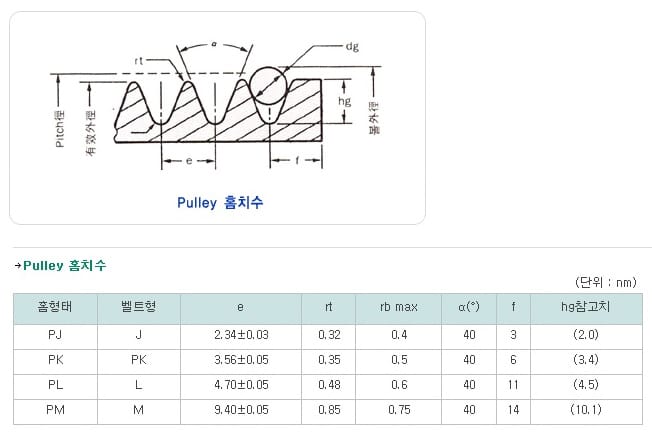

[ Ribstar Pulley ]
[ RPP ]
[ Polychain GT ]
[ GT/YU ]

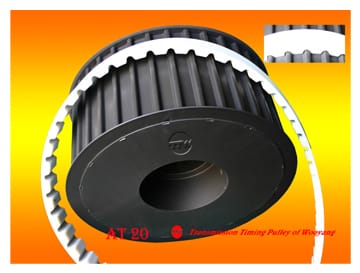

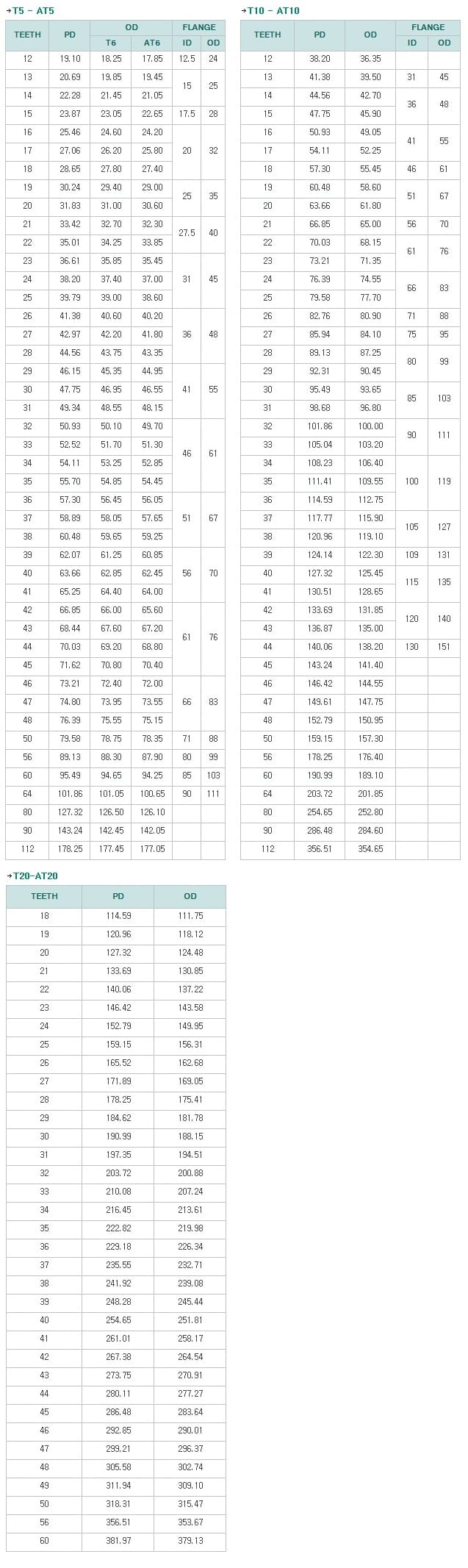

[ T/AT ]
[ Super Torque ]
[ HTD ]

헤더 클릭=정렬 · 행의 담기=견적함

전화주문 02-2672-1933

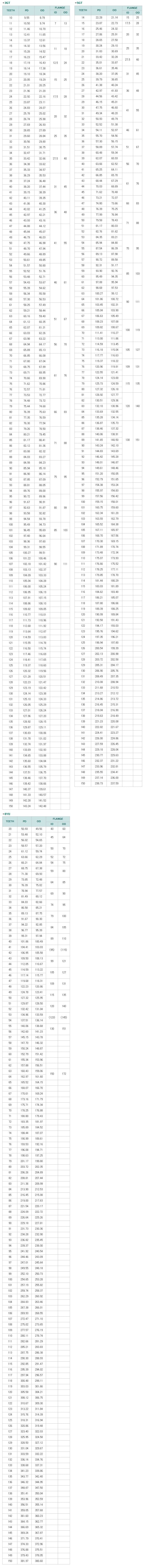

SPZ V-Pulley (벨트: SPZ,Z,M,3V 공통사용)

치수 mm

P⇅	Bush No.⇅	Max Bore Metric⇅	Pulley Type⇅	F⇅	J⇅	K⇅	L⇅	M⇅	N⇅	Outside Dia(O)⇅
56-1	1008	25	9	37	31	15	22	-	-	60.5
56-2	1108	28	9	49	31	27	22	-	-	60.5
60-1	1008	25	9	37	34	15	22	-	-	64.5
60-2	1108	28	9	49	34	27	22	-	-	64.5
63-1	1108	28	1	16	-	-	22	6	67	67.5
63-2	1108	28	2	28	38	-	22	6	-	67.5
63-3	1108	28	2	40	38	-	22	18	-	67.5
67-1	1108	28	1	16	-	-	22	6	-	71.5
67-2	1108	28	6	28	38	6	22	6	-	71.5
67-3	1108	28	6	40	38	18	22	18	-	71.5
71-1	1108	28	1	16	-	-	22	6	67	75.5
71-2	1108	28	6	28	42	6	22	6	-	75.5
71-3	1108	28	6	40	42	18	22	18	-	75.5
75-1	1108	28	1	16	-	-	22	6	67	79.5
75-2	1210	32	6	28	46	3	25	3	-	79.5
75-3	1210	32	6	40	46	15	25	15	-	79.5
80-1	1210	32	1	16	-	-	25	9	77	84.5
80-2	1210	32	6	28	51	3	25	3	-	84.5
80-3	1210	32	6	40	51	15	25	15	-	84.5
80-4	1210	32	6	52	51	27	25	27	-	84.5
85-1	1210	32	1	16	-	-	25	9	77	89.5
85-2	1610	42	6	28	56	3	25	3	-	89.5
85-3	1610	42	6	40	56	15	25	15	-	89.5
85-4	1610	42	6	52	56	27	25	27	-	89.5
85-5	1610	42	6	64	56	39	25	39	-	89.5
90-1	1210	32	1	16	-	-	25	9	77	94.5
90-2	1610	42	6	28	61	3	25	3	-	94.5
90-3	1610	42	6	40	61	15	25	15	-	94.5
90-4	1610	42	6	52	61	27	25	27	-	94.5
90-5	1610	42	6	64	61	39	25	39	-	94.5
90-6	1610	42	6	76	61	51	25	51	-	94.5
95-1	1210	32	1	16	-	-	25	9	77	99.5
95-2	1610	42	6	28	66	3	25	3	-	99.5
95-3	1610	42	6	40	66	15	25	15	-	99.5
95-4	1610	42	6	52	66	27	25	27	-	99.5
95-5	1610	42	6	64	66	39	25	39	-	99.5
95-6	1610	42	6	76	66	51	25	51	-	99.5
100-1	1210	32	1	16	-	-	25	9	77	104.5
100-2	1610	42	6	28	71	3	25	3	-	104.5
100-3	1610	42	6	40	71	15	25	15	-	104.5
100-4	1610	42	6	52	71	27	25	27	-	104.5
100-5	2012	50	6	64	71	32	32	32	-	104.5
100-6	2012	50	6	76	71	44	32	44	-	104.5
106-1	1610	42	1	16	-	-	25	9	88	110.5
106-2	1610	42	6	28	77	3	25	3	-	110.5
106-3	1610	42	6	40	77	15	25	15	-	110.5
106-4	1610	42	6	52	77	27	25	27	-	110.5
106-5	2012	50	6	64	77	32	32	32	-	110.5
106-6	2012	50	6	76	77	44	32	44	-	110.5
112-1	1610	42	1	16	-	-	25	9	88	116.5
112-2	1610	42	6	28	83	3	25	3	-	116.5
112-3	2012	50	6	40	83	8	32	8	-	116.5
112-4	2012	50	6	52	83	20	32	20	-	116.5
112-5	2012	50	6	64	83	32	32	32	-	116.5
112-6	2012	50	6	76	83	44	32	44	-	116.5
118-1	1610	42	1	16	-	-	25	9	88	122.5
118-2	1610	42	6	28	89	3	25	3	-	122.5
118-3	2012	50	6	40	89	8	32	8	-	122.5
118-4	2012	50	6	52	89	20	32	20	-	122.5
118-5	2012	50	6	64	89	32	32	32	-	122.5
118-6	2012	50	6	76	89	31	45	31	-	122.5
125-1	1610	42	1	16	-	-	25	9	88	129.5
125-2	1610	42	6	28	96	3	25	-	-	129.5
125-3	2012	50	2	40	96	-	32	8	-	129.5
125-4	2012	50	2	52	96	-	32	20	-	129.5
125-5	2012	50	6	64	96	32	32	-	-	129.5
125-6	2517	60	6	76	96	31	45	-	-	129.5
132-1	1610	42	1	16	-	-	25	9	88	136.5
132-2	1610	42	6	28	103	3	25	-	-	136.5
132-3	2012	50	2	40	103	-	32	8	-	136.5
132-4	2012	50	2	52	103	-	32	20	-	136.5
132-5	2517	60	6	64	103	19	45	-	-	136.5
132-6	2517	60	6	76	103	31	45	-	-	136.5
140-1	1610	42	1	16	-	-	25	9	88	144.5
140-2	1610	42	6	28	111	3	25	-	-	144.5
140-3	2012	50	2	40	111	-	32	8	-	144.5
140-4	2012	50	2	52	111	-	32	20	-	144.5
140-5	2517	60	2	64	111	-	45	19	-	144.5
140-6	2517	60	2	76	111	-	45	31	-	144.5
140-8	2517	60	5	100	111	27.5	45	27.5	-	144.5
150-1	1610	42	1	16	-	-	25	9	88	154.5
150-2	2012	50	1	28	-	-	32	4	105	154.5
150-3	2012	50	2	40	121	-	32	8	-	154.5
150-4	2517	60	2	52	121	-	45	7	-	154.5
150-5	2517	60	2	64	121	-	45	19	-	154.5
150-6	2517	60	2	76	121	-	45	31	-	154.5
150-8	2517	60	5	100	121	27.5	45	27.5	124	154.5
160-1	1610	42	1	16	-	-	25	9	88	164.5
160-2	2012	50	1	28	-	-	32	4	105	164.5
160-3	2012	50	2	40	131	-	32	8	-	164.5
160-4	2517	60	2	52	131	-	45	7	-	164.5
160-5	2517	60	2	64	131	-	45	19	-	164.5
160-6	2517	60	2	76	131	-	45	31	-	164.5
160-8	2517	60	5	100	131	27.5	45	27.5	124	164.5
170-1	1610	42	1	16	-	-	25	9	88	174.5
170-2	2012	50	1	28	-	-	32	4	105	174.5
170-3	2012	50	2	40	141	-	32	8	-	174.5
170-4	2517	60	2	52	141	-	45	7	-	174.5
170-5	2517	60	2	64	141	-	45	19	-	174.5
170-6	2517	60	2	76	141	-	45	31	-	174.5
170-8	2517	60	5	100	141	27.5	45	27.5	124	174.5
180-1	1610	42	1	16	-	-	25	9	88	184.5
180-2	2012	50	1	28	-	-	32	4	105	184.5
180-3	2012	50	2	40	151	-	32	8	-	184.5
180-4	2517	60	2	52	151	-	45	7	-	184.5
180-5	2517	60	2	64	151	-	45	19	-	184.5
180-6	2517	60	2	76	151	-	45	31	-	184.5
180-8	3020	75	3	100	151	24.5	51	24.5	-	184.5
190-1	1610	42	1	16	-	-	25	9	88	194.5
190-2	2012	50	1	28	-	-	32	4	105	194.5
190-3	2012	50	5	40	161	4	32	4	105	194.5
190-4	2517	60	5	52	161	3.5	45	3.5	124	194.5
190-5	2517	60	5	64	161	9.5	45	9.5	124	194.5
190-6	2517	60	5	76	161	15.5	45	15.5	124	194.5
190-8	3020	75	3	100	161	24.5	51	24.5	-	194.5
200-1	1610	42	5	16	161	4.5	25	4.5	88	204.5
200-2	2012	50	5	28	171	2.0	32	2	105	204.5
200-3	2012	50	5	40	171	4	32	12	105	204.5
200-4	2517	60	5	52	171	3.5	45	10	124	204.5
200-5	2517	60	5	64	171	9.5	45	9.5	124	204.5
200-6	2517	60	5	76	171	15.5	45	15.5	124	204.5
200-8	3020	75	5	100	171	24.5	51	24.5	150	204.5
224-1	2012	50	5	16	195	4.5	25	4.5	105	228.5
224-2	2012	50	5	28	195	1.5	25	1.5	105	228.5
224-3	2012	50	5	40	195	4	32	4	105	228.5
224-4	2517	60	5	52	195	10	32	10	124	228.5
224-5	2517	60	5	64	195	9.5	45	9.5	124	228.5
224-6	2517	60	5	76	195	15.5	45	15.5	124	228.5
224-8	3020	75	5	100	195	27.5	45	27.5	150	228.5
250-1	2012	50	5	16	221	4.5	25	4.5	105	254.5
250-2	2012	50	5	28	221	2	32	2	105	254.5
250-3	2012	50	5	40	221	4	32	4	105	254.5
250-4	2517	60	5	52	221	3.5	45	3.5	124	254.5
250-5	2517	60	5	64	221	9.5	45	9.5	124	254.5
250-6	2517	60	5	76	221	15.5	45	15.5	124	254.5
250-8	3020	75	5	100	221	27.5	45	27.5	150	254.5
280-1	2012	50	5	16	251	4.5	25	4.5	105	284.5
280-2	2012	50	5	28	251	2	32	2	105	284.5
280-3	2012	50	5	40	251	4	32	4	105	284.5
280-4	2517	60	5	52	251	3.5	45	3.5	124	284.5
280-5	2517	60	5	64	251	9.5	45	9.5	124	284.5
280-6	2517	60	5	76	251	15.5	45	15.5	124	284.5
280-8	3020	75	5	100	251	27.5	45	27.5	150	284.5
315-1	2012	50	5	16	286	4.5	25	4.5	105	319.5
315-2	2012	50	5	28	286	2	32	2	105	319.5
315-3	2012	50	5	40	286	4	32	4	105	319.5
315-4	2517	60	5	52	286	3.5	45	3.5	124	319.5
315-5	2517	60	5	64	286	9.5	45	9.5	124	319.5
315-6	2517	60	5	76	286	15.5	45	15.5	124	319.5
315-8	3020	75	5	100	286	27.5	45	27.5	150	319.5

56-1

Bush No.: 1008
Max Bore Metric: 25
Pulley Type: 9
F: 37

56-2

Bush No.: 1108
Max Bore Metric: 28
Pulley Type: 9
F: 49

60-1

Bush No.: 1008
Max Bore Metric: 25
Pulley Type: 9
F: 37

60-2

Bush No.: 1108
Max Bore Metric: 28
Pulley Type: 9
F: 49

63-1

Bush No.: 1108
Max Bore Metric: 28
Pulley Type: 1
F: 16

63-2

Bush No.: 1108
Max Bore Metric: 28
Pulley Type: 2
F: 28

63-3

Bush No.: 1108
Max Bore Metric: 28
Pulley Type: 2
F: 40

67-1

Bush No.: 1108
Max Bore Metric: 28
Pulley Type: 1
F: 16

67-2

Bush No.: 1108
Max Bore Metric: 28
Pulley Type: 6
F: 28

67-3

Bush No.: 1108
Max Bore Metric: 28
Pulley Type: 6
F: 40

71-1

Bush No.: 1108
Max Bore Metric: 28
Pulley Type: 1
F: 16

71-2

Bush No.: 1108
Max Bore Metric: 28
Pulley Type: 6
F: 28

71-3

Bush No.: 1108
Max Bore Metric: 28
Pulley Type: 6
F: 40

75-1

Bush No.: 1108
Max Bore Metric: 28
Pulley Type: 1
F: 16

75-2

Bush No.: 1210
Max Bore Metric: 32
Pulley Type: 6
F: 28

75-3

Bush No.: 1210
Max Bore Metric: 32
Pulley Type: 6
F: 40

80-1

Bush No.: 1210
Max Bore Metric: 32
Pulley Type: 1
F: 16

80-2

Bush No.: 1210
Max Bore Metric: 32
Pulley Type: 6
F: 28

80-3

Bush No.: 1210
Max Bore Metric: 32
Pulley Type: 6
F: 40

80-4

Bush No.: 1210
Max Bore Metric: 32
Pulley Type: 6
F: 52

85-1

Bush No.: 1210
Max Bore Metric: 32
Pulley Type: 1
F: 16

85-2

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 28

85-3

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 40

85-4

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 52

85-5

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 64

90-1

Bush No.: 1210
Max Bore Metric: 32
Pulley Type: 1
F: 16

90-2

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 28

90-3

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 40

90-4

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 52

90-5

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 64

90-6

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 76

95-1

Bush No.: 1210
Max Bore Metric: 32
Pulley Type: 1
F: 16

95-2

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 28

95-3

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 40

95-4

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 52

95-5

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 64

95-6

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 76

100-1

Bush No.: 1210
Max Bore Metric: 32
Pulley Type: 1
F: 16

100-2

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 28

100-3

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 40

100-4

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 52

100-5

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 6
F: 64

100-6

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 6
F: 76

106-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 16

106-2

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 28

106-3

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 40

106-4

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 52

106-5

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 6
F: 64

106-6

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 6
F: 76

112-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 16

112-2

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 28

112-3

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 6
F: 40

112-4

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 6
F: 52

112-5

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 6
F: 64

112-6

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 6
F: 76

118-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 16

118-2

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 28

118-3

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 6
F: 40

118-4

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 6
F: 52

118-5

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 6
F: 64

118-6

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 6
F: 76

125-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 16

125-2

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 28

125-3

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 40

125-4

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 52

125-5

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 6
F: 64

125-6

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 6
F: 76

132-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 16

132-2

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 28

132-3

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 40

132-4

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 52

132-5

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 6
F: 64

132-6

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 6
F: 76

140-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 16

140-2

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 28

140-3

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 40

140-4

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 52

140-5

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 64

140-6

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 76

140-8

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 100

150-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 16

150-2

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 1
F: 28

150-3

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 40

150-4

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 52

150-5

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 64

150-6

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 76

150-8

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 100

160-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 16

160-2

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 1
F: 28

160-3

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 40

160-4

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 52

160-5

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 64

160-6

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 76

160-8

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 100

170-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 16

170-2

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 1
F: 28

170-3

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 40

170-4

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 52

170-5

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 64

170-6

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 76

170-8

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 100

180-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 16

180-2

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 1
F: 28

180-3

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 40

180-4

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 52

180-5

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 64

180-6

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 76

180-8

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 100

190-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 16

190-2

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 1
F: 28

190-3

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 5
F: 40

190-4

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 52

190-5

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 64

190-6

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 76

190-8

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 100

200-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 5
F: 16

200-2

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 5
F: 28

200-3

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 5
F: 40

200-4

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 52

200-5

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 64

200-6

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 76

200-8

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 5
F: 100

224-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 5
F: 16

224-2

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 5
F: 28

224-3

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 5
F: 40

224-4

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 52

224-5

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 64

224-6

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 76

224-8

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 5
F: 100

250-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 5
F: 16

250-2

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 5
F: 28

250-3

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 5
F: 40

250-4

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 52

250-5

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 64

250-6

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 76

250-8

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 5
F: 100

280-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 5
F: 16

280-2

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 5
F: 28

280-3

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 5
F: 40

280-4

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 52

280-5

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 64

280-6

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 76

280-8

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 5
F: 100

315-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 5
F: 16

315-2

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 5
F: 28

315-3

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 5
F: 40

315-4

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 52

315-5

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 64

315-6

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 76

315-8

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 5
F: 100

총 184개 · 원본 규격표 전사

SPA V-Pulley (벨트: SPA,A형 공통사용)

치수 mm

P⇅	Bush No.⇅	Max Bore Metric⇅	Pulley Type⇅	F⇅	J⇅	K⇅	L⇅	M⇅	N⇅	Outside Dia(O)⇅
63-1	1108	28	9	40	31	18	20	-	-	69
63-2	1108	28	9	55	31	33	20	-	-	69
67-1	1108	28	1	20	-	-	20	-	-	73
67-2	1108	28	6	35	35	15	20	-	-	73
71-1	1108	28	1	20	-	-	20	-	60	77
71-2	1108	28	6	35	39	15	20	-	-	77
71-3	1108	28	6	50	39	30	20	-	-	77
75-1	1108	28	1	20	-	-	20	-	60	81
75-2	1210	32	6	35	43	10	25	-	-	81
75-3	1210	32	6	20	43	25	25	-	-	81
80-1	1210	32	1	20	-	-	25	5	77	86
80-2	1210	32	6	35	48	10	25	-	-	86
80-3	1210	32	6	50	48	25	25	-	-	86
85-1	1210	32	1	20	-	-	25	5	77	91
85-2	1210	32	6	35	53	10	25	-	-	91
85-3	1210	32	6	50	53	25	25	-	-	91
90-1	1210	32	1	20	-	-	25	5	77	96
90-2	1610	42	6	35	58	10	25	-	-	96
90-3	1610	42	6	50	58	25	25	-	-	96
90-4	1615	42	6	65	58	26	39	-	-	96
95-1	1210	32	1	20	-	-	25	5	77	101
95-2	1610	42	6	35	63	10	25	-	-	101
95-3	1610	42	6	50	63	25	25	-	-	101
95-4	1615	42	6	65	63	26	39	-	-	101
100-1	1610	42	1	20	-	-	25	5	84	106
100-2	1610	42	2	35	68	-	25	10	-	106
100-3	1610	42	2	50	68	-	25	25	-	106
100-4	1615	42	2	65	68	-	39	26	-	106
100-5	1615	42	2	80	68	-	39	41	-	106
100-6	1615	42	3	95	68	28	39	28	-	106
106-1	1610	42	1	20	-	-	25	5	84	112
106-2	1610	42	2	35	74	10	25	-	-	112
106-3	1610	42	2	50	74	-	25	25	-	112
106-4	2012	50	3	65	74	16.5	32	16.5	-	112
106-5	2012	50	3	80	74	24	32	24	-	112
106-6	2012	50	3	95	74	31.5	32	31.5	-	112
112-1	1610	42	1	20	-	-	25	5	84	118
112-2	1610	42	2	35	80	10	25	10	-	118
112-3	2012	50	2	50	80	-	32	18	-	118
112-4	2012	50	3	65	80	16.5	32	16.5	-	118
112-5	2012	50	3	80	80	24	32	24	-	118
112-6	2012	50	3	95	80	31.5	32	31.5	-	118
118-1	1610	42	1	20	-	-	25	5	84	124
118-2	1610	42	2	35	86	-	25	10	-	124
118-3	2012	50	2	50	86	-	32	18	-	124
118-4	2012	50	2	65	86	-	32	33	124	124
118-5	2012	50	2	80	86	-	32	48	-	124
118-6	2012	50	3	95	86	31.5	32	31.5	-	124
125-1	1610	42	1	20	-	-	25	5	84	131
125-2	1610	42	2	35	93	-	25	10	-	131
125-3	2012	50	2	50	93	-	32	18	-	131
125-4	2012	50	2	65	93	-	32	33	105	131
125-5	2012	50	3	80	93	24	32	24	124	131
125-6	2012	50	3	95	93	31.5	32	31.5	-	131
132-1	1610	42	1	20	-	-	25	5	84	138
132-2	2012	50	2	35	100	-	32	3	-	138
132-3	2012	50	2	50	100	-	32	18	-	138
132-4	2517	65	2	65	100	-	45	20	-	138
132-5	2517	65	3	80	100	17.5	45	17.5	105	138
132-6	2517	65	3	95	100	25	45	25	124	138
140-1	1610	42	1	20	-	-	25	5	84	146
140-2	2012	50	2	35	108	-	32	3	-	146
140-3	2517	65	2	50	108	-	45	5	-	146
140-4	2517	65	2	65	108	-	45	20	-	146
140-5	2517	65	3	80	108	17.5	45	17.5	-	146
140-6	2517	65	3	95	108	25	45	25	-	146
150-1	1610	42	1	20	-	-	25	5	84	156
150-2	2012	50	6	35	118	3	32	-	-	156
150-3	2517	65	6	50	118	5	45	-	-	156
150-4	2517	65	2	65	118	-	45	20	-	156
150-5	2517	65	3	80	118	17.5	45	17.5	-	156
150-6	2517	65	3	95	118	25	45	25	-	156
160-1	1610	42	1	20	-	-	25	5	84	166
160-2	2012	50	5	35	128	1.5	32	1.5	105	166
160-3	2517	65	2	50	128	-	45	5	-	166
160-4	2517	65	2	65	128	-	45	20	-	166
160-5	2517	65	3	80	128	17.5	45	17.5	-	166
160-6	2517	65	3	95	128	25	45	25	-	166
170-1	1610	42	1	20	-	-	25	5	84	176
170-2	2012	52	2	35	138	-	32	3	-	176
170-3	2517	65	6	50	138	5	45	-	-	176
170-4	2517	65	2	65	138	-	45	20	-	176
170-5	3020	75	2	80	138	-	51	29	-	176
180-1	1610	42	1	20	-	-	25	5	84	186
180-2	2012	50	2	35	148	-	32	3	105	186
180-3	2517	65	6	50	148	5	45	-	-	186
180-4	2517	65	2	65	148	-	45	20	-	186
180-5	3020	75	3	80	148	14.5	51	14.5	-	186
180-6	3020	75	3	95	148	22	51	22	-	186
190-1	1610	42	1	20	-	-	25	5	84	196
190-2	2012	50	2	35	158	-	32	3	105	196
190-3	2517	65	6	50	158	5	45	-	-	196
190-4	2517	65	2	65	158	-	45	20	-	196
190-5	3020	75	2	80	158	-	51	29	-	196
200-1	2012	50	1	20	-	-	32	12	105	206
200-2	2517	65	7	35	168	5	45	5	124	206
200-3	2517	65	7	50	168	2.5	45	2.5	124	206
200-4	3020	75	2	65	168	-	51	14	-	206
200-5	3020	75	3	80	168	14.5	51	14.5	-	206
200-6	3020	75	3	95	168	22	51	22	-	206
212-1	2012	50	1	20	180	-	32	12	105	218
212-2	2517	65	7	35	180	5	45	5	124	218
212-3	2517	65	2	50	180	-	45	5	-	218
212-4	3020	75	2	65	180	-	51	14	-	218
212-5	3020	75	2	80	180	-	51	29	-	218
224-1	2012	50	1	20	-	-	32	12	105	230
224-2	2517	65	7	35	-	-	45	10	124	230
224-3	2517	65	2	50	192	2.5	45	2.5	124	230
224-4	3020	75	2	65	192	-	51	14	-	230
224-5	3020	75	3	80	192	-	51	29	-	230
224-6	3020	75	1	95	192	22	51	22	-	230
236-1	2012	50	1	20	-	-	32	12	105	242
236-2	2517	65	1	35	-	-	45	10	124	242
236-3	2517	65	2	50	204	-	45	5	-	242
236-4	3020	75	2	65	204	-	51	14	-	242
236-5	3020	75	2	80	204	-	51	29	-	242
250-1	2012	50	1	20	-	-	32	12	105	256
250-2	2517	65	1	35	-	-	45	10	124	256
250-3	2517	65	7	50	218	2.5	45	2.5	124	256
250-4	3020	75	7	65	218	7	51	7	150	256
250-5	3020	75	7	80	218	14.5	51	14.5	150	256
250-6	3020	75	7	95	218	22	51	22	150	256
265-1	2012	50	1	20	-	-	32	12	105	271
265-2	2517	65	1	35	-	-	45	10	124	271
265-3	2517	65	7	50	233	2.5	45	2.5	124	271
265-4	3020	75	7	65	233	7	51	7	150	271
265-5	3020	75	7	80	233	14.5	51	14.5	150	271
280-1	2012	50	1	20	-	-	32	12	105	286
280-2	2517	65	1	35	-	-	45	10	124	286
280-3	2517	65	7	50	248	2.5	45	2.5	124	286
280-4	3020	75	7	65	248	7	51	7	150	286
280-5	3535	95	7	80	248	4.5	89	4.5	180	286
280-6	3535	95	7	95	248	3	89	3	180	286
300-1	2012	50	1	20	-	-	32	12	105	306
300-2	2517	65	1	35	-	-	45	10	124	306
300-3	3020	75	7	50	268	0.5	51	0.5	150	306
300-4	3020	75	7	65	268	7	51	7	150	306
300-5	3535	95	7	80	268	4.5	89	4.5	180	306
315-1	2012	50	1	20	-	-	32	12	105	321
315-2	2517	65	1	35	-	-	45	10	124	321
315-3	3020	75	5	50	283	0.5	51	0.5	150	321
315-4	3020	75	5	65	283	7	51	7	150	321
315-5	3535	95	5	80	283	4.5	89	4.5	180	321
315-6	3535	95	5	95	283	3	89	3	180	321
355-1	2012	50	5	20	323	6	32	6	105	361
355-2	2517	65	5	35	323	5	45	5	124	361
355-3	3020	75	5	50	323	0.5	51	0.5	150	361
355-4	3020	75	5	65	323	7	51	7	150	361
355-5	3535	95	5	80	323	4.5	89	4.5	180	361
400-1	2012	50	5	20	368	6	32	6	105	406

63-1

Bush No.: 1108
Max Bore Metric: 28
Pulley Type: 9
F: 40

63-2

Bush No.: 1108
Max Bore Metric: 28
Pulley Type: 9
F: 55

67-1

Bush No.: 1108
Max Bore Metric: 28
Pulley Type: 1
F: 20

67-2

Bush No.: 1108
Max Bore Metric: 28
Pulley Type: 6
F: 35

71-1

Bush No.: 1108
Max Bore Metric: 28
Pulley Type: 1
F: 20

71-2

Bush No.: 1108
Max Bore Metric: 28
Pulley Type: 6
F: 35

71-3

Bush No.: 1108
Max Bore Metric: 28
Pulley Type: 6
F: 50

75-1

Bush No.: 1108
Max Bore Metric: 28
Pulley Type: 1
F: 20

75-2

Bush No.: 1210
Max Bore Metric: 32
Pulley Type: 6
F: 35

75-3

Bush No.: 1210
Max Bore Metric: 32
Pulley Type: 6
F: 20

80-1

Bush No.: 1210
Max Bore Metric: 32
Pulley Type: 1
F: 20

80-2

Bush No.: 1210
Max Bore Metric: 32
Pulley Type: 6
F: 35

80-3

Bush No.: 1210
Max Bore Metric: 32
Pulley Type: 6
F: 50

85-1

Bush No.: 1210
Max Bore Metric: 32
Pulley Type: 1
F: 20

85-2

Bush No.: 1210
Max Bore Metric: 32
Pulley Type: 6
F: 35

85-3

Bush No.: 1210
Max Bore Metric: 32
Pulley Type: 6
F: 50

90-1

Bush No.: 1210
Max Bore Metric: 32
Pulley Type: 1
F: 20

90-2

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 35

90-3

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 50

90-4

Bush No.: 1615
Max Bore Metric: 42
Pulley Type: 6
F: 65

95-1

Bush No.: 1210
Max Bore Metric: 32
Pulley Type: 1
F: 20

95-2

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 35

95-3

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 6
F: 50

95-4

Bush No.: 1615
Max Bore Metric: 42
Pulley Type: 6
F: 65

100-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 20

100-2

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 2
F: 35

100-3

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 2
F: 50

100-4

Bush No.: 1615
Max Bore Metric: 42
Pulley Type: 2
F: 65

100-5

Bush No.: 1615
Max Bore Metric: 42
Pulley Type: 2
F: 80

100-6

Bush No.: 1615
Max Bore Metric: 42
Pulley Type: 3
F: 95

106-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 20

106-2

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 2
F: 35

106-3

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 2
F: 50

106-4

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 3
F: 65

106-5

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 3
F: 80

106-6

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 3
F: 95

112-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 20

112-2

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 2
F: 35

112-3

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 50

112-4

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 3
F: 65

112-5

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 3
F: 80

112-6

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 3
F: 95

118-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 20

118-2

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 2
F: 35

118-3

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 50

118-4

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 65

118-5

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 80

118-6

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 3
F: 95

125-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 20

125-2

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 2
F: 35

125-3

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 50

125-4

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 65

125-5

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 3
F: 80

125-6

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 3
F: 95

132-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 20

132-2

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 35

132-3

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 50

132-4

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 2
F: 65

132-5

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 3
F: 80

132-6

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 3
F: 95

140-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 20

140-2

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 35

140-3

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 2
F: 50

140-4

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 2
F: 65

140-5

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 3
F: 80

140-6

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 3
F: 95

150-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 20

150-2

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 6
F: 35

150-3

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 6
F: 50

150-4

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 2
F: 65

150-5

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 3
F: 80

150-6

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 3
F: 95

160-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 20

160-2

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 5
F: 35

160-3

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 2
F: 50

160-4

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 2
F: 65

160-5

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 3
F: 80

160-6

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 3
F: 95

170-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 20

170-2

Bush No.: 2012
Max Bore Metric: 52
Pulley Type: 2
F: 35

170-3

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 6
F: 50

170-4

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 2
F: 65

170-5

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 2
F: 80

180-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 20

180-2

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 35

180-3

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 6
F: 50

180-4

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 2
F: 65

180-5

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 80

180-6

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 95

190-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 20

190-2

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 35

190-3

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 6
F: 50

190-4

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 2
F: 65

190-5

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 2
F: 80

200-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 1
F: 20

200-2

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 7
F: 35

200-3

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 7
F: 50

200-4

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 2
F: 65

200-5

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 80

200-6

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 95

212-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 1
F: 20

212-2

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 7
F: 35

212-3

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 2
F: 50

212-4

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 2
F: 65

212-5

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 2
F: 80

224-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 1
F: 20

224-2

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 7
F: 35

224-3

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 2
F: 50

224-4

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 2
F: 65

224-5

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 80

224-6

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 1
F: 95

236-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 1
F: 20

236-2

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 1
F: 35

236-3

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 2
F: 50

236-4

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 2
F: 65

236-5

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 2
F: 80

250-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 1
F: 20

250-2

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 1
F: 35

250-3

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 7
F: 50

250-4

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 7
F: 65

250-5

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 7
F: 80

250-6

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 7
F: 95

265-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 1
F: 20

265-2

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 1
F: 35

265-3

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 7
F: 50

265-4

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 7
F: 65

265-5

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 7
F: 80

280-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 1
F: 20

280-2

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 1
F: 35

280-3

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 7
F: 50

280-4

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 7
F: 65

280-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 80

280-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 95

300-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 1
F: 20

300-2

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 1
F: 35

300-3

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 7
F: 50

300-4

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 7
F: 65

300-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 80

315-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 1
F: 20

315-2

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 1
F: 35

315-3

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 5
F: 50

315-4

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 5
F: 65

315-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 80

315-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 95

355-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 5
F: 20

355-2

Bush No.: 2517
Max Bore Metric: 65
Pulley Type: 5
F: 35

355-3

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 5
F: 50

355-4

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 5
F: 65

355-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 80

400-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 5
F: 20

총 178개 · 원본 규격표 전사

SPB V-Pulley (벨트: SPB,B,5V형 공통사용)

치수 mm

P⇅	Bush No.⇅	Max Bore Metric⇅	Pulley Type⇅	F⇅	J⇅	K⇅	L⇅	M⇅	N⇅	Outside Dia(O)⇅
100-1	1610	42	1	25	-	-	25	-	-	107
100-2	1610	42	2	44	59	19	25	-	-	107
100-3	1610	42	2	63	59	38	25	-	-	107
112-1	1610	42	1	25	-	-	25	-	-	119
112-2	1610	42	2	44	71	19	25	-	-	119
112-3	1610	42	2	63	71	38	25	-	-	119
118-1	1610	42	1	25	-	-	25	-	-	125
118-2	1610	42	2	44	75	19	25	-	-	125
118-3	1610	42	2	63	75	38	25	-	-	125
125-1	1610	42	1	25	-	-	25	-	-	132
125-2	2012	50	2	44	82	-	32	12	-	132
125-3	2012	50	2	63	82	-	32	31	-	132
125-4	2012	50	3	82	82	25	32	25	-	132
125-5	2012	50	3	101	82	35	32	35	-	132
132-1	1610	42	1	25	-	-	25	-	-	139
132-2	2012	50	2	44	89	-	32	12	-	139
132-3	2012	50	2	63	89	-	32	31	-	139
132-4	2012	50	3	82	89	25	32	25	-	139
132-5	2517	60	3	101	89	28	45	28	-	139
140-1	1610	42	1	25	-	-	25	-	-	147
140-2	2012	50	2	44	97	-	32	12	-	147
140-3	2012	50	2	63	97	-	32	31	-	147
140-4	2517	60	3	82	97	19	45	19	-	147
140-5	2517	60	3	101	97	28	45	28	-	147
140-6	2517	60	3	120	97	38	45	38	-	147
150-1	1610	42	1	25	-	-	25	-	-	157
150-2	2012	50	2	44	107	-	32	12	-	157
150-3	2517	60	2	63	107	-	45	18	-	157
150-4	2517	60	3	82	107	19	45	19	-	157
150-5	2517	60	3	101	107	28	45	28	-	157
150-6	2517	60	3	120	107	38	45	38	-	157
160-1	1610	42	1	25	-	-	25	-	-	167
160-2	2012	50	2	44	117	-	32	12	-	167
160-3	2517	60	2	63	117	-	45	18	-	167
160-4	2517	60	3	82	117	19	45	19	-	167
160-5	2517	60	3	101	117	28	45	28	-	167
160-6	3020	75	3	120	117	35	51	35	-	167
170-1	1610	42	1	25	-	-	25	-	-	177
170-2	2012	50	2	44	127	-	32	12	-	177
170-3	2517	60	2	63	127	-	45	18	-	177
170-4	2517	60	3	82	127	19	45	19	-	177
170-5	3020	75	3	101	127	25	51	25	-	177
170-6	3020	75	3	120	127	35	51	35	-	177
170-8	3030	75	3	345	127	158	187	-	-	177
180-1	1610	42	1	25	-	-	25	-	-	187
180-2	2517	60	1	44	-	-	45	1	124	187
180-3	2517	60	2	63	137	-	45	18	-	187
180-4	2517	60	3	82	137	19	45	19	-	187
180-5	3020	75	3	101	137	25	51	25	-	187
180-6	3020	75	3	120	137	35	51	35	-	187
180-8	3030	75	3	158	137	41	76	41	-	187
190-1	2012	50	1	25	-	-	32	7	105	197
190-2	2517	60	1	44	-	-	45	1	124	197
190-3	2517	60	2	63	147	-	45	18	-	197
190-4	2517	60	3	82	147	19	45	19	-	197
190-5	3020	75	3	101	147	25	51	25	-	197
190-6	3020	75	3	120	147	35	51	35	-	197
190-8	3030	75	3	158	147	41	76	41	-	197
200-1	2012	50	1	25	-	-	32	7	105	207
200-2	2517	60	1	44	-	-	45	1	124	207
200-3	2517	60	2	63	157	-	45	18	-	207
200-4	3020	75	2	63	157	-	51	12	-	207
200-5	3020	75	3	101	157	25	51	25	-	207
200-6	3020	75	3	120	157	35	51	35	-	207
200-8	3535	95	3	158	157	35	89	35	-	207
212-1	2012	50	1	25	-	-	32	7	105	219
212-2	2517	60	1	44	-	-	45	1	124	219
212-3	2517	60	2	63	169	-	45	18	-	219
212-4	3020	75	2	82	169	-	51	31	-	219
212-5	3020	75	3	101	169	25	51	25	-	219
212-6	3535	95	3	120	169	16	89	16	-	219
212-8	3535	95	3	158	169	35	89	35	-	219
224-1	2012	50	1	25	-	-	32	7	105	231
224-2	2517	60	1	44	-	-	45	1	124	231
224-3	2517	60	2	63	181	-	45	18	-	231
224-4	3020	75	2	82	181	-	51	31	-	231
224-5	3020	75	3	101	181	25	51	25	-	231
224-6	3535	95	3	120	181	16	89	16	-	231
224-8	3535	95	3	158	181	35	89	35	-	231
224-10	3535	95	3	196	181	54	89	54	-	231
236-1	2012	50	1	25	-	-	32	7	105	243
236-2	2517	60	1	44	-	-	45	1	124	243
236-3	2517	60	2	63	193	-	45	18	-	243
236-4	3020	75	2	82	193	-	51	31	-	243
236-5	3535	95	3	101	193	6	89	6	-	243
236-6	3535	95	3	120	193	16	89	16	-	243
236-8	3535	95	3	158	193	35	89	35	-	243
236-10	3535	95	3	196	193	54	89	54	-	243
250-1	2012	50	8	25	207	-	32	7	105	257
250-2	2517	60	8	44	207	-	45	1	124	257
250-3	3020	75	7	63	207	-	51	12	150	257
250-4	3020	75	7	82	207	-	51	31	150	257
250-5	3535	95	7	101	207	6	89	6	-	257
250-6	3535	95	7	120	207	16	89	16	-	257
250-8	3535	95	7	158	207	35	89	35	-	257
250-10	3535	95	7	196	207	54	89	54	-	257
280-1	2012	50	1	25	237	-	32	7	105	287
280-2	2517	60	1	44	237	-	45	1	124	287
280-3	3020	75	7	63	237	6	51	6	150	287
280-4	3020	75	7	82	237	16	51	16	150	287
280-5	3535	95	7	101	237	6	89	6	180	287
280-6	3535	95	7	120	237	16	89	16	180	287
280-8	3535	95	7	158	237	35	89	35	180	287
280-10	3535	95	7	196	237	54	89	54	180	287
300-1	2012	50	1	25	257	-	32	7	105	307
300-2	2517	60	1	44	257	-	45	1	124	307
300-3	3020	75	7	63	257	6	51	6	150	307
300-4	3020	75	7	82	257	16	51	16	150	307
300-5	3535	95	7	101	257	6	89	6	180	307
300-6	3535	95	7	120	257	16	89	16	180	307
300-8	3535	95	7	158	257	35	89	35	180	307
315-1	2012	50	1	25	272	-	32	7	105	322
315-2	2517	60	1	44	272	-	45	1	124	322
315-3	3020	75	7	63	272	6	51	6	150	322
315-4	3535	95	7	82	272	4	89	4	150	322
315-5	3535	95	7	101	272	6	89	6	180	322
315-6	3535	95	7	120	272	16	89	16	180	322
315-8	3535	95	7	158	272	35	89	35	180	322
315-10	3535	95	7	196	272	54	89	54	180	322
335-2	2517	60	5	44	292	-	45	7	124	342
335-3	3020	75	5	63	292	-	51	1	150	342
335-4	3535	95	5	82	292	4	89	4	150	342
335-5	3535	95	5	101	292	6	89	6	180	342
335-6	3535	95	5	120	292	16	89	16	180	342
335-8	3535	95	5	158	292	35	89	35	180	342
335-10	4040	110	5	196	292	47	102	47	205	342
355-2	3020	75	1	44	312	1	45	1	150	362
355-3	3020	75	5	63	312	6	51	6	150	362
355-4	3535	95	5	82	312	16	51	16	180	362
355-5	3535	95	5	101	312	6	89	6	180	362
355-6	3535	95	5	120	312	16	89	16	180	362
355-8	3535	95	5	158	312	35	89	35	180	362
400-2	3020	75	1	44	357	-	51	7	150	407
400-3	3535	95	4	63	357	-	89	26	187	407
400-4	3535	95	4	82	357	-	89	8	187	407
400-5	3535	95	5	101	357	6	89	6	187	407
400-6	3535	95	5	120	357	16	89	16	187	407
400-8	4040	110	5	158	357	28	102	28	200	407
450-2	3020	75	1	44	407	-	51	7	150	457
450-3	3535	95	4	63	407	-	89	26	187	457
450-4	3535	95	4	82	407	-	89	8	187	457
450-5	3535	95	5	101	407	6	89	6	187	457
450-6	4040	110	5	120	407	9	102	9	200	457
450-8	4040	110	5	158	407	28	102	28	200	457
500-2	3020	75	1	44	457	-	51	7	150	507
500-3	3535	95	4	63	457	-	89	26	187	507
500-4	3535	95	4	82	457	-	89	8	187	507
500-5	4040	110	5	101	457	-	102	2	200	507
500-6	4040	110	5	120	457	9	102	9	200	507
500-8	4040	110	5	158	457	28	102	28	200	507

100-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 25

100-2

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 2
F: 44

100-3

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 2
F: 63

112-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 25

112-2

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 2
F: 44

112-3

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 2
F: 63

118-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 25

118-2

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 2
F: 44

118-3

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 2
F: 63

125-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 25

125-2

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 44

125-3

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 63

125-4

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 3
F: 82

125-5

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 3
F: 101

132-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 25

132-2

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 44

132-3

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 63

132-4

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 3
F: 82

132-5

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 3
F: 101

140-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 25

140-2

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 44

140-3

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 63

140-4

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 3
F: 82

140-5

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 3
F: 101

140-6

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 3
F: 120

150-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 25

150-2

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 44

150-3

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 63

150-4

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 3
F: 82

150-5

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 3
F: 101

150-6

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 3
F: 120

160-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 25

160-2

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 44

160-3

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 63

160-4

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 3
F: 82

160-5

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 3
F: 101

160-6

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 120

170-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 25

170-2

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 2
F: 44

170-3

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 63

170-4

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 3
F: 82

170-5

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 101

170-6

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 120

170-8

Bush No.: 3030
Max Bore Metric: 75
Pulley Type: 3
F: 345

180-1

Bush No.: 1610
Max Bore Metric: 42
Pulley Type: 1
F: 25

180-2

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 1
F: 44

180-3

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 63

180-4

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 3
F: 82

180-5

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 101

180-6

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 120

180-8

Bush No.: 3030
Max Bore Metric: 75
Pulley Type: 3
F: 158

190-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 1
F: 25

190-2

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 1
F: 44

190-3

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 63

190-4

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 3
F: 82

190-5

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 101

190-6

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 120

190-8

Bush No.: 3030
Max Bore Metric: 75
Pulley Type: 3
F: 158

200-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 1
F: 25

200-2

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 1
F: 44

200-3

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 63

200-4

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 2
F: 63

200-5

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 101

200-6

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 120

200-8

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 158

212-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 1
F: 25

212-2

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 1
F: 44

212-3

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 63

212-4

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 2
F: 82

212-5

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 101

212-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 120

212-8

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 158

224-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 1
F: 25

224-2

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 1
F: 44

224-3

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 63

224-4

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 2
F: 82

224-5

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 101

224-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 120

224-8

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 158

224-10

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 196

236-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 1
F: 25

236-2

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 1
F: 44

236-3

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 2
F: 63

236-4

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 2
F: 82

236-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 101

236-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 120

236-8

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 158

236-10

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 196

250-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 8
F: 25

250-2

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 8
F: 44

250-3

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 7
F: 63

250-4

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 7
F: 82

250-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 101

250-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 120

250-8

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 158

250-10

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 196

280-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 1
F: 25

280-2

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 1
F: 44

280-3

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 7
F: 63

280-4

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 7
F: 82

280-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 101

280-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 120

280-8

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 158

280-10

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 196

300-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 1
F: 25

300-2

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 1
F: 44

300-3

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 7
F: 63

300-4

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 7
F: 82

300-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 101

300-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 120

300-8

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 158

315-1

Bush No.: 2012
Max Bore Metric: 50
Pulley Type: 1
F: 25

315-2

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 1
F: 44

315-3

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 7
F: 63

315-4

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 82

315-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 101

315-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 120

315-8

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 158

315-10

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 196

335-2

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 5
F: 44

335-3

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 5
F: 63

335-4

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 82

335-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 101

335-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 120

335-8

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 158

335-10

Bush No.: 4040
Max Bore Metric: 110
Pulley Type: 5
F: 196

355-2

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 1
F: 44

355-3

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 5
F: 63

355-4

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 82

355-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 101

355-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 120

355-8

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 158

400-2

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 1
F: 44

400-3

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 4
F: 63

400-4

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 4
F: 82

400-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 101

400-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 120

400-8

Bush No.: 4040
Max Bore Metric: 110
Pulley Type: 5
F: 158

450-2

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 1
F: 44

450-3

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 4
F: 63

450-4

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 4
F: 82

450-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 101

450-6

Bush No.: 4040
Max Bore Metric: 110
Pulley Type: 5
F: 120

450-8

Bush No.: 4040
Max Bore Metric: 110
Pulley Type: 5
F: 158

500-2

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 1
F: 44

500-3

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 4
F: 63

500-4

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 4
F: 82

500-5

Bush No.: 4040
Max Bore Metric: 110
Pulley Type: 5
F: 101

500-6

Bush No.: 4040
Max Bore Metric: 110
Pulley Type: 5
F: 120

500-8

Bush No.: 4040
Max Bore Metric: 110
Pulley Type: 5
F: 158

총 188개 · 원본 규격표 전사

SPC V-Pulley (벨트: SPC,C형 공통사용)

치수 mm

P⇅	Bush No.⇅	Max Bore Metric⇅	Pulley Type⇅	F⇅	J⇅	K⇅	L⇅	M⇅	N⇅	Outside Dia(O)⇅
200-3	2517	60	3	85	148	20	45	20	-	210
200-4	3020	75	3	111	148	30	51	30	-	210
200-5	3535	95	3	136	148	23.5	89	23.5	-	210
200-6	3535	95	3	162	148	36	89	36	-	210
200-8	3535	95	3	213	148	62	89	62	-	210
212-3	3020	75	3	85	160	17	51	17	-	222
212-4	3020	75	3	111	160	30	51	30	-	222
212-5	3535	95	3	136	160	24	89	24	-	222
212-6	3535	95	3	162	160	36	89	36	-	222
212-8	3535	95	3	213	160	62	89	62	-	222
224-3	3020	75	3	85	172	17	51	17	-	234
224-4	3535	95	3	111	172	11	89	11	-	234
224-5	3535	95	3	136	172	24	89	24	-	234
224-6	3535	95	3	162	172	36	89	36	-	234
224-8	3535	95	3	213	172	62	89	62	-	234
236-3	3020	75	3	85	184	17	51	17	-	246
236-4	3535	95	3	111	184	11	89	11	-	246
236-5	3535	95	3	136	184	24	89	24	-	246
236-6	3535	95	3	162	184	36	89	36	-	246
236-8	3535	95	3	213	184	62	89	62	-	246
250-3	3020	75	3	85	198	17	51	17	-	260
250-4	3535	95	3	111	198	11	89	11	-	260
250-5	3535	95	3	136	198	24	89	24	-	260
250-6	3535	95	3	162	198	36	89	36	-	260
250-8	3535	95	3	213	198	62	89	62	-	260
265-3	3535	95	3	85	213	-2	89	-2	-	275
265-4	3535	95	3	111	213	11	89	11	-	275
265-5	3535	95	3	136	213	24	89	24	-	275
265-6	3535	95	3	162	213	36	89	36	-	275
265-8	3535	95	3	213	213	62	89	62	-	275
280-3	3535	95	3	85	228	-2	89	-2	-	290
280-4	3535	95	3	111	228	11	89	11	-	290
280-5	3535	95	3	136	228	24	89	24	-	290
280-6	3535	95	3	162	228	36	89	36	-	290
280-8	3535	95	3	213	228	62	89	62	-	290
300-3	3535	95	7	85	248	-2	89	-2	180	310
300-4	3535	95	7	111	248	11	89	11	180	310
300-5	3535	95	7	136	248	24	89	24	180	310
300-6	3535	95	7	162	248	36	89	36	180	310
300-8	3535	95	7	213	248	62	89	62	200	310
315-3	3535	95	7	85	263	-2	89	-2	180	325
315-4	3535	95	7	111	263	11	89	11	180	325
315-5	3535	95	7	136	263	24	89	24	180	325
315-6	3535	95	7	162	263	36	89	36	180	325
315-8	4040	110	7	213	263	62	89	62	200	325
335-3	3535	95	5	85	283	-2	89	-2	180	345
335-4	3535	95	5	111	283	11	89	11	180	345
335-5	3535	95	5	136	283	24	89	24	180	345
335-6	3535	95	5	162	283	36	89	36	180	345
335-8	4040	110	5	213	283	62	89	62	200	345
355-3	3535	95	5	85	303	-2	89	-2	180	365
355-4	3535	95	5	111	303	11	89	11	180	365
355-5	3535	95	5	136	303	24	89	24	180	365
355-6	3535	95	5	162	303	36	89	36	180	365
355-8	4040	110	5	213	303	62	89	62	200	365
375-3	3535	95	5	85	323	-2	89	-2	180	385
375-4	3535	95	5	111	323	11	89	11	180	385
375-5	3535	95	5	136	323	24	89	24	180	385
375-6	4040	110	5	162	323	36	89	36	200	385
375-8	4545	110	5	213	323	49	115	49	230	385
400-3	3535	95	5	85	348	-2	89	-2	180	410
400-4	3535	95	5	111	348	11	89	11	180	410
400-5	3535	95	5	136	348	24	89	24	180	410
400-6	4040	110	5	162	348	36	89	36	200	410
400-8	4545	110	5	213	348	49	115	49	230	410
425-3	3535	95	4	85	373	-2	89	-2	180	435
425-4	3535	95	5	111	373	11	89	11	180	435
425-5	4040	95	5	136	373	24	89	24	200	435
425-6	4545	110	5	162	373	23	115	23	230	435
425-8	5050	125	5	213	373	49	115	49	260	435
450-3	3535	95	4	85	398	-2	89	-2	180	460
450-4	3535	95	5	111	398	11	89	11	180	460
450-5	4040	110	5	136	398	24	89	24	200	460
450-6	4545	110	5	162	398	23	115	23	230	460
450-8	5050	125	5	213	398	49	115	49	260	460
475-3	3535	95	4	85	423	-2	89	-2	180	485
475-4	3535	95	5	111	423	-2	115	-2	180	485
475-5	4040	110	5	136	423	5	127	5	200	485
475-6	4545	110	5	162	423	17	127	17	230	485
475-8	5050	125	5	213	423	43	127	43	260	485
500-3	3535	95	4	85	448	-2	89	-2	180	510
500-4	3535	95	5	111	448	-2	115	-2	180	510
500-5	4040	110	5	136	448	5	127	5	200	510
500-6	4545	110	5	162	448	17	127	17	230	510
500-8	5050	125	5	213	448	43	127	43	260	510
530-3	3535	95	4	85	478	-2	89	-2	180	540
530-4	3535	95	5	111	478	11	89	11	180	540
530-5	4040	110	5	136	478	5	127	5	200	540
530-6	4545	110	5	162	478	17	127	17	230	540
530-8	5050	125	5	213	478	43	127	43	260	540
560-3	3535	95	4	85	508	-2	89	-2	180	570
560-4	4040	110	5	111	508	-2	115	-2	200	570
560-5	4545	110	5	136	508	5	127	5	230	570
560-6	5050	125	5	162	508	17	127	17	260	570
560-8	5050	125	5	213	508	43	127	43	260	570
630-3	4040	110	4	85	578	-2	89	-2	200	640
630-4	4545	110	4	111	578	-2	115	-2	230	640
630-5	5050	125	5	136	578	5	127	5	260	640
630-6	5050	125	5	162	578	17	127	17	260	640
630-8	5050	125	5	213	578	43	127	43	260	640
710-3	4040	110	4	85	658	-2	89	-2	200	720
710-4	4545	110	4	111	658	-2	115	-2	230	720
710-5	5050	125	5	136	658	5	127	5	260	720
710-6	5050	125	5	162	658	17	127	17	260	720
710-8	5050	125	5	213	658	43	127	43	260	720
800-3	4545	110	4	85	748	-2	89	-2	230	810
800-4	5050	125	4	111	748	-2	115	-2	260	810
800-5	5050	125	5	136	748	5	127	5	260	810
800-6	5050	125	5	162	748	17	127	17	260	810
800-8	5050	125	5	213	748	43	127	43	260	810
900-3	4545	110	4	85	848	-2	89	-2	230	910
900-4	5050	125	4	111	848	-2	115	-2	260	910
900-5	5050	125	5	136	848	5	127	5	260	910
900-6	5050	125	5	162	848	17	127	17	260	910
900-8	5050	125	5	213	848	43	127	43	260	910
1000-3	5050	125	4	85	948	-2	89	-2	260	1010
1000-4	5050	125	4	111	948	-2	115	-2	260	1010
1000-5	5050	125	5	136	948	5	127	5	260	1010
1000-6	5050	125	5	162	948	17	127	17	260	1010
1000-8	5050	125	5	213	948	43	127	43	260	1010
1250-3	5050	125	4	85	1198	-2	89	-2	260	1260
1250-4	5050	125	4	111	1198	-2	115	-2	260	1260
1250-5	5050	125	5	136	1198	5	127	5	260	1260
1250-6	5050	125	5	162	1198	17	127	17	260	1260
1250-8	5050	125	5	213	1198	43	127	43	260	1260

200-3

Bush No.: 2517
Max Bore Metric: 60
Pulley Type: 3
F: 85

200-4

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 111

200-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 136

200-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 162

200-8

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 213

212-3

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 85

212-4

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 111

212-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 136

212-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 162

212-8

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 213

224-3

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 85

224-4

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 111

224-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 136

224-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 162

224-8

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 213

236-3

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 85

236-4

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 111

236-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 136

236-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 162

236-8

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 213

250-3

Bush No.: 3020
Max Bore Metric: 75
Pulley Type: 3
F: 85

250-4

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 111

250-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 136

250-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 162

250-8

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 213

265-3

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 85

265-4

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 111

265-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 136

265-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 162

265-8

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 213

280-3

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 85

280-4

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 111

280-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 136

280-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 162

280-8

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 3
F: 213

300-3

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 85

300-4

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 111

300-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 136

300-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 162

300-8

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 213

315-3

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 85

315-4

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 111

315-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 136

315-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 7
F: 162

315-8

Bush No.: 4040
Max Bore Metric: 110
Pulley Type: 7
F: 213

335-3

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 85

335-4

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 111

335-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 136

335-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 162

335-8

Bush No.: 4040
Max Bore Metric: 110
Pulley Type: 5
F: 213

355-3

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 85

355-4

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 111

355-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 136

355-6

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 162

355-8

Bush No.: 4040
Max Bore Metric: 110
Pulley Type: 5
F: 213

375-3

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 85

375-4

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 111

375-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 136

375-6

Bush No.: 4040
Max Bore Metric: 110
Pulley Type: 5
F: 162

375-8

Bush No.: 4545
Max Bore Metric: 110
Pulley Type: 5
F: 213

400-3

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 85

400-4

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 111

400-5

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 136

400-6

Bush No.: 4040
Max Bore Metric: 110
Pulley Type: 5
F: 162

400-8

Bush No.: 4545
Max Bore Metric: 110
Pulley Type: 5
F: 213

425-3

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 4
F: 85

425-4

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 111

425-5

Bush No.: 4040
Max Bore Metric: 95
Pulley Type: 5
F: 136

425-6

Bush No.: 4545
Max Bore Metric: 110
Pulley Type: 5
F: 162

425-8

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 213

450-3

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 4
F: 85

450-4

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 111

450-5

Bush No.: 4040
Max Bore Metric: 110
Pulley Type: 5
F: 136

450-6

Bush No.: 4545
Max Bore Metric: 110
Pulley Type: 5
F: 162

450-8

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 213

475-3

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 4
F: 85

475-4

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 111

475-5

Bush No.: 4040
Max Bore Metric: 110
Pulley Type: 5
F: 136

475-6

Bush No.: 4545
Max Bore Metric: 110
Pulley Type: 5
F: 162

475-8

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 213

500-3

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 4
F: 85

500-4

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 111

500-5

Bush No.: 4040
Max Bore Metric: 110
Pulley Type: 5
F: 136

500-6

Bush No.: 4545
Max Bore Metric: 110
Pulley Type: 5
F: 162

500-8

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 213

530-3

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 4
F: 85

530-4

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 5
F: 111

530-5

Bush No.: 4040
Max Bore Metric: 110
Pulley Type: 5
F: 136

530-6

Bush No.: 4545
Max Bore Metric: 110
Pulley Type: 5
F: 162

530-8

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 213

560-3

Bush No.: 3535
Max Bore Metric: 95
Pulley Type: 4
F: 85

560-4

Bush No.: 4040
Max Bore Metric: 110
Pulley Type: 5
F: 111

560-5

Bush No.: 4545
Max Bore Metric: 110
Pulley Type: 5
F: 136

560-6

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 162

560-8

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 213

630-3

Bush No.: 4040
Max Bore Metric: 110
Pulley Type: 4
F: 85

630-4

Bush No.: 4545
Max Bore Metric: 110
Pulley Type: 4
F: 111

630-5

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 136

630-6

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 162

630-8

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 213

710-3

Bush No.: 4040
Max Bore Metric: 110
Pulley Type: 4
F: 85

710-4

Bush No.: 4545
Max Bore Metric: 110
Pulley Type: 4
F: 111

710-5

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 136

710-6

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 162

710-8

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 213

800-3

Bush No.: 4545
Max Bore Metric: 110
Pulley Type: 4
F: 85

800-4

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 4
F: 111

800-5

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 136

800-6

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 162

800-8

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 213

900-3

Bush No.: 4545
Max Bore Metric: 110
Pulley Type: 4
F: 85

900-4

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 4
F: 111

900-5

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 136

900-6

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 162

900-8

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 213

1000-3

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 4
F: 85

1000-4

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 4
F: 111

1000-5

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 136

1000-6

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 162

1000-8

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 213

1250-3

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 4
F: 85

1250-4

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 4
F: 111

1250-5

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 136

1250-6

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 162

1250-8

Bush No.: 5050
Max Bore Metric: 125
Pulley Type: 5
F: 213

총 125개 · 원본 규격표 전사

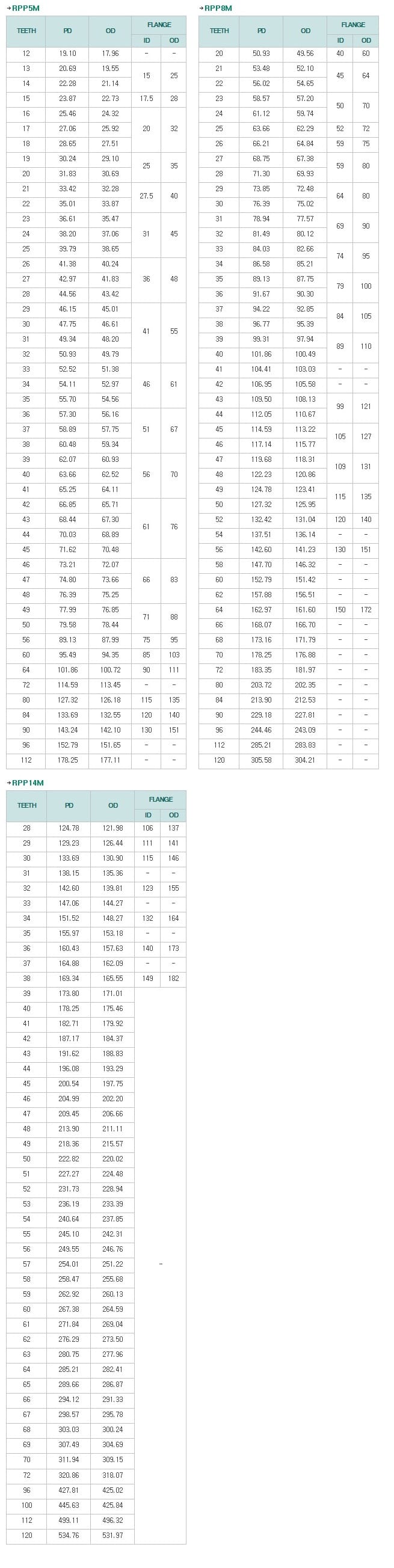

RPP5M

치수 mm

TEETH⇅	PD⇅	OD⇅	FLANGE ID⇅	FLANGE OD⇅
12	19.10	17.96	-	-
13	20.69	19.55	15	25
14	22.28	21.14	15	25
15	23.87	22.73	17.5	28
16	25.46	24.32	20	32
17	27.06	25.92	20	32
18	28.65	27.51	20	32
19	30.24	29.10	25	35
20	31.83	30.69	25	35
21	33.42	32.28	27.5	40
22	35.01	33.87	27.5	40
23	36.61	35.47	31	45
24	38.20	37.06	31	45
25	39.79	38.65	31	45
26	41.38	40.24	36	48
27	42.97	41.83	36	48
28	44.56	43.42	36	48
29	46.15	45.01	41	55
30	47.75	46.61	41	55
31	49.34	48.20	41	55
32	50.93	49.79	41	55
33	52.52	51.38	46	61
34	54.11	52.97	46	61
35	55.70	54.56	46	61
36	57.30	56.16	51	67
37	58.89	57.75	51	67
38	60.48	59.34	51	67
39	62.07	60.93	56	70
40	63.66	62.52	56	70
41	65.25	64.11	56	70
42	66.85	65.71	61	76
43	68.44	67.30	61	76
44	70.03	68.89	61	76
45	71.62	70.48	61	76
46	73.21	72.07	66	83
47	74.80	73.66	66	83
48	76.39	75.25	66	83
49	77.99	76.85	71	88
50	79.58	78.44	71	88
56	89.13	87.99	75	95
60	95.49	94.35	85	103
64	101.86	100.72	90	111
72	114.59	113.45	-	-
80	127.32	126.18	115	135
84	133.69	132.55	120	140
90	143.24	142.10	130	151
96	152.79	151.65	-	-
112	178.25	177.11	-	-

PD: 19.10
OD: 17.96
FLANGE ID: -
FLANGE OD: -

PD: 20.69
OD: 19.55
FLANGE ID: 15
FLANGE OD: 25

PD: 22.28
OD: 21.14
FLANGE ID: 15
FLANGE OD: 25

PD: 23.87
OD: 22.73
FLANGE ID: 17.5
FLANGE OD: 28

PD: 25.46
OD: 24.32
FLANGE ID: 20
FLANGE OD: 32

PD: 27.06
OD: 25.92
FLANGE ID: 20
FLANGE OD: 32

PD: 28.65
OD: 27.51
FLANGE ID: 20
FLANGE OD: 32

PD: 30.24
OD: 29.10
FLANGE ID: 25
FLANGE OD: 35

PD: 31.83
OD: 30.69
FLANGE ID: 25
FLANGE OD: 35

PD: 33.42
OD: 32.28
FLANGE ID: 27.5
FLANGE OD: 40

PD: 35.01
OD: 33.87
FLANGE ID: 27.5
FLANGE OD: 40

PD: 36.61
OD: 35.47
FLANGE ID: 31
FLANGE OD: 45

PD: 38.20
OD: 37.06
FLANGE ID: 31
FLANGE OD: 45

PD: 39.79
OD: 38.65
FLANGE ID: 31
FLANGE OD: 45

PD: 41.38
OD: 40.24
FLANGE ID: 36
FLANGE OD: 48

PD: 42.97
OD: 41.83
FLANGE ID: 36
FLANGE OD: 48

PD: 44.56
OD: 43.42
FLANGE ID: 36
FLANGE OD: 48

PD: 46.15
OD: 45.01
FLANGE ID: 41
FLANGE OD: 55

PD: 47.75
OD: 46.61
FLANGE ID: 41
FLANGE OD: 55

PD: 49.34
OD: 48.20
FLANGE ID: 41
FLANGE OD: 55

PD: 50.93
OD: 49.79
FLANGE ID: 41
FLANGE OD: 55

PD: 52.52
OD: 51.38
FLANGE ID: 46
FLANGE OD: 61

PD: 54.11
OD: 52.97
FLANGE ID: 46
FLANGE OD: 61

PD: 55.70
OD: 54.56
FLANGE ID: 46
FLANGE OD: 61

PD: 57.30
OD: 56.16
FLANGE ID: 51
FLANGE OD: 67

PD: 58.89
OD: 57.75
FLANGE ID: 51
FLANGE OD: 67

PD: 60.48
OD: 59.34
FLANGE ID: 51
FLANGE OD: 67

PD: 62.07
OD: 60.93
FLANGE ID: 56
FLANGE OD: 70

PD: 63.66
OD: 62.52
FLANGE ID: 56
FLANGE OD: 70

PD: 65.25
OD: 64.11
FLANGE ID: 56
FLANGE OD: 70

PD: 66.85
OD: 65.71
FLANGE ID: 61
FLANGE OD: 76

PD: 68.44
OD: 67.30
FLANGE ID: 61
FLANGE OD: 76

PD: 70.03
OD: 68.89
FLANGE ID: 61
FLANGE OD: 76

PD: 71.62
OD: 70.48
FLANGE ID: 61
FLANGE OD: 76

PD: 73.21
OD: 72.07
FLANGE ID: 66
FLANGE OD: 83

PD: 74.80
OD: 73.66
FLANGE ID: 66
FLANGE OD: 83

PD: 76.39
OD: 75.25
FLANGE ID: 66
FLANGE OD: 83

PD: 77.99
OD: 76.85
FLANGE ID: 71
FLANGE OD: 88

PD: 79.58
OD: 78.44
FLANGE ID: 71
FLANGE OD: 88

PD: 89.13
OD: 87.99
FLANGE ID: 75
FLANGE OD: 95

PD: 95.49
OD: 94.35
FLANGE ID: 85
FLANGE OD: 103

PD: 101.86
OD: 100.72
FLANGE ID: 90
FLANGE OD: 111

PD: 114.59
OD: 113.45
FLANGE ID: -
FLANGE OD: -

PD: 127.32
OD: 126.18
FLANGE ID: 115
FLANGE OD: 135

PD: 133.69
OD: 132.55
FLANGE ID: 120
FLANGE OD: 140

PD: 143.24
OD: 142.10
FLANGE ID: 130
FLANGE OD: 151

PD: 152.79
OD: 151.65
FLANGE ID: -
FLANGE OD: -

112

PD: 178.25
OD: 177.11
FLANGE ID: -
FLANGE OD: -

총 48개 · 원본 규격표 전사

RPP8M

치수 mm

TEETH⇅	PD⇅	OD⇅	FLANGE ID⇅	FLANGE OD⇅
20	50.93	49.56	40	60
21	53.48	52.10	45	64
22	56.02	54.65	45	64
23	58.57	57.20	50	70
24	61.12	59.74	50	70
25	63.66	62.29	52	72
26	66.21	64.84	59	75
27	68.75	67.38	59	80
28	71.30	69.93	59	80
29	73.85	72.48	64	80
30	76.39	75.02	64	80
31	78.94	77.57	69	90
32	81.49	80.12	69	90
33	84.03	82.66	74	95
34	86.58	85.21	74	95
35	89.13	87.75	79	100
36	91.67	90.30	79	100
37	94.22	92.85	84	105
38	96.77	95.39	84	105
39	99.31	97.94	89	110
40	101.86	100.49	89	110
41	104.41	103.03	-	-
42	106.95	105.58	-	-
43	109.50	108.13	99	121
44	112.05	110.67	99	121
45	114.59	113.22	105	127
46	117.14	115.77	105	127
47	119.68	118.31	109	131
48	122.23	120.86	109	131
49	124.78	123.41	115	135
50	127.32	125.95	115	135
52	132.42	131.04	120	140
54	137.51	136.14	-	-
56	142.60	141.23	130	151
58	147.70	146.32	-	-
60	152.79	151.42	-	-
62	157.88	156.51	-	-
64	162.97	161.60	150	172
66	168.07	166.70	-	-
68	173.16	171.79	-	-
70	178.25	176.88	-	-
72	183.35	181.97	-	-
80	203.72	202.35	-	-
84	213.90	212.53	-	-
90	229.18	227.81	-	-
96	244.46	243.09	-	-
112	285.21	283.83	-	-
120	305.58	304.21	-	-

PD: 50.93
OD: 49.56
FLANGE ID: 40
FLANGE OD: 60

PD: 53.48
OD: 52.10
FLANGE ID: 45
FLANGE OD: 64

PD: 56.02
OD: 54.65
FLANGE ID: 45
FLANGE OD: 64

PD: 58.57
OD: 57.20
FLANGE ID: 50
FLANGE OD: 70

PD: 61.12
OD: 59.74
FLANGE ID: 50
FLANGE OD: 70

PD: 63.66
OD: 62.29
FLANGE ID: 52
FLANGE OD: 72

PD: 66.21
OD: 64.84
FLANGE ID: 59
FLANGE OD: 75

PD: 68.75
OD: 67.38
FLANGE ID: 59
FLANGE OD: 80

PD: 71.30
OD: 69.93
FLANGE ID: 59
FLANGE OD: 80

PD: 73.85
OD: 72.48
FLANGE ID: 64
FLANGE OD: 80

PD: 76.39
OD: 75.02
FLANGE ID: 64
FLANGE OD: 80

PD: 78.94
OD: 77.57
FLANGE ID: 69
FLANGE OD: 90

PD: 81.49
OD: 80.12
FLANGE ID: 69
FLANGE OD: 90

PD: 84.03
OD: 82.66
FLANGE ID: 74
FLANGE OD: 95

PD: 86.58
OD: 85.21
FLANGE ID: 74
FLANGE OD: 95

PD: 89.13
OD: 87.75
FLANGE ID: 79
FLANGE OD: 100

PD: 91.67
OD: 90.30
FLANGE ID: 79
FLANGE OD: 100

PD: 94.22
OD: 92.85
FLANGE ID: 84
FLANGE OD: 105

PD: 96.77
OD: 95.39
FLANGE ID: 84
FLANGE OD: 105

PD: 99.31
OD: 97.94
FLANGE ID: 89
FLANGE OD: 110

PD: 101.86
OD: 100.49
FLANGE ID: 89
FLANGE OD: 110

PD: 104.41
OD: 103.03
FLANGE ID: -
FLANGE OD: -

PD: 106.95
OD: 105.58
FLANGE ID: -
FLANGE OD: -

PD: 109.50
OD: 108.13
FLANGE ID: 99
FLANGE OD: 121

PD: 112.05
OD: 110.67
FLANGE ID: 99
FLANGE OD: 121

PD: 114.59
OD: 113.22
FLANGE ID: 105
FLANGE OD: 127

PD: 117.14
OD: 115.77
FLANGE ID: 105
FLANGE OD: 127

PD: 119.68
OD: 118.31
FLANGE ID: 109
FLANGE OD: 131

PD: 122.23
OD: 120.86
FLANGE ID: 109
FLANGE OD: 131

PD: 124.78
OD: 123.41
FLANGE ID: 115
FLANGE OD: 135

PD: 127.32
OD: 125.95
FLANGE ID: 115
FLANGE OD: 135

PD: 132.42
OD: 131.04
FLANGE ID: 120
FLANGE OD: 140

PD: 137.51
OD: 136.14
FLANGE ID: -
FLANGE OD: -

PD: 142.60
OD: 141.23
FLANGE ID: 130
FLANGE OD: 151

PD: 147.70
OD: 146.32
FLANGE ID: -
FLANGE OD: -

PD: 152.79
OD: 151.42
FLANGE ID: -
FLANGE OD: -

PD: 157.88
OD: 156.51
FLANGE ID: -
FLANGE OD: -

PD: 162.97
OD: 161.60
FLANGE ID: 150
FLANGE OD: 172

PD: 168.07
OD: 166.70
FLANGE ID: -
FLANGE OD: -

PD: 173.16
OD: 171.79
FLANGE ID: -
FLANGE OD: -

PD: 178.25
OD: 176.88
FLANGE ID: -
FLANGE OD: -

PD: 183.35
OD: 181.97
FLANGE ID: -
FLANGE OD: -

PD: 203.72
OD: 202.35
FLANGE ID: -
FLANGE OD: -

PD: 213.90
OD: 212.53
FLANGE ID: -
FLANGE OD: -

PD: 229.18
OD: 227.81
FLANGE ID: -
FLANGE OD: -

PD: 244.46
OD: 243.09
FLANGE ID: -
FLANGE OD: -

112

PD: 285.21
OD: 283.83
FLANGE ID: -
FLANGE OD: -

120

PD: 305.58
OD: 304.21
FLANGE ID: -
FLANGE OD: -

총 48개 · 원본 규격표 전사

RPP14M

치수 mm

TEETH⇅	PD⇅	OD⇅	FLANGE ID⇅	FLANGE OD⇅
28	124.78	121.98	106	137
29	129.23	126.44	111	141
30	133.69	130.90	115	146
31	138.15	135.36	-	-
32	142.60	139.81	123	155
33	147.06	144.27	-	-
34	151.52	148.27	132	164
35	155.97	153.18	-	-
36	160.43	157.63	140	173
37	164.88	162.09	-	-
38	169.34	165.55	149	182
39	173.80	171.01	-	-
40	178.25	175.46	-	-
41	182.71	179.92	-	-
42	187.17	184.37	-	-
43	191.62	188.83	-	-
44	196.08	193.29	-	-
45	200.54	197.75	-	-
46	204.99	202.20	-	-
47	209.45	206.66	-	-
48	213.90	211.11	-	-
49	218.36	215.57	-	-
50	222.82	220.02	-	-
51	227.27	224.48	-	-
52	231.73	228.94	-	-
53	236.19	233.39	-	-
54	240.64	237.85	-	-
55	245.10	242.31	-	-
56	249.55	246.76	-	-
57	254.01	251.22	-	-
58	258.47	255.68	-	-
59	262.92	260.13	-	-
60	267.38	264.59	-	-
61	271.84	269.04	-	-
62	276.29	273.50	-	-
63	280.75	277.96	-	-
64	285.21	282.41	-	-
65	289.66	286.87	-	-
66	294.12	291.33	-	-
67	298.57	295.78	-	-
68	303.03	300.24	-	-
69	307.49	304.69	-	-
70	311.94	309.15	-	-
72	320.86	318.07	-	-
96	427.81	425.02	-	-
100	445.63	425.84	-	-
112	499.11	496.32	-	-
120	534.76	531.97	-	-

PD: 124.78
OD: 121.98
FLANGE ID: 106
FLANGE OD: 137

PD: 129.23
OD: 126.44
FLANGE ID: 111
FLANGE OD: 141

PD: 133.69
OD: 130.90
FLANGE ID: 115
FLANGE OD: 146

PD: 138.15
OD: 135.36
FLANGE ID: -
FLANGE OD: -

PD: 142.60
OD: 139.81
FLANGE ID: 123
FLANGE OD: 155

PD: 147.06
OD: 144.27
FLANGE ID: -
FLANGE OD: -

PD: 151.52
OD: 148.27
FLANGE ID: 132
FLANGE OD: 164

PD: 155.97
OD: 153.18
FLANGE ID: -
FLANGE OD: -

PD: 160.43
OD: 157.63
FLANGE ID: 140
FLANGE OD: 173

PD: 164.88
OD: 162.09
FLANGE ID: -
FLANGE OD: -

PD: 169.34
OD: 165.55
FLANGE ID: 149
FLANGE OD: 182

PD: 173.80
OD: 171.01
FLANGE ID: -
FLANGE OD: -

PD: 178.25
OD: 175.46
FLANGE ID: -
FLANGE OD: -

PD: 182.71
OD: 179.92
FLANGE ID: -
FLANGE OD: -

PD: 187.17
OD: 184.37
FLANGE ID: -
FLANGE OD: -

PD: 191.62
OD: 188.83
FLANGE ID: -
FLANGE OD: -

PD: 196.08
OD: 193.29
FLANGE ID: -
FLANGE OD: -

PD: 200.54
OD: 197.75
FLANGE ID: -
FLANGE OD: -

PD: 204.99
OD: 202.20
FLANGE ID: -
FLANGE OD: -

PD: 209.45
OD: 206.66
FLANGE ID: -
FLANGE OD: -

PD: 213.90
OD: 211.11
FLANGE ID: -
FLANGE OD: -

PD: 218.36
OD: 215.57
FLANGE ID: -
FLANGE OD: -

PD: 222.82
OD: 220.02
FLANGE ID: -
FLANGE OD: -

PD: 227.27
OD: 224.48
FLANGE ID: -
FLANGE OD: -

PD: 231.73
OD: 228.94
FLANGE ID: -
FLANGE OD: -

PD: 236.19
OD: 233.39
FLANGE ID: -
FLANGE OD: -

PD: 240.64
OD: 237.85
FLANGE ID: -
FLANGE OD: -

PD: 245.10
OD: 242.31
FLANGE ID: -
FLANGE OD: -

PD: 249.55
OD: 246.76
FLANGE ID: -
FLANGE OD: -

PD: 254.01
OD: 251.22
FLANGE ID: -
FLANGE OD: -

PD: 258.47
OD: 255.68
FLANGE ID: -
FLANGE OD: -

PD: 262.92
OD: 260.13
FLANGE ID: -
FLANGE OD: -

PD: 267.38
OD: 264.59
FLANGE ID: -
FLANGE OD: -

PD: 271.84
OD: 269.04
FLANGE ID: -
FLANGE OD: -

PD: 276.29
OD: 273.50
FLANGE ID: -
FLANGE OD: -

PD: 280.75
OD: 277.96
FLANGE ID: -
FLANGE OD: -

PD: 285.21
OD: 282.41
FLANGE ID: -
FLANGE OD: -

PD: 289.66
OD: 286.87
FLANGE ID: -
FLANGE OD: -

PD: 294.12
OD: 291.33
FLANGE ID: -
FLANGE OD: -

PD: 298.57
OD: 295.78
FLANGE ID: -
FLANGE OD: -

PD: 303.03
OD: 300.24
FLANGE ID: -
FLANGE OD: -

PD: 307.49
OD: 304.69
FLANGE ID: -
FLANGE OD: -

PD: 311.94
OD: 309.15
FLANGE ID: -
FLANGE OD: -

PD: 320.86
OD: 318.07
FLANGE ID: -
FLANGE OD: -

PD: 427.81
OD: 425.02
FLANGE ID: -
FLANGE OD: -

100

PD: 445.63
OD: 425.84
FLANGE ID: -
FLANGE OD: -

112

PD: 499.11
OD: 496.32
FLANGE ID: -
FLANGE OD: -

120

PD: 534.76
OD: 531.97
FLANGE ID: -
FLANGE OD: -

총 48개 · 원본 규격표 전사

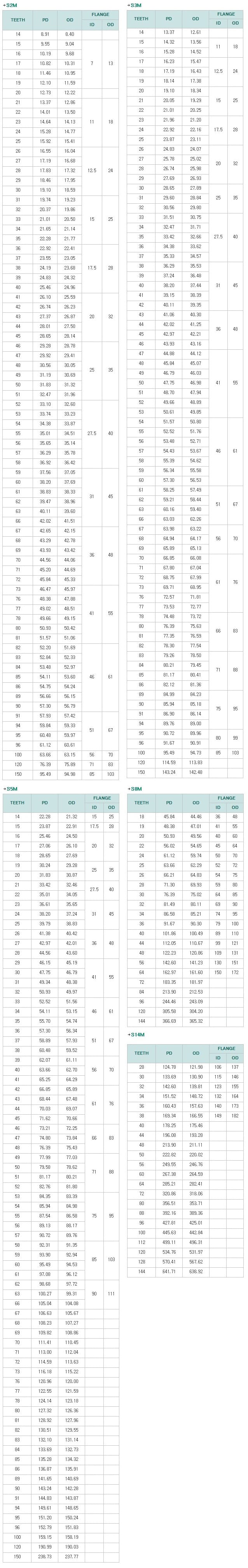

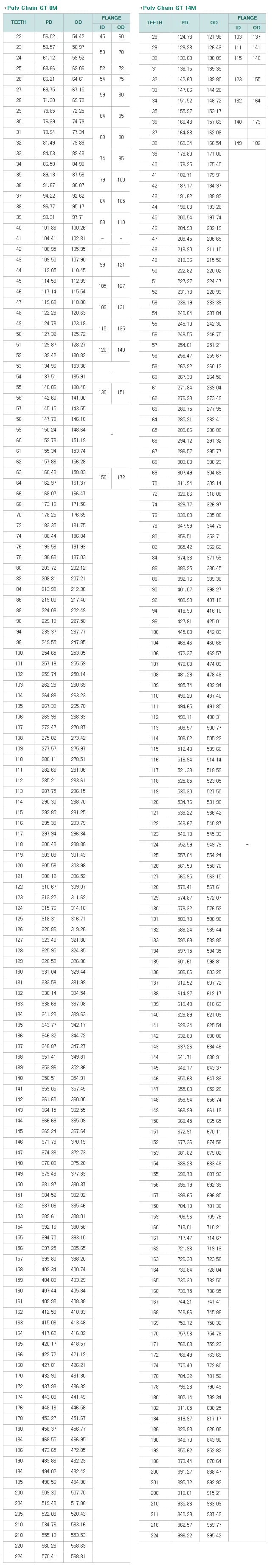

Poly Chain GT 8M

치수 mm

TEETH⇅	PD⇅	OD⇅	FLANGE ID⇅	FLANGE OD⇅
22	56.02	54.42	45	60
23	58.57	56.97	50	70
24	61.12	59.52	50	70
25	63.66	62.06	52	72
26	66.21	64.61	54	75
27	68.75	67.15	59	80
28	71.30	69.70	59	80
29	73.85	72.25	64	85
30	76.39	74.79	64	85
31	78.94	77.34	69	90
32	81.49	79.89	69	90
33	84.03	82.43	74	95
34	86.58	84.98	74	95
35	89.13	87.53	79	100
36	91.67	90.07	79	100
37	94.22	92.62	84	105
38	96.77	95.17	84	105
39	99.31	97.71	89	110
40	101.86	100.26	89	110
41	104.41	102.81	-	-
42	106.95	105.35	-	-
43	109.50	107.90	99	121
44	112.05	110.45	99	121
45	114.59	112.99	105	127
46	117.14	115.54	105	127
47	119.68	118.08	109	131
48	122.23	120.63	109	131
49	124.78	123.18	115	135
50	127.32	125.72	115	135
51	129.87	128.27	120	140
52	132.42	130.82	120	140
53	134.96	133.36	-	-
54	137.51	135.91	-	-
55	140.06	138.46	130	151
56	142.60	141.00	130	151
57	145.15	143.55	-	-
58	147.70	146.10	-	-
59	150.24	148.64	-	-
60	152.79	151.19	-	-
61	155.34	153.74	-	-
62	157.88	156.28	-	-
63	160.43	158.83	150	172
64	162.97	161.37	150	172
66	168.07	166.47	–	–
68	173.16	171.56	–	–
70	178.25	176.65	–	–
72	183.35	181.75	–	–
74	188.44	186.84	–	–
76	193.53	191.93	–	–
78	198.63	197.03	–	–
80	203.72	202.12	–	–
82	208.81	207.21	–	–
84	213.90	212.30	–	–
86	219.00	217.40	–	–
88	224.09	222.49	–	–
90	229.18	227.58	–	–
94	239.37	237.77	–	–
98	249.55	247.95	–	–
100	254.65	253.05	–	–
101	257.19	255.59	–	–
102	259.74	258.14	–	–
103	262.29	260.69	–	–
104	264.83	263.23	–	–
105	267.38	265.78	–	–
106	269.93	268.33	–	–
107	272.47	270.87	–	–
108	275.02	273.42	–	–
109	277.57	275.97	–	–
110	280.11	278.51	–	–
111	282.66	281.06	–	–
112	285.21	283.61	–	–
113	287.75	286.15	–	–
114	290.30	288.70	–	–
115	292.85	291.25	–	–
116	295.39	293.79	–	–
117	297.94	296.34	–	–
118	300.48	298.88	–	–
119	303.03	301.43	–	–
120	305.58	303.98	–	–
121	308.12	306.52	–	–
122	310.67	309.07	–	–
123	313.22	311.62	–	–
124	315.76	314.16	–	–
125	318.31	316.71	–	–
126	320.86	319.26	–	–
127	323.40	321.80	–	–
128	325.95	324.35	–	–
129	328.50	326.90	–	–
130	331.04	329.44	–	–
131	333.59	331.99	–	–
132	336.14	334.54	–	–
133	338.68	337.08	–	–
134	341.23	339.63	–	–
135	343.77	342.17	–	–
136	346.32	344.72	–	–
137	348.87	347.27	–	–
138	351.41	349.81	–	–
139	353.96	352.36	–	–
140	356.51	354.91	–	–
141	359.05	357.45	–	–
142	361.60	360.00	–	–
143	364.15	362.55	–	–
144	366.69	365.09	–	–
145	369.24	367.64	–	–
146	371.79	370.19	–	–
147	374.33	372.73	–	–
148	376.88	375.28	–	–
149	379.43	377.83	–	–
150	381.97	380.37	–	–
151	384.52	382.92	–	–
152	387.06	385.46	–	–
153	389.61	388.01	–	–
154	392.16	390.56	–	–
155	394.70	393.10	–	–
156	397.25	395.65	–	–
157	399.80	398.20	–	–
158	402.34	400.74	–	–
159	404.89	403.29	–	–
160	407.44	405.84	–	–
161	409.98	408.38	–	–
162	412.53	410.93	–	–
163	415.08	413.48	–	–
164	417.62	416.02	–	–
165	420.17	418.57	–	–
166	422.72	421.12	–	–
168	427.81	426.21	–	–
170	432.90	431.30	–	–
172	437.99	436.39	–	–
174	443.09	441.49	–	–
176	448.18	446.58	–	–
178	453.27	451.67	–	–
180	458.37	456.77	–	–
184	468.55	466.95	–	–
186	473.65	472.05	–	–
190	483.83	482.23	–	–
194	494.02	492.42	–	–
195	496.56	494.96	–	–
200	509.30	507.70	–	–
204	519.48	517.88	–	–
205	522.03	520.43	–	–
210	534.76	533.16	–	–
218	555.13	553.53	–	–
220	560.23	558.63	–	–
224	570.41	568.81	–	–

PD: 56.02
OD: 54.42
FLANGE ID: 45
FLANGE OD: 60

PD: 58.57
OD: 56.97
FLANGE ID: 50
FLANGE OD: 70

PD: 61.12
OD: 59.52
FLANGE ID: 50
FLANGE OD: 70

PD: 63.66
OD: 62.06
FLANGE ID: 52
FLANGE OD: 72

PD: 66.21
OD: 64.61
FLANGE ID: 54
FLANGE OD: 75

PD: 68.75
OD: 67.15
FLANGE ID: 59
FLANGE OD: 80

PD: 71.30
OD: 69.70
FLANGE ID: 59
FLANGE OD: 80

PD: 73.85
OD: 72.25
FLANGE ID: 64
FLANGE OD: 85

PD: 76.39
OD: 74.79
FLANGE ID: 64
FLANGE OD: 85

PD: 78.94
OD: 77.34
FLANGE ID: 69
FLANGE OD: 90

PD: 81.49
OD: 79.89
FLANGE ID: 69
FLANGE OD: 90

PD: 84.03
OD: 82.43
FLANGE ID: 74
FLANGE OD: 95

PD: 86.58
OD: 84.98
FLANGE ID: 74
FLANGE OD: 95

PD: 89.13
OD: 87.53
FLANGE ID: 79
FLANGE OD: 100

PD: 91.67
OD: 90.07
FLANGE ID: 79
FLANGE OD: 100

PD: 94.22
OD: 92.62
FLANGE ID: 84
FLANGE OD: 105

PD: 96.77
OD: 95.17
FLANGE ID: 84
FLANGE OD: 105

PD: 99.31
OD: 97.71
FLANGE ID: 89
FLANGE OD: 110

PD: 101.86
OD: 100.26
FLANGE ID: 89
FLANGE OD: 110

PD: 104.41
OD: 102.81
FLANGE ID: -
FLANGE OD: -

PD: 106.95
OD: 105.35
FLANGE ID: -
FLANGE OD: -

PD: 109.50
OD: 107.90
FLANGE ID: 99
FLANGE OD: 121

PD: 112.05
OD: 110.45
FLANGE ID: 99
FLANGE OD: 121

PD: 114.59
OD: 112.99
FLANGE ID: 105
FLANGE OD: 127

PD: 117.14
OD: 115.54
FLANGE ID: 105
FLANGE OD: 127

PD: 119.68
OD: 118.08
FLANGE ID: 109
FLANGE OD: 131

PD: 122.23
OD: 120.63
FLANGE ID: 109
FLANGE OD: 131

PD: 124.78
OD: 123.18
FLANGE ID: 115
FLANGE OD: 135

PD: 127.32
OD: 125.72
FLANGE ID: 115
FLANGE OD: 135

PD: 129.87
OD: 128.27
FLANGE ID: 120
FLANGE OD: 140

PD: 132.42
OD: 130.82
FLANGE ID: 120
FLANGE OD: 140

PD: 134.96
OD: 133.36
FLANGE ID: -
FLANGE OD: -

PD: 137.51
OD: 135.91
FLANGE ID: -
FLANGE OD: -

PD: 140.06
OD: 138.46
FLANGE ID: 130
FLANGE OD: 151

PD: 142.60
OD: 141.00
FLANGE ID: 130
FLANGE OD: 151

PD: 145.15
OD: 143.55
FLANGE ID: -
FLANGE OD: -

PD: 147.70
OD: 146.10
FLANGE ID: -
FLANGE OD: -

PD: 150.24
OD: 148.64
FLANGE ID: -
FLANGE OD: -

PD: 152.79
OD: 151.19
FLANGE ID: -
FLANGE OD: -

PD: 155.34
OD: 153.74
FLANGE ID: -
FLANGE OD: -

PD: 157.88
OD: 156.28
FLANGE ID: -
FLANGE OD: -

PD: 160.43
OD: 158.83
FLANGE ID: 150
FLANGE OD: 172

PD: 162.97
OD: 161.37
FLANGE ID: 150
FLANGE OD: 172

PD: 168.07
OD: 166.47
FLANGE ID: –
FLANGE OD: –

PD: 173.16
OD: 171.56
FLANGE ID: –
FLANGE OD: –

PD: 178.25
OD: 176.65
FLANGE ID: –
FLANGE OD: –

PD: 183.35
OD: 181.75
FLANGE ID: –
FLANGE OD: –

PD: 188.44
OD: 186.84
FLANGE ID: –
FLANGE OD: –

PD: 193.53
OD: 191.93
FLANGE ID: –
FLANGE OD: –

PD: 198.63
OD: 197.03
FLANGE ID: –
FLANGE OD: –

PD: 203.72
OD: 202.12
FLANGE ID: –
FLANGE OD: –

PD: 208.81
OD: 207.21
FLANGE ID: –
FLANGE OD: –

PD: 213.90
OD: 212.30
FLANGE ID: –
FLANGE OD: –

PD: 219.00
OD: 217.40
FLANGE ID: –
FLANGE OD: –

PD: 224.09
OD: 222.49
FLANGE ID: –
FLANGE OD: –

PD: 229.18
OD: 227.58
FLANGE ID: –
FLANGE OD: –

PD: 239.37
OD: 237.77
FLANGE ID: –
FLANGE OD: –

PD: 249.55
OD: 247.95
FLANGE ID: –
FLANGE OD: –

100

PD: 254.65
OD: 253.05
FLANGE ID: –
FLANGE OD: –

101

PD: 257.19
OD: 255.59
FLANGE ID: –
FLANGE OD: –

102

PD: 259.74
OD: 258.14
FLANGE ID: –
FLANGE OD: –

103

PD: 262.29
OD: 260.69
FLANGE ID: –
FLANGE OD: –

104

PD: 264.83
OD: 263.23
FLANGE ID: –
FLANGE OD: –

105

PD: 267.38
OD: 265.78
FLANGE ID: –
FLANGE OD: –

106

PD: 269.93
OD: 268.33
FLANGE ID: –
FLANGE OD: –

107

PD: 272.47
OD: 270.87
FLANGE ID: –
FLANGE OD: –

108

PD: 275.02
OD: 273.42
FLANGE ID: –
FLANGE OD: –

109

PD: 277.57
OD: 275.97
FLANGE ID: –
FLANGE OD: –

110

PD: 280.11
OD: 278.51
FLANGE ID: –
FLANGE OD: –

111

PD: 282.66
OD: 281.06
FLANGE ID: –
FLANGE OD: –

112

PD: 285.21
OD: 283.61
FLANGE ID: –
FLANGE OD: –

113

PD: 287.75
OD: 286.15
FLANGE ID: –
FLANGE OD: –

114

PD: 290.30
OD: 288.70
FLANGE ID: –
FLANGE OD: –

115

PD: 292.85
OD: 291.25
FLANGE ID: –
FLANGE OD: –

116

PD: 295.39
OD: 293.79
FLANGE ID: –
FLANGE OD: –

117

PD: 297.94
OD: 296.34
FLANGE ID: –
FLANGE OD: –

118

PD: 300.48
OD: 298.88
FLANGE ID: –
FLANGE OD: –

119

PD: 303.03
OD: 301.43
FLANGE ID: –
FLANGE OD: –

120

PD: 305.58
OD: 303.98
FLANGE ID: –
FLANGE OD: –

121

PD: 308.12
OD: 306.52
FLANGE ID: –
FLANGE OD: –

122

PD: 310.67
OD: 309.07
FLANGE ID: –
FLANGE OD: –

123

PD: 313.22
OD: 311.62
FLANGE ID: –
FLANGE OD: –

124

PD: 315.76
OD: 314.16
FLANGE ID: –
FLANGE OD: –

125

PD: 318.31
OD: 316.71
FLANGE ID: –
FLANGE OD: –

126

PD: 320.86
OD: 319.26
FLANGE ID: –
FLANGE OD: –

127

PD: 323.40
OD: 321.80
FLANGE ID: –
FLANGE OD: –

128

PD: 325.95
OD: 324.35
FLANGE ID: –
FLANGE OD: –

129

PD: 328.50
OD: 326.90
FLANGE ID: –
FLANGE OD: –

130

PD: 331.04
OD: 329.44
FLANGE ID: –
FLANGE OD: –

131

PD: 333.59
OD: 331.99
FLANGE ID: –
FLANGE OD: –

132

PD: 336.14
OD: 334.54
FLANGE ID: –
FLANGE OD: –

133

PD: 338.68
OD: 337.08
FLANGE ID: –
FLANGE OD: –

134

PD: 341.23
OD: 339.63
FLANGE ID: –
FLANGE OD: –

135

PD: 343.77
OD: 342.17
FLANGE ID: –
FLANGE OD: –

136

PD: 346.32
OD: 344.72
FLANGE ID: –
FLANGE OD: –

137

PD: 348.87
OD: 347.27
FLANGE ID: –
FLANGE OD: –

138

PD: 351.41
OD: 349.81
FLANGE ID: –
FLANGE OD: –

139

PD: 353.96
OD: 352.36
FLANGE ID: –
FLANGE OD: –

140

PD: 356.51
OD: 354.91
FLANGE ID: –
FLANGE OD: –

141

PD: 359.05
OD: 357.45
FLANGE ID: –
FLANGE OD: –

142

PD: 361.60
OD: 360.00
FLANGE ID: –
FLANGE OD: –

143

PD: 364.15
OD: 362.55
FLANGE ID: –
FLANGE OD: –

144

PD: 366.69
OD: 365.09
FLANGE ID: –
FLANGE OD: –

145

PD: 369.24
OD: 367.64
FLANGE ID: –
FLANGE OD: –

146

PD: 371.79
OD: 370.19
FLANGE ID: –
FLANGE OD: –

147

PD: 374.33
OD: 372.73
FLANGE ID: –
FLANGE OD: –

148

PD: 376.88
OD: 375.28
FLANGE ID: –
FLANGE OD: –

149

PD: 379.43
OD: 377.83
FLANGE ID: –
FLANGE OD: –

150

PD: 381.97
OD: 380.37
FLANGE ID: –
FLANGE OD: –

151

PD: 384.52
OD: 382.92
FLANGE ID: –
FLANGE OD: –

152

PD: 387.06
OD: 385.46
FLANGE ID: –
FLANGE OD: –

153

PD: 389.61
OD: 388.01
FLANGE ID: –
FLANGE OD: –

154

PD: 392.16
OD: 390.56
FLANGE ID: –
FLANGE OD: –

155

PD: 394.70
OD: 393.10
FLANGE ID: –
FLANGE OD: –

156

PD: 397.25
OD: 395.65
FLANGE ID: –
FLANGE OD: –

157

PD: 399.80
OD: 398.20
FLANGE ID: –
FLANGE OD: –

158

PD: 402.34
OD: 400.74
FLANGE ID: –
FLANGE OD: –

159

PD: 404.89
OD: 403.29
FLANGE ID: –
FLANGE OD: –

160

PD: 407.44
OD: 405.84
FLANGE ID: –
FLANGE OD: –

161

PD: 409.98
OD: 408.38
FLANGE ID: –
FLANGE OD: –

162

PD: 412.53
OD: 410.93
FLANGE ID: –
FLANGE OD: –

163

PD: 415.08
OD: 413.48
FLANGE ID: –
FLANGE OD: –

164

PD: 417.62
OD: 416.02
FLANGE ID: –
FLANGE OD: –

165

PD: 420.17
OD: 418.57
FLANGE ID: –
FLANGE OD: –

166

PD: 422.72
OD: 421.12
FLANGE ID: –
FLANGE OD: –

168

PD: 427.81
OD: 426.21
FLANGE ID: –
FLANGE OD: –

170

PD: 432.90
OD: 431.30
FLANGE ID: –
FLANGE OD: –

172

PD: 437.99
OD: 436.39
FLANGE ID: –
FLANGE OD: –

174

PD: 443.09
OD: 441.49
FLANGE ID: –
FLANGE OD: –

176

PD: 448.18
OD: 446.58
FLANGE ID: –
FLANGE OD: –

178

PD: 453.27
OD: 451.67
FLANGE ID: –
FLANGE OD: –

180

PD: 458.37
OD: 456.77
FLANGE ID: –
FLANGE OD: –

184

PD: 468.55
OD: 466.95
FLANGE ID: –
FLANGE OD: –

186

PD: 473.65
OD: 472.05
FLANGE ID: –
FLANGE OD: –

190

PD: 483.83
OD: 482.23
FLANGE ID: –
FLANGE OD: –

194

PD: 494.02
OD: 492.42
FLANGE ID: –
FLANGE OD: –

195

PD: 496.56
OD: 494.96
FLANGE ID: –
FLANGE OD: –

200

PD: 509.30
OD: 507.70
FLANGE ID: –
FLANGE OD: –

204

PD: 519.48
OD: 517.88
FLANGE ID: –
FLANGE OD: –

205

PD: 522.03
OD: 520.43
FLANGE ID: –
FLANGE OD: –

210

PD: 534.76
OD: 533.16
FLANGE ID: –
FLANGE OD: –

218

PD: 555.13
OD: 553.53
FLANGE ID: –
FLANGE OD: –

220

PD: 560.23
OD: 558.63
FLANGE ID: –
FLANGE OD: –

224

PD: 570.41
OD: 568.81
FLANGE ID: –
FLANGE OD: –

총 144개 · 원본 규격표 전사

Poly Chain GT 14M

치수 mm

TEETH⇅	PD⇅	OD⇅	FLANGE ID⇅	FLANGE OD⇅
28	124.78	121.98	103	137
29	129.23	126.43	111	141
30	133.69	130.89	115	146
31	138.15	135.35	–	–
32	142.60	139.80	123	155
33	147.06	144.26	–	–
34	151.52	148.72	132	164
35	155.97	153.17	–	–
36	160.43	157.63	140	173
37	164.88	162.08	–	–
38	169.34	166.54	149	182
39	173.80	171.00	-	-
40	178.25	175.45	-	-
41	182.71	179.91	-	-
42	187.17	184.37	-	-
43	191.62	188.82	-	-
44	196.08	193.28	-	-
45	200.54	197.74	-	-
46	204.99	202.19	-	-
47	209.45	206.65	-	-
48	213.90	211.10	-	-
49	218.36	215.56	-	-
50	222.82	220.02	-	-
51	227.27	224.47	-	-
52	231.73	228.93	-	-
53	236.19	233.39	-	-
54	240.64	237.84	-	-
55	245.10	242.30	-	-
56	249.55	246.75	-	-
57	254.01	251.21	-	-
58	258.47	255.67	-	-
59	262.92	260.12	-	-
60	267.38	264.58	-	-
61	271.84	269.04	-	-
62	276.29	273.49	-	-
63	280.75	277.95	-	-
64	285.21	282.41	-	-
65	289.66	286.86	-	-
66	294.12	291.32	-	-
67	298.57	295.77	-	-
68	303.03	300.23	-	-
69	307.49	304.69	-	-
70	311.94	309.14	-	-
72	320.86	318.06	-	-
74	329.77	326.97	-	-
76	338.68	335.88	-	-
78	347.59	344.79	-	-
80	356.51	353.71	-	-
82	365.42	362.62	-	-
84	374.33	371.53	-	-
86	383.25	380.45	-	-
88	392.16	389.36	-	-
90	401.07	398.27	-	-
92	409.98	407.18	-	-
94	418.90	416.10	-	-
96	427.81	425.01	-	-
100	445.63	442.83	-	-
104	463.46	460.66	-	-
106	472.37	469.57	-	-
107	476.83	474.03	-	-
108	481.28	478.48	-	-
109	485.74	482.94	-	-
110	490.20	487.40	-	-
111	494.65	491.85	-	-
112	499.11	496.31	-	-
113	503.57	500.77	-	-
114	508.02	505.22	-	-
115	512.48	509.68	-	-
116	516.94	514.14	-	-
117	521.39	518.59	-	-
118	525.85	523.05	-	-
119	530.30	527.50	-	-
120	534.76	531.96	-	-
121	539.22	536.42	-	-
122	543.67	540.87	-	-
123	548.13	545.33	-	-
124	552.59	549.79	-	-
125	557.04	554.24	-	-
126	561.50	558.70	-	-
127	565.95	563.15	-	-
128	570.41	567.61	-	-
129	574.87	572.07	-	-
130	579.32	576.52	-	-
131	583.78	580.98	-	-
132	588.24	585.44	-	-
133	592.69	589.89	-	-
134	597.15	594.35	-	-
135	601.61	598.81	-	-
136	606.06	603.26	-	-
137	610.52	607.72	-	-
138	614.97	612.17	-	-
139	619.43	616.63	-	-
140	623.89	621.09	-	-
141	628.34	625.54	-	-
142	632.80	630.00	-	-
143	637.26	634.46	-	-
144	641.71	638.91	-	-
145	646.17	643.37	-	-
146	650.63	647.83	-	-
147	655.08	652.28	-	-
148	659.54	656.74	-	-
149	663.99	661.19	-	-
150	668.45	665.65	-	-
151	672.91	670.11	-	-
152	677.36	674.56	-	-
153	681.82	679.02	-	-
154	686.28	683.48	-	-
155	690.73	687.93	-	-
156	695.19	692.39	-	-
157	699.65	696.85	-	-
158	704.10	701.30	-	-
159	708.56	705.76	-	-
160	713.01	710.21	-	-
161	717.47	714.67	-	-
162	721.93	719.13	-	-
163	726.38	723.58	-	-
164	730.84	728.04	-	-
165	735.30	732.50	-	-
166	739.75	736.95	-	-
167	744.21	741.41	-	-
168	748.66	745.86	-	-
169	753.12	750.32	-	-
170	757.58	754.78	-	-
171	762.03	759.23	-	-
172	766.49	763.69	-	-
174	775.40	772.60	-	-
176	784.32	781.52	-	-
178	793.23	790.43	-	-
180	802.14	799.34	-	-
182	811.05	808.25	-	-
184	819.97	817.17	-	-
186	828.88	826.08	-	-
190	846.70	843.90	-	-
192	855.62	852.82	-	-
196	873.44	870.64	-	-
200	891.27	888.47	-	-
201	895.72	892.92	-	-
206	918.01	915.21	-	-
210	935.83	933.03	-	-
211	940.29	937.49	-	-
216	962.57	959.77	-	-
224	998.22	995.42	-	-

PD: 124.78
OD: 121.98
FLANGE ID: 103
FLANGE OD: 137

PD: 129.23
OD: 126.43
FLANGE ID: 111
FLANGE OD: 141

PD: 133.69
OD: 130.89
FLANGE ID: 115
FLANGE OD: 146

PD: 138.15
OD: 135.35
FLANGE ID: –
FLANGE OD: –

PD: 142.60
OD: 139.80
FLANGE ID: 123
FLANGE OD: 155

PD: 147.06
OD: 144.26
FLANGE ID: –
FLANGE OD: –

PD: 151.52
OD: 148.72
FLANGE ID: 132
FLANGE OD: 164

PD: 155.97
OD: 153.17
FLANGE ID: –
FLANGE OD: –

PD: 160.43
OD: 157.63
FLANGE ID: 140
FLANGE OD: 173

PD: 164.88
OD: 162.08
FLANGE ID: –
FLANGE OD: –

PD: 169.34
OD: 166.54
FLANGE ID: 149
FLANGE OD: 182

PD: 173.80
OD: 171.00
FLANGE ID: -
FLANGE OD: -

PD: 178.25
OD: 175.45
FLANGE ID: -
FLANGE OD: -

PD: 182.71
OD: 179.91
FLANGE ID: -
FLANGE OD: -

PD: 187.17
OD: 184.37
FLANGE ID: -
FLANGE OD: -

PD: 191.62
OD: 188.82
FLANGE ID: -
FLANGE OD: -

PD: 196.08
OD: 193.28
FLANGE ID: -
FLANGE OD: -

PD: 200.54
OD: 197.74
FLANGE ID: -
FLANGE OD: -

PD: 204.99
OD: 202.19
FLANGE ID: -
FLANGE OD: -

PD: 209.45
OD: 206.65
FLANGE ID: -
FLANGE OD: -

PD: 213.90
OD: 211.10
FLANGE ID: -
FLANGE OD: -

PD: 218.36
OD: 215.56
FLANGE ID: -
FLANGE OD: -

PD: 222.82
OD: 220.02
FLANGE ID: -
FLANGE OD: -

PD: 227.27
OD: 224.47
FLANGE ID: -
FLANGE OD: -

PD: 231.73
OD: 228.93
FLANGE ID: -
FLANGE OD: -

PD: 236.19
OD: 233.39
FLANGE ID: -
FLANGE OD: -

PD: 240.64
OD: 237.84
FLANGE ID: -
FLANGE OD: -

PD: 245.10
OD: 242.30
FLANGE ID: -
FLANGE OD: -

PD: 249.55
OD: 246.75
FLANGE ID: -
FLANGE OD: -

PD: 254.01
OD: 251.21
FLANGE ID: -
FLANGE OD: -

PD: 258.47
OD: 255.67
FLANGE ID: -
FLANGE OD: -

PD: 262.92
OD: 260.12
FLANGE ID: -
FLANGE OD: -

PD: 267.38
OD: 264.58
FLANGE ID: -
FLANGE OD: -

PD: 271.84
OD: 269.04
FLANGE ID: -
FLANGE OD: -

PD: 276.29
OD: 273.49
FLANGE ID: -
FLANGE OD: -

PD: 280.75
OD: 277.95
FLANGE ID: -
FLANGE OD: -

PD: 285.21
OD: 282.41
FLANGE ID: -
FLANGE OD: -

PD: 289.66
OD: 286.86
FLANGE ID: -
FLANGE OD: -

PD: 294.12
OD: 291.32
FLANGE ID: -
FLANGE OD: -

PD: 298.57
OD: 295.77
FLANGE ID: -
FLANGE OD: -

PD: 303.03
OD: 300.23
FLANGE ID: -
FLANGE OD: -

PD: 307.49
OD: 304.69
FLANGE ID: -
FLANGE OD: -

PD: 311.94
OD: 309.14
FLANGE ID: -
FLANGE OD: -

PD: 320.86
OD: 318.06
FLANGE ID: -
FLANGE OD: -

PD: 329.77
OD: 326.97
FLANGE ID: -
FLANGE OD: -

PD: 338.68
OD: 335.88
FLANGE ID: -
FLANGE OD: -

PD: 347.59
OD: 344.79
FLANGE ID: -
FLANGE OD: -

PD: 356.51
OD: 353.71
FLANGE ID: -
FLANGE OD: -

PD: 365.42
OD: 362.62
FLANGE ID: -
FLANGE OD: -

PD: 374.33
OD: 371.53
FLANGE ID: -
FLANGE OD: -

PD: 383.25
OD: 380.45
FLANGE ID: -
FLANGE OD: -

PD: 392.16
OD: 389.36
FLANGE ID: -
FLANGE OD: -

PD: 401.07
OD: 398.27
FLANGE ID: -
FLANGE OD: -

PD: 409.98
OD: 407.18
FLANGE ID: -
FLANGE OD: -

PD: 418.90
OD: 416.10
FLANGE ID: -
FLANGE OD: -

PD: 427.81
OD: 425.01
FLANGE ID: -
FLANGE OD: -

100

PD: 445.63
OD: 442.83
FLANGE ID: -
FLANGE OD: -

104

PD: 463.46
OD: 460.66
FLANGE ID: -
FLANGE OD: -

106

PD: 472.37
OD: 469.57
FLANGE ID: -
FLANGE OD: -

107

PD: 476.83
OD: 474.03
FLANGE ID: -
FLANGE OD: -

108

PD: 481.28
OD: 478.48
FLANGE ID: -
FLANGE OD: -

109

PD: 485.74
OD: 482.94
FLANGE ID: -
FLANGE OD: -

110

PD: 490.20
OD: 487.40
FLANGE ID: -
FLANGE OD: -

111

PD: 494.65
OD: 491.85
FLANGE ID: -
FLANGE OD: -

112

PD: 499.11
OD: 496.31
FLANGE ID: -
FLANGE OD: -

113

PD: 503.57
OD: 500.77
FLANGE ID: -
FLANGE OD: -

114

PD: 508.02
OD: 505.22
FLANGE ID: -
FLANGE OD: -

115

PD: 512.48
OD: 509.68
FLANGE ID: -
FLANGE OD: -

116

PD: 516.94
OD: 514.14
FLANGE ID: -
FLANGE OD: -

117

PD: 521.39
OD: 518.59
FLANGE ID: -
FLANGE OD: -

118

PD: 525.85
OD: 523.05
FLANGE ID: -
FLANGE OD: -

119

PD: 530.30
OD: 527.50
FLANGE ID: -
FLANGE OD: -

120

PD: 534.76
OD: 531.96
FLANGE ID: -
FLANGE OD: -

121

PD: 539.22
OD: 536.42
FLANGE ID: -
FLANGE OD: -

122

PD: 543.67
OD: 540.87
FLANGE ID: -
FLANGE OD: -

123

PD: 548.13
OD: 545.33
FLANGE ID: -
FLANGE OD: -

124

PD: 552.59
OD: 549.79
FLANGE ID: -
FLANGE OD: -

125

PD: 557.04
OD: 554.24
FLANGE ID: -
FLANGE OD: -

126

PD: 561.50
OD: 558.70
FLANGE ID: -
FLANGE OD: -

127

PD: 565.95
OD: 563.15
FLANGE ID: -
FLANGE OD: -

128

PD: 570.41
OD: 567.61
FLANGE ID: -
FLANGE OD: -

129

PD: 574.87
OD: 572.07
FLANGE ID: -
FLANGE OD: -

130

PD: 579.32
OD: 576.52
FLANGE ID: -
FLANGE OD: -

131

PD: 583.78
OD: 580.98
FLANGE ID: -
FLANGE OD: -

132

PD: 588.24
OD: 585.44
FLANGE ID: -
FLANGE OD: -

133

PD: 592.69
OD: 589.89
FLANGE ID: -
FLANGE OD: -

134

PD: 597.15
OD: 594.35
FLANGE ID: -
FLANGE OD: -

135

PD: 601.61
OD: 598.81
FLANGE ID: -
FLANGE OD: -

136

PD: 606.06
OD: 603.26
FLANGE ID: -
FLANGE OD: -

137

PD: 610.52
OD: 607.72
FLANGE ID: -
FLANGE OD: -

138

PD: 614.97
OD: 612.17
FLANGE ID: -
FLANGE OD: -

139

PD: 619.43
OD: 616.63
FLANGE ID: -
FLANGE OD: -

140

PD: 623.89
OD: 621.09
FLANGE ID: -
FLANGE OD: -

141

PD: 628.34
OD: 625.54
FLANGE ID: -
FLANGE OD: -

142

PD: 632.80
OD: 630.00
FLANGE ID: -
FLANGE OD: -

143

PD: 637.26
OD: 634.46
FLANGE ID: -
FLANGE OD: -

144

PD: 641.71
OD: 638.91
FLANGE ID: -
FLANGE OD: -

145

PD: 646.17
OD: 643.37
FLANGE ID: -
FLANGE OD: -

146

PD: 650.63
OD: 647.83
FLANGE ID: -
FLANGE OD: -

147

PD: 655.08
OD: 652.28
FLANGE ID: -
FLANGE OD: -

148

PD: 659.54
OD: 656.74
FLANGE ID: -
FLANGE OD: -

149

PD: 663.99
OD: 661.19
FLANGE ID: -
FLANGE OD: -

150

PD: 668.45
OD: 665.65
FLANGE ID: -
FLANGE OD: -

151

PD: 672.91
OD: 670.11
FLANGE ID: -
FLANGE OD: -

152

PD: 677.36
OD: 674.56
FLANGE ID: -
FLANGE OD: -

153

PD: 681.82
OD: 679.02
FLANGE ID: -
FLANGE OD: -

154

PD: 686.28
OD: 683.48
FLANGE ID: -
FLANGE OD: -

155

PD: 690.73
OD: 687.93
FLANGE ID: -
FLANGE OD: -

156

PD: 695.19
OD: 692.39
FLANGE ID: -
FLANGE OD: -

157

PD: 699.65
OD: 696.85
FLANGE ID: -
FLANGE OD: -

158

PD: 704.10
OD: 701.30
FLANGE ID: -
FLANGE OD: -

159

PD: 708.56
OD: 705.76
FLANGE ID: -
FLANGE OD: -

160

PD: 713.01
OD: 710.21
FLANGE ID: -
FLANGE OD: -

161

PD: 717.47
OD: 714.67
FLANGE ID: -
FLANGE OD: -

162

PD: 721.93
OD: 719.13
FLANGE ID: -
FLANGE OD: -

163

PD: 726.38
OD: 723.58
FLANGE ID: -
FLANGE OD: -

164

PD: 730.84
OD: 728.04
FLANGE ID: -
FLANGE OD: -

165

PD: 735.30
OD: 732.50
FLANGE ID: -
FLANGE OD: -

166

PD: 739.75
OD: 736.95
FLANGE ID: -
FLANGE OD: -

167

PD: 744.21
OD: 741.41
FLANGE ID: -
FLANGE OD: -

168

PD: 748.66
OD: 745.86
FLANGE ID: -
FLANGE OD: -

169

PD: 753.12
OD: 750.32
FLANGE ID: -
FLANGE OD: -

170

PD: 757.58
OD: 754.78
FLANGE ID: -
FLANGE OD: -

171

PD: 762.03
OD: 759.23
FLANGE ID: -
FLANGE OD: -

172

PD: 766.49
OD: 763.69
FLANGE ID: -
FLANGE OD: -

174

PD: 775.40
OD: 772.60
FLANGE ID: -
FLANGE OD: -

176

PD: 784.32
OD: 781.52
FLANGE ID: -
FLANGE OD: -

178

PD: 793.23
OD: 790.43
FLANGE ID: -
FLANGE OD: -

180

PD: 802.14
OD: 799.34
FLANGE ID: -
FLANGE OD: -

182

PD: 811.05
OD: 808.25
FLANGE ID: -
FLANGE OD: -

184

PD: 819.97
OD: 817.17
FLANGE ID: -
FLANGE OD: -

186

PD: 828.88
OD: 826.08
FLANGE ID: -
FLANGE OD: -

190

PD: 846.70
OD: 843.90
FLANGE ID: -
FLANGE OD: -

192

PD: 855.62
OD: 852.82
FLANGE ID: -
FLANGE OD: -

196

PD: 873.44
OD: 870.64
FLANGE ID: -
FLANGE OD: -

200

PD: 891.27
OD: 888.47
FLANGE ID: -
FLANGE OD: -

201

PD: 895.72
OD: 892.92
FLANGE ID: -
FLANGE OD: -

206

PD: 918.01
OD: 915.21
FLANGE ID: -
FLANGE OD: -

210

PD: 935.83
OD: 933.03
FLANGE ID: -
FLANGE OD: -

211

PD: 940.29
OD: 937.49
FLANGE ID: -
FLANGE OD: -

216

PD: 962.57
OD: 959.77
FLANGE ID: -
FLANGE OD: -

224

PD: 998.22
OD: 995.42
FLANGE ID: -
FLANGE OD: -

총 142개 · 원본 규격표 전사

3GT

치수 mm

TEETH⇅	PD⇅	OD⇅	FLANGE ID⇅	FLANGE OD⇅
10	9.55	8.79	–	–
11	10.50	9.74	7	13
12	11.46	10.70	–	–
13	12.41	11.65	–	–
14	13.37	12.61	–	–
15	14.32	13.56	11	18
16	15.28	14.52	11	18
17	16.23	15.47	12.5	24
18	17.19	16.43	12.5	24
19	18.14	17.38	12.5	24
20	19.10	18.34	15	25
21	20.05	19.29	15	25
22	21.01	20.25	15	25
23	21.96	21.20	17.5	28
24	22.92	22.16	17.5	28
25	23.87	23.11	17.5	28
26	24.83	24.07	20	32
27	25.78	25.02	20	32
28	26.74	25.98	20	32
29	27.69	26.93	20	32
30	28.65	27.89	25	35
31	29.60	28.84	25	35
32	30.56	29.80	25	35
33	31.51	30.75	27.5	40
34	32.47	31.71	27.5	40
35	33.42	32.66	27.5	40
36	34.38	33.62	27.5	40
37	35.33	34.57	27.5	40
38	36.29	35.53	31	45
39	37.24	36.48	31	45
40	38.20	37.44	31	45
41	39.15	38.39	31	45
42	40.11	39.35	31	45
43	41.06	40.30	36	48
44	42.02	41.25	36	48
45	42.97	42.21	36	48
46	43.93	43.16	36	48
47	44.88	44.12	41	55
48	45.84	45.07	41	55
49	46.79	46.03	41	55
50	47.75	46.98	41	55
51	48.70	47.94	41	55
52	49.66	48.89	41	55
53	50.61	49.85	41	55
54	51.57	50.80	46	61
55	52.52	51.76	46	61
56	53.48	52.71	46	61
57	54.43	53.67	46	61
58	55.39	54.62	46	61
59	56.34	55.58	46	61
60	57.30	56.53	46	61
61	58.25	57.49	51	67
62	59.21	58.44	51	67
63	60.16	59.40	51	67
64	61.12	60.35	51	67
65	62.07	61.31	51	67
66	63.03	62.26	51	67
67	63.98	63.22	56	70
68	64.94	64.17	56	70
69	65.89	65.13	56	70
70	66.85	66.08	61	76
71	67.80	67.04	61	76
72	68.75	67.99	61	76
73	69.71	68.95	61	76
74	70.66	69.90	61	76
75	71.62	70.86	61	76
76	72.57	71.81	61	76
77	73.53	72.77	61	76
78	74.48	73.72	66	83
79	75.44	74.68	66	83
80	76.39	75.63	66	83
81	77.35	76.59	66	83
82	78.30	77.54	66	83
83	79.26	78.50	71	88
84	80.21	79.45	71	88
85	81.17	80.41	71	88
86	82.12	81.36	71	88
87	83.08	82.32	71	88
88	84.03	83.27	71	88
89	84.99	84.23	75	95
90	85.94	85.18	75	95
91	86.90	86.14	75	95
92	87.85	87.09	75	95
93	88.81	88.05	75	95
94	89.76	89.00	75	95
95	90.72	89.96	80	99
96	91.67	90.91	80	99
97	92.63	91.87	80	99
98	93.58	92.82	80	99
99	94.54	93.78	80	99
100	95.49	94.73	85	103
101	96.45	95.69	85	103
102	97.40	96.64	85	103
103	98.36	97.60	90	111
104	99.31	98.55	90	111
105	100.27	99.51	90	111
106	101.22	100.46	90	111
107	102.18	101.42	90	111
108	103.13	102.37	90	111
109	104.09	103.33	90	111
110	105.04	104.28	90	111
111	106.00	105.24	90	111
112	106.95	106.19	–	–
113	107.91	107.15	–	–
114	108.86	108.10	–	–
115	109.82	109.05	–	–
116	110.77	110.01	–	–
117	111.73	110.96	–	–
118	112.68	111.92	–	–
119	113.64	112.87	–	–
120	114.59	113.83	–	–
121	115.55	114.78	–	–
122	116.50	115.74	–	–
123	117.46	116.69	–	–
124	118.41	117.65	–	–
125	119.37	118.60	–	–
126	120.32	119.56	–	–
127	121.28	120.51	–	–
128	122.23	121.47	–	–
129	123.19	122.42	–	–
130	124.14	123.38	–	–
131	125.10	124.33	–	–
132	126.05	125.29	–	–
133	127.01	126.24	–	–
134	127.96	127.20	–	–
135	128.92	128.15	–	–
136	129.87	129.11	–	–
137	130.83	130.06	–	–
138	131.78	131.02	–	–
139	132.74	131.97	–	–
140	133.69	132.93	–	–
141	134.65	133.88	–	–
142	135.60	134.84	–	–
143	136.55	135.79	–	–
144	137.51	136.75	–	–
145	138.46	137.70	–	–
146	139.42	138.66	–	–
147	140.37	139.61	–	–
148	141.33	140.57	–	–
149	142.28	141.52	–	–
150	143.24	142.48	–	–

PD: 9.55
OD: 8.79
FLANGE ID: –
FLANGE OD: –

PD: 10.50
OD: 9.74
FLANGE ID: 7
FLANGE OD: 13

PD: 11.46
OD: 10.70
FLANGE ID: –
FLANGE OD: –

PD: 12.41
OD: 11.65
FLANGE ID: –
FLANGE OD: –

PD: 13.37
OD: 12.61
FLANGE ID: –
FLANGE OD: –

PD: 14.32
OD: 13.56
FLANGE ID: 11
FLANGE OD: 18

PD: 15.28
OD: 14.52
FLANGE ID: 11
FLANGE OD: 18

PD: 16.23
OD: 15.47
FLANGE ID: 12.5
FLANGE OD: 24

PD: 17.19
OD: 16.43
FLANGE ID: 12.5
FLANGE OD: 24

PD: 18.14
OD: 17.38
FLANGE ID: 12.5
FLANGE OD: 24

PD: 19.10
OD: 18.34
FLANGE ID: 15
FLANGE OD: 25

PD: 20.05
OD: 19.29
FLANGE ID: 15
FLANGE OD: 25

PD: 21.01
OD: 20.25
FLANGE ID: 15
FLANGE OD: 25

PD: 21.96
OD: 21.20
FLANGE ID: 17.5
FLANGE OD: 28

PD: 22.92
OD: 22.16
FLANGE ID: 17.5
FLANGE OD: 28

PD: 23.87
OD: 23.11
FLANGE ID: 17.5
FLANGE OD: 28

PD: 24.83
OD: 24.07
FLANGE ID: 20
FLANGE OD: 32

PD: 25.78
OD: 25.02
FLANGE ID: 20
FLANGE OD: 32

PD: 26.74
OD: 25.98
FLANGE ID: 20
FLANGE OD: 32

PD: 27.69
OD: 26.93
FLANGE ID: 20
FLANGE OD: 32

PD: 28.65
OD: 27.89
FLANGE ID: 25
FLANGE OD: 35

PD: 29.60
OD: 28.84
FLANGE ID: 25
FLANGE OD: 35

PD: 30.56
OD: 29.80
FLANGE ID: 25
FLANGE OD: 35

PD: 31.51
OD: 30.75
FLANGE ID: 27.5
FLANGE OD: 40

PD: 32.47
OD: 31.71
FLANGE ID: 27.5
FLANGE OD: 40

PD: 33.42
OD: 32.66
FLANGE ID: 27.5
FLANGE OD: 40

PD: 34.38
OD: 33.62
FLANGE ID: 27.5
FLANGE OD: 40

PD: 35.33
OD: 34.57
FLANGE ID: 27.5
FLANGE OD: 40

PD: 36.29
OD: 35.53
FLANGE ID: 31
FLANGE OD: 45

PD: 37.24
OD: 36.48
FLANGE ID: 31
FLANGE OD: 45

PD: 38.20
OD: 37.44
FLANGE ID: 31
FLANGE OD: 45

PD: 39.15
OD: 38.39
FLANGE ID: 31
FLANGE OD: 45

PD: 40.11
OD: 39.35
FLANGE ID: 31
FLANGE OD: 45

PD: 41.06
OD: 40.30
FLANGE ID: 36
FLANGE OD: 48

PD: 42.02
OD: 41.25
FLANGE ID: 36
FLANGE OD: 48

PD: 42.97
OD: 42.21
FLANGE ID: 36
FLANGE OD: 48

PD: 43.93
OD: 43.16
FLANGE ID: 36
FLANGE OD: 48

PD: 44.88
OD: 44.12
FLANGE ID: 41
FLANGE OD: 55

PD: 45.84
OD: 45.07
FLANGE ID: 41
FLANGE OD: 55

PD: 46.79
OD: 46.03
FLANGE ID: 41
FLANGE OD: 55

PD: 47.75
OD: 46.98
FLANGE ID: 41
FLANGE OD: 55

PD: 48.70
OD: 47.94
FLANGE ID: 41
FLANGE OD: 55

PD: 49.66
OD: 48.89
FLANGE ID: 41
FLANGE OD: 55

PD: 50.61
OD: 49.85
FLANGE ID: 41
FLANGE OD: 55

PD: 51.57
OD: 50.80
FLANGE ID: 46
FLANGE OD: 61

PD: 52.52
OD: 51.76
FLANGE ID: 46
FLANGE OD: 61

PD: 53.48
OD: 52.71
FLANGE ID: 46
FLANGE OD: 61

PD: 54.43
OD: 53.67
FLANGE ID: 46
FLANGE OD: 61

PD: 55.39
OD: 54.62
FLANGE ID: 46
FLANGE OD: 61

PD: 56.34
OD: 55.58
FLANGE ID: 46
FLANGE OD: 61

PD: 57.30
OD: 56.53
FLANGE ID: 46
FLANGE OD: 61

PD: 58.25
OD: 57.49
FLANGE ID: 51
FLANGE OD: 67

PD: 59.21
OD: 58.44
FLANGE ID: 51
FLANGE OD: 67

PD: 60.16
OD: 59.40
FLANGE ID: 51
FLANGE OD: 67

PD: 61.12
OD: 60.35
FLANGE ID: 51
FLANGE OD: 67

PD: 62.07
OD: 61.31
FLANGE ID: 51
FLANGE OD: 67

PD: 63.03
OD: 62.26
FLANGE ID: 51
FLANGE OD: 67

PD: 63.98
OD: 63.22
FLANGE ID: 56
FLANGE OD: 70

PD: 64.94
OD: 64.17
FLANGE ID: 56
FLANGE OD: 70

PD: 65.89
OD: 65.13
FLANGE ID: 56
FLANGE OD: 70

PD: 66.85
OD: 66.08
FLANGE ID: 61
FLANGE OD: 76

PD: 67.80
OD: 67.04
FLANGE ID: 61
FLANGE OD: 76

PD: 68.75
OD: 67.99
FLANGE ID: 61
FLANGE OD: 76

PD: 69.71
OD: 68.95
FLANGE ID: 61
FLANGE OD: 76

PD: 70.66
OD: 69.90
FLANGE ID: 61
FLANGE OD: 76

PD: 71.62
OD: 70.86
FLANGE ID: 61
FLANGE OD: 76

PD: 72.57
OD: 71.81
FLANGE ID: 61
FLANGE OD: 76

PD: 73.53
OD: 72.77
FLANGE ID: 61
FLANGE OD: 76

PD: 74.48
OD: 73.72
FLANGE ID: 66
FLANGE OD: 83

PD: 75.44
OD: 74.68
FLANGE ID: 66
FLANGE OD: 83

PD: 76.39
OD: 75.63
FLANGE ID: 66
FLANGE OD: 83

PD: 77.35
OD: 76.59
FLANGE ID: 66
FLANGE OD: 83

PD: 78.30
OD: 77.54
FLANGE ID: 66
FLANGE OD: 83

PD: 79.26
OD: 78.50
FLANGE ID: 71
FLANGE OD: 88

PD: 80.21
OD: 79.45
FLANGE ID: 71
FLANGE OD: 88

PD: 81.17
OD: 80.41
FLANGE ID: 71
FLANGE OD: 88

PD: 82.12
OD: 81.36
FLANGE ID: 71
FLANGE OD: 88

PD: 83.08
OD: 82.32
FLANGE ID: 71
FLANGE OD: 88

PD: 84.03
OD: 83.27
FLANGE ID: 71
FLANGE OD: 88

PD: 84.99
OD: 84.23
FLANGE ID: 75
FLANGE OD: 95

PD: 85.94
OD: 85.18
FLANGE ID: 75
FLANGE OD: 95

PD: 86.90
OD: 86.14
FLANGE ID: 75
FLANGE OD: 95

PD: 87.85
OD: 87.09
FLANGE ID: 75
FLANGE OD: 95

PD: 88.81
OD: 88.05
FLANGE ID: 75
FLANGE OD: 95

PD: 89.76
OD: 89.00
FLANGE ID: 75
FLANGE OD: 95

PD: 90.72
OD: 89.96
FLANGE ID: 80
FLANGE OD: 99

PD: 91.67
OD: 90.91
FLANGE ID: 80
FLANGE OD: 99

PD: 92.63
OD: 91.87
FLANGE ID: 80
FLANGE OD: 99

PD: 93.58
OD: 92.82
FLANGE ID: 80
FLANGE OD: 99

PD: 94.54
OD: 93.78
FLANGE ID: 80
FLANGE OD: 99

100

PD: 95.49
OD: 94.73
FLANGE ID: 85
FLANGE OD: 103

101

PD: 96.45
OD: 95.69
FLANGE ID: 85
FLANGE OD: 103

102

PD: 97.40
OD: 96.64
FLANGE ID: 85
FLANGE OD: 103

103

PD: 98.36
OD: 97.60
FLANGE ID: 90
FLANGE OD: 111

104

PD: 99.31
OD: 98.55
FLANGE ID: 90
FLANGE OD: 111

105

PD: 100.27
OD: 99.51
FLANGE ID: 90
FLANGE OD: 111

106

PD: 101.22
OD: 100.46
FLANGE ID: 90
FLANGE OD: 111

107

PD: 102.18
OD: 101.42
FLANGE ID: 90
FLANGE OD: 111

108

PD: 103.13
OD: 102.37
FLANGE ID: 90
FLANGE OD: 111

109

PD: 104.09
OD: 103.33
FLANGE ID: 90
FLANGE OD: 111

110

PD: 105.04
OD: 104.28
FLANGE ID: 90
FLANGE OD: 111

111

PD: 106.00
OD: 105.24
FLANGE ID: 90
FLANGE OD: 111

112

PD: 106.95
OD: 106.19
FLANGE ID: –
FLANGE OD: –

113

PD: 107.91
OD: 107.15
FLANGE ID: –
FLANGE OD: –

114

PD: 108.86
OD: 108.10
FLANGE ID: –
FLANGE OD: –

115

PD: 109.82
OD: 109.05
FLANGE ID: –
FLANGE OD: –

116

PD: 110.77
OD: 110.01
FLANGE ID: –
FLANGE OD: –

117

PD: 111.73
OD: 110.96
FLANGE ID: –
FLANGE OD: –

118

PD: 112.68
OD: 111.92
FLANGE ID: –
FLANGE OD: –

119

PD: 113.64
OD: 112.87
FLANGE ID: –
FLANGE OD: –

120

PD: 114.59
OD: 113.83
FLANGE ID: –
FLANGE OD: –

121

PD: 115.55
OD: 114.78
FLANGE ID: –
FLANGE OD: –

122

PD: 116.50
OD: 115.74
FLANGE ID: –
FLANGE OD: –

123

PD: 117.46
OD: 116.69
FLANGE ID: –
FLANGE OD: –

124

PD: 118.41
OD: 117.65
FLANGE ID: –
FLANGE OD: –

125

PD: 119.37
OD: 118.60
FLANGE ID: –
FLANGE OD: –

126

PD: 120.32
OD: 119.56
FLANGE ID: –
FLANGE OD: –

127

PD: 121.28
OD: 120.51
FLANGE ID: –
FLANGE OD: –

128

PD: 122.23
OD: 121.47
FLANGE ID: –
FLANGE OD: –

129

PD: 123.19
OD: 122.42
FLANGE ID: –
FLANGE OD: –

130

PD: 124.14
OD: 123.38
FLANGE ID: –
FLANGE OD: –

131

PD: 125.10
OD: 124.33
FLANGE ID: –
FLANGE OD: –

132

PD: 126.05
OD: 125.29
FLANGE ID: –
FLANGE OD: –

133

PD: 127.01
OD: 126.24
FLANGE ID: –
FLANGE OD: –

134

PD: 127.96
OD: 127.20
FLANGE ID: –
FLANGE OD: –

135

PD: 128.92
OD: 128.15
FLANGE ID: –
FLANGE OD: –

136

PD: 129.87
OD: 129.11
FLANGE ID: –
FLANGE OD: –

137

PD: 130.83
OD: 130.06
FLANGE ID: –
FLANGE OD: –

138

PD: 131.78
OD: 131.02
FLANGE ID: –
FLANGE OD: –

139

PD: 132.74
OD: 131.97
FLANGE ID: –
FLANGE OD: –

140

PD: 133.69
OD: 132.93
FLANGE ID: –
FLANGE OD: –

141

PD: 134.65
OD: 133.88
FLANGE ID: –
FLANGE OD: –

142

PD: 135.60
OD: 134.84
FLANGE ID: –
FLANGE OD: –

143

PD: 136.55
OD: 135.79
FLANGE ID: –
FLANGE OD: –

144

PD: 137.51
OD: 136.75
FLANGE ID: –
FLANGE OD: –

145

PD: 138.46
OD: 137.70
FLANGE ID: –
FLANGE OD: –

146

PD: 139.42
OD: 138.66
FLANGE ID: –
FLANGE OD: –

147

PD: 140.37
OD: 139.61
FLANGE ID: –
FLANGE OD: –

148

PD: 141.33
OD: 140.57
FLANGE ID: –
FLANGE OD: –

149

PD: 142.28
OD: 141.52
FLANGE ID: –
FLANGE OD: –

150

PD: 143.24
OD: 142.48
FLANGE ID: –
FLANGE OD: –

총 141개 · 원본 규격표 전사

5GT

치수 mm

TEETH⇅	PD⇅	OD⇅	FLANGE ID⇅	FLANGE OD⇅
14	22.28	21.14	15	25
15	23.87	22.73	17.5	28
16	25.46	24.32	20	32
17	27.06	25.91	20	32
18	28.65	27.50	20	32
19	30.24	29.10	25	35
20	31.83	30.69	25	35
21	33.42	32.28	27.5	40
22	35.01	33.87	27.5	40
23	36.61	35.46	31	45
24	38.20	37.05	31	45
25	39.79	38.65	31	45
26	41.38	40.24	36	48
27	42.97	41.83	36	48
28	44.56	43.42	36	48
29	46.15	45.01	41	55
30	47.75	46.60	41	55
31	49.34	48.20	41	55
32	50.93	49.79	41	55
33	52.52	51.38	46	61
34	54.11	52.97	46	61
35	55.70	54.56	46	61
36	57.30	56.15	51	67
37	58.89	57.74	51	67
38	60.48	59.34	51	67
39	62.07	60.93	56	70
40	63.66	62.52	56	70
41	65.25	64.11	56	70
42	66.85	65.70	61	76
43	68.44	67.29	61	76
44	70.03	68.89	61	76
45	71.62	70.48	61	76
46	73.21	72.07	66	83
47	74.80	73.66	66	83
48	76.39	75.25	66	83
49	77.99	76.84	71	88
50	79.58	78.43	71	88
51	81.17	80.03	71	88
52	82.76	81.62	71	88
53	84.35	83.21	75	95
54	85.94	84.80	75	95
55	87.54	86.39	75	95
56	89.13	87.98	75	95
57	90.72	89.58	75	95
58	92.31	91.17	85	103
59	93.90	92.76	85	103
60	95.49	94.35	85	103
61	97.08	95.94	85	103
62	98.68	97.53	90	111
63	100.27	99.12	90	111
64	101.86	100.72	90	111
65	103.45	102.31	90	111
66	105.04	103.90	90	111
67	106.63	105.49	90	111
68	108.23	107.08	100	119
69	109.82	108.67	100	119
70	111.41	110.27	100	119
71	113.00	111.86	100	119
72	114.59	113.45	105	127
73	116.18	115.04	105	127
74	117.77	116.63	105	127
75	119.37	118.22	109	131
76	120.96	119.81	109	131
77	122.55	121.41	109	131
78	124.14	123.00	115	135
79	125.73	124.59	115	135
80	127.32	126.18	115	135
81	128.92	127.77	120	140
82	130.51	129.36	120	140
83	132.10	130.96	120	140
84	133.69	132.55	120	140
85	135.28	134.14	120	140
86	136.87	135.73	130	151
87	138.46	137.32	130	151
88	140.06	138.91	130	151
89	141.65	140.50	130	151
90	143.24	142.10	130	151
91	144.83	143.69	130	151
92	146.42	145.28	130	151
93	148.01	146.87	–	–
94	149.61	148.46	–	–
95	151.20	150.05	–	–
96	152.79	151.65	–	–
97	154.38	153.24	–	–
98	155.97	154.83	–	–
99	157.56	156.42	–	–
100	159.15	158.01	–	–
101	160.75	159.60	–	–
102	162.34	161.20	–	–
103	163.93	162.79	–	–
104	165.52	164.38	–	–
105	167.11	165.97	–	–
106	168.70	167.56	–	–
107	170.30	169.15	–	–
108	171.89	170.74	–	–
109	173.48	172.34	–	–
110	175.07	173.93	–	–
111	176.66	175.52	–	–
112	178.25	177.11	–	–
113	179.85	178.70	–	–
114	181.44	180.29	–	–
115	183.03	181.89	–	–
116	184.62	183.48	–	–
117	186.21	185.07	–	–
118	187.80	186.66	–	–
119	189.39	188.25	–	–
120	190.99	189.84	–	–
121	192.58	191.43	–	–
122	194.17	193.03	–	–
123	195.76	194.62	–	–
124	197.35	196.21	–	–
125	198.94	197.80	–	–
126	200.54	199.39	–	–
127	202.13	200.98	–	–
128	203.72	202.58	–	–
129	205.31	204.17	–	–
130	206.90	205.76	–	–
131	208.49	207.35	–	–
132	210.08	208.94	–	–
133	211.68	210.53	–	–
134	213.27	212.12	–	–
135	214.86	213.72	–	–
136	216.45	215.31	–	–
137	218.04	216.90	–	–
138	219.63	218.49	–	–
139	221.23	220.08	–	–
140	222.82	221.67	–	–
141	224.41	223.27	–	–
142	226.00	224.86	–	–
143	227.59	226.45	–	–
144	229.18	228.04	–	–
145	230.77	229.63	–	–
146	232.37	231.22	–	–
147	233.96	232.81	–	–
148	235.55	234.41	–	–
149	237.14	236.00	–	–
150	238.73	237.59	–	–

PD: 22.28
OD: 21.14
FLANGE ID: 15
FLANGE OD: 25

PD: 23.87
OD: 22.73
FLANGE ID: 17.5
FLANGE OD: 28

PD: 25.46
OD: 24.32
FLANGE ID: 20
FLANGE OD: 32

PD: 27.06
OD: 25.91
FLANGE ID: 20
FLANGE OD: 32

PD: 28.65
OD: 27.50
FLANGE ID: 20
FLANGE OD: 32

PD: 30.24
OD: 29.10
FLANGE ID: 25
FLANGE OD: 35

PD: 31.83
OD: 30.69
FLANGE ID: 25
FLANGE OD: 35

PD: 33.42
OD: 32.28
FLANGE ID: 27.5
FLANGE OD: 40

PD: 35.01
OD: 33.87
FLANGE ID: 27.5
FLANGE OD: 40

PD: 36.61
OD: 35.46
FLANGE ID: 31
FLANGE OD: 45

PD: 38.20
OD: 37.05
FLANGE ID: 31
FLANGE OD: 45

PD: 39.79
OD: 38.65
FLANGE ID: 31
FLANGE OD: 45

PD: 41.38
OD: 40.24
FLANGE ID: 36
FLANGE OD: 48

PD: 42.97
OD: 41.83
FLANGE ID: 36
FLANGE OD: 48

PD: 44.56
OD: 43.42
FLANGE ID: 36
FLANGE OD: 48

PD: 46.15
OD: 45.01
FLANGE ID: 41
FLANGE OD: 55

PD: 47.75
OD: 46.60
FLANGE ID: 41
FLANGE OD: 55

PD: 49.34
OD: 48.20
FLANGE ID: 41
FLANGE OD: 55

PD: 50.93
OD: 49.79
FLANGE ID: 41
FLANGE OD: 55

PD: 52.52
OD: 51.38
FLANGE ID: 46
FLANGE OD: 61

PD: 54.11
OD: 52.97
FLANGE ID: 46
FLANGE OD: 61

PD: 55.70
OD: 54.56
FLANGE ID: 46
FLANGE OD: 61

PD: 57.30
OD: 56.15
FLANGE ID: 51
FLANGE OD: 67

PD: 58.89
OD: 57.74
FLANGE ID: 51
FLANGE OD: 67

PD: 60.48
OD: 59.34
FLANGE ID: 51
FLANGE OD: 67

PD: 62.07
OD: 60.93
FLANGE ID: 56
FLANGE OD: 70

PD: 63.66
OD: 62.52
FLANGE ID: 56
FLANGE OD: 70

PD: 65.25
OD: 64.11
FLANGE ID: 56
FLANGE OD: 70

PD: 66.85
OD: 65.70
FLANGE ID: 61
FLANGE OD: 76

PD: 68.44
OD: 67.29
FLANGE ID: 61
FLANGE OD: 76

PD: 70.03
OD: 68.89
FLANGE ID: 61
FLANGE OD: 76

PD: 71.62
OD: 70.48
FLANGE ID: 61
FLANGE OD: 76

PD: 73.21
OD: 72.07
FLANGE ID: 66
FLANGE OD: 83

PD: 74.80
OD: 73.66
FLANGE ID: 66
FLANGE OD: 83

PD: 76.39
OD: 75.25
FLANGE ID: 66
FLANGE OD: 83

PD: 77.99
OD: 76.84
FLANGE ID: 71
FLANGE OD: 88

PD: 79.58
OD: 78.43
FLANGE ID: 71
FLANGE OD: 88

PD: 81.17
OD: 80.03
FLANGE ID: 71
FLANGE OD: 88

PD: 82.76
OD: 81.62
FLANGE ID: 71
FLANGE OD: 88

PD: 84.35
OD: 83.21
FLANGE ID: 75
FLANGE OD: 95

PD: 85.94
OD: 84.80
FLANGE ID: 75
FLANGE OD: 95

PD: 87.54
OD: 86.39
FLANGE ID: 75
FLANGE OD: 95

PD: 89.13
OD: 87.98
FLANGE ID: 75
FLANGE OD: 95

PD: 90.72
OD: 89.58
FLANGE ID: 75
FLANGE OD: 95

PD: 92.31
OD: 91.17
FLANGE ID: 85
FLANGE OD: 103

PD: 93.90
OD: 92.76
FLANGE ID: 85
FLANGE OD: 103

PD: 95.49
OD: 94.35
FLANGE ID: 85
FLANGE OD: 103

PD: 97.08
OD: 95.94
FLANGE ID: 85
FLANGE OD: 103

PD: 98.68
OD: 97.53
FLANGE ID: 90
FLANGE OD: 111

PD: 100.27
OD: 99.12
FLANGE ID: 90
FLANGE OD: 111

PD: 101.86
OD: 100.72
FLANGE ID: 90
FLANGE OD: 111

PD: 103.45
OD: 102.31
FLANGE ID: 90
FLANGE OD: 111

PD: 105.04
OD: 103.90
FLANGE ID: 90
FLANGE OD: 111

PD: 106.63
OD: 105.49
FLANGE ID: 90
FLANGE OD: 111

PD: 108.23
OD: 107.08
FLANGE ID: 100
FLANGE OD: 119

PD: 109.82
OD: 108.67
FLANGE ID: 100
FLANGE OD: 119

PD: 111.41
OD: 110.27
FLANGE ID: 100
FLANGE OD: 119

PD: 113.00
OD: 111.86
FLANGE ID: 100
FLANGE OD: 119

PD: 114.59
OD: 113.45
FLANGE ID: 105
FLANGE OD: 127

PD: 116.18
OD: 115.04
FLANGE ID: 105
FLANGE OD: 127

PD: 117.77
OD: 116.63
FLANGE ID: 105
FLANGE OD: 127

PD: 119.37
OD: 118.22
FLANGE ID: 109
FLANGE OD: 131

PD: 120.96
OD: 119.81
FLANGE ID: 109
FLANGE OD: 131

PD: 122.55
OD: 121.41
FLANGE ID: 109
FLANGE OD: 131

PD: 124.14
OD: 123.00
FLANGE ID: 115
FLANGE OD: 135

PD: 125.73
OD: 124.59
FLANGE ID: 115
FLANGE OD: 135

PD: 127.32
OD: 126.18
FLANGE ID: 115
FLANGE OD: 135

PD: 128.92
OD: 127.77
FLANGE ID: 120
FLANGE OD: 140

PD: 130.51
OD: 129.36
FLANGE ID: 120
FLANGE OD: 140

PD: 132.10
OD: 130.96
FLANGE ID: 120
FLANGE OD: 140

PD: 133.69
OD: 132.55
FLANGE ID: 120
FLANGE OD: 140

PD: 135.28
OD: 134.14
FLANGE ID: 120
FLANGE OD: 140

PD: 136.87
OD: 135.73
FLANGE ID: 130
FLANGE OD: 151

PD: 138.46
OD: 137.32
FLANGE ID: 130
FLANGE OD: 151

PD: 140.06
OD: 138.91
FLANGE ID: 130
FLANGE OD: 151

PD: 141.65
OD: 140.50
FLANGE ID: 130
FLANGE OD: 151

PD: 143.24
OD: 142.10
FLANGE ID: 130
FLANGE OD: 151

PD: 144.83
OD: 143.69
FLANGE ID: 130
FLANGE OD: 151

PD: 146.42
OD: 145.28
FLANGE ID: 130
FLANGE OD: 151

PD: 148.01
OD: 146.87
FLANGE ID: –
FLANGE OD: –

PD: 149.61
OD: 148.46
FLANGE ID: –
FLANGE OD: –

PD: 151.20
OD: 150.05
FLANGE ID: –
FLANGE OD: –

PD: 152.79
OD: 151.65
FLANGE ID: –
FLANGE OD: –

PD: 154.38
OD: 153.24
FLANGE ID: –
FLANGE OD: –

PD: 155.97
OD: 154.83
FLANGE ID: –
FLANGE OD: –

PD: 157.56
OD: 156.42
FLANGE ID: –
FLANGE OD: –

100

PD: 159.15
OD: 158.01
FLANGE ID: –
FLANGE OD: –

101

PD: 160.75
OD: 159.60
FLANGE ID: –
FLANGE OD: –

102

PD: 162.34
OD: 161.20
FLANGE ID: –
FLANGE OD: –

103

PD: 163.93
OD: 162.79
FLANGE ID: –
FLANGE OD: –

104

PD: 165.52
OD: 164.38
FLANGE ID: –
FLANGE OD: –

105

PD: 167.11
OD: 165.97
FLANGE ID: –
FLANGE OD: –

106

PD: 168.70
OD: 167.56
FLANGE ID: –
FLANGE OD: –

107

PD: 170.30
OD: 169.15
FLANGE ID: –
FLANGE OD: –

108

PD: 171.89
OD: 170.74
FLANGE ID: –
FLANGE OD: –

109

PD: 173.48
OD: 172.34
FLANGE ID: –
FLANGE OD: –

110

PD: 175.07
OD: 173.93
FLANGE ID: –
FLANGE OD: –

111

PD: 176.66
OD: 175.52
FLANGE ID: –
FLANGE OD: –

112

PD: 178.25
OD: 177.11
FLANGE ID: –
FLANGE OD: –

113

PD: 179.85
OD: 178.70
FLANGE ID: –
FLANGE OD: –

114

PD: 181.44
OD: 180.29
FLANGE ID: –
FLANGE OD: –

115

PD: 183.03
OD: 181.89
FLANGE ID: –
FLANGE OD: –

116

PD: 184.62
OD: 183.48
FLANGE ID: –
FLANGE OD: –

117

PD: 186.21
OD: 185.07
FLANGE ID: –
FLANGE OD: –

118

PD: 187.80
OD: 186.66
FLANGE ID: –
FLANGE OD: –

119

PD: 189.39
OD: 188.25
FLANGE ID: –
FLANGE OD: –

120

PD: 190.99
OD: 189.84
FLANGE ID: –
FLANGE OD: –

121

PD: 192.58
OD: 191.43
FLANGE ID: –
FLANGE OD: –

122

PD: 194.17
OD: 193.03
FLANGE ID: –
FLANGE OD: –

123

PD: 195.76
OD: 194.62
FLANGE ID: –
FLANGE OD: –

124

PD: 197.35
OD: 196.21
FLANGE ID: –
FLANGE OD: –

125

PD: 198.94
OD: 197.80
FLANGE ID: –
FLANGE OD: –

126

PD: 200.54
OD: 199.39
FLANGE ID: –
FLANGE OD: –

127

PD: 202.13
OD: 200.98
FLANGE ID: –
FLANGE OD: –

128

PD: 203.72
OD: 202.58
FLANGE ID: –
FLANGE OD: –

129

PD: 205.31
OD: 204.17
FLANGE ID: –
FLANGE OD: –

130

PD: 206.90
OD: 205.76
FLANGE ID: –
FLANGE OD: –

131

PD: 208.49
OD: 207.35
FLANGE ID: –
FLANGE OD: –

132

PD: 210.08
OD: 208.94
FLANGE ID: –
FLANGE OD: –

133

PD: 211.68
OD: 210.53
FLANGE ID: –
FLANGE OD: –

134

PD: 213.27
OD: 212.12
FLANGE ID: –
FLANGE OD: –

135

PD: 214.86
OD: 213.72
FLANGE ID: –
FLANGE OD: –

136

PD: 216.45
OD: 215.31
FLANGE ID: –
FLANGE OD: –

137

PD: 218.04
OD: 216.90
FLANGE ID: –
FLANGE OD: –

138

PD: 219.63
OD: 218.49
FLANGE ID: –
FLANGE OD: –

139

PD: 221.23
OD: 220.08
FLANGE ID: –
FLANGE OD: –

140

PD: 222.82
OD: 221.67
FLANGE ID: –
FLANGE OD: –

141

PD: 224.41
OD: 223.27
FLANGE ID: –
FLANGE OD: –

142

PD: 226.00
OD: 224.86
FLANGE ID: –
FLANGE OD: –

143

PD: 227.59
OD: 226.45
FLANGE ID: –
FLANGE OD: –

144

PD: 229.18
OD: 228.04
FLANGE ID: –
FLANGE OD: –

145

PD: 230.77
OD: 229.63
FLANGE ID: –
FLANGE OD: –

146

PD: 232.37
OD: 231.22
FLANGE ID: –
FLANGE OD: –

147

PD: 233.96
OD: 232.81
FLANGE ID: –
FLANGE OD: –

148

PD: 235.55
OD: 234.41
FLANGE ID: –
FLANGE OD: –

149

PD: 237.14
OD: 236.00
FLANGE ID: –
FLANGE OD: –

150

PD: 238.73
OD: 237.59
FLANGE ID: –
FLANGE OD: –

총 137개 · 원본 규격표 전사

8YU

치수 mm

TEETH⇅	PD⇅	OD⇅	FLANGE ID⇅	FLANGE OD⇅
20	50.93	49.56	40	60
21	53.48	52.10	45	64
22	56.02	54.65	45	64
23	58.57	57.20	50	70
24	61.12	59.74	50	70
25	63.66	62.29	52	72
26	66.21	64.84	54	75
27	68.75	67.38	59	80
28	71.30	69.93	59	80
29	73.85	72.48	64	85
30	76.39	75.02	64	85
31	78.94	77.57	69	90
32	81.49	80.12	69	90
33	84.03	82.66	74	95
34	86.58	85.21	74	95
35	89.13	87.75	79	100
36	91.67	90.30	79	100
37	94.22	92.85	84	105
38	96.77	95.39	84	105
39	99.31	97.94	89	110
40	101.86	100.49	89	110
41	104.41	103.03	(95)	(115)
42	106.95	105.58	(95)	(115)
43	109.50	108.13	99	121
44	112.05	110.67	99	121
45	114.59	113.22	105	127
46	117.14	115.77	105	127
47	119.68	118.31	109	131
48	122.23	120.86	109	131
49	124.78	123.41	115	135
50	127.32	125.95	115	135
51	129.87	128.50	120	140
52	132.42	131.04	120	140
53	134.96	133.59	(123)	(145)
54	137.51	136.14	(123)	(145)
55	140.06	138.68	130	151
56	142.60	141.23	130	151
57	145.15	143.78	–	–
58	147.70	146.32	–	–
59	150.24	148.87	–	–
60	152.79	151.42	–	–
61	155.34	153.96	–	–
62	157.88	156.51	–	–
63	160.43	159.06	150	172
64	162.97	161.60	150	172
65	165.52	164.15	–	–
66	168.07	166.70	–	–
67	170.61	169.24	–	–
68	173.16	171.79	–	–
69	175.71	174.34	–	–
70	178.25	176.88	–	–
71	180.80	179.43	–	–
72	183.35	181.97	–	–
73	185.89	184.52	–	–
74	188.44	187.07	–	–
75	190.99	189.61	–	–
76	193.53	192.16	–	–
77	196.08	194.71	–	–
78	198.63	197.25	–	–
79	201.17	199.80	–	–
80	203.72	202.35	–	–
81	206.26	204.89	–	–
82	208.81	207.44	–	–
83	211.36	209.99	–	–
84	213.90	212.53	–	–
85	216.45	215.08	–	–
86	219.00	217.63	–	–
87	221.54	220.17	–	–
88	224.09	222.72	–	–
89	226.64	225.26	–	–
90	229.18	227.81	–	–
91	231.73	230.36	–	–
92	234.28	232.90	–	–
93	236.82	235.45	–	–
94	239.37	238.00	–	–
95	241.92	240.54	–	–
96	244.46	243.09	–	–
97	247.01	245.64	–	–
98	249.55	248.18	–	–
99	252.10	250.73	–	–
100	254.65	253.28	–	–
101	257.19	255.82	–	–
102	259.74	258.37	–	–
103	262.29	260.92	–	–
104	264.83	263.46	–	–
105	267.38	266.01	–	–
106	269.93	268.55	–	–
107	272.47	271.10	–	–
108	275.02	273.65	–	–
109	277.57	276.19	–	–
110	280.11	278.74	–	–
111	282.66	281.29	–	–
112	285.21	283.83	–	–
113	287.75	286.38	–	–
114	290.30	288.93	–	–
115	292.85	291.47	–	–
116	295.39	294.02	–	–
117	297.94	296.57	–	–
118	300.48	299.11	–	–
119	303.03	301.66	–	–
120	305.58	304.21	–	–
121	308.12	306.75	–	–
122	310.67	309.30	–	–
123	313.22	311.84	–	–
124	315.76	314.39	–	–
125	318.31	316.94	–	–
126	320.86	319.48	–	–
127	323.40	322.03	–	–
128	325.95	324.58	–	–
129	328.50	327.12	–	–
130	331.04	329.67	–	–
131	333.59	332.22	–	–
132	336.14	334.76	–	–
133	338.68	337.31	–	–
134	341.23	339.86	–	–
135	343.77	342.40	–	–
136	346.32	344.95	–	–
137	348.87	347.50	–	–
138	351.41	350.04	–	–
139	353.96	352.59	–	–
140	356.51	355.14	–	–
141	359.05	357.68	–	–
142	361.60	360.23	–	–
143	364.15	362.77	–	–
144	366.69	365.32	–	–
145	369.24	367.87	–	–
146	371.79	370.41	–	–
147	374.33	372.96	–	–
148	376.88	375.51	–	–
149	379.43	378.05	–	–
150	381.97	380.60	–	–

PD: 50.93
OD: 49.56
FLANGE ID: 40
FLANGE OD: 60

PD: 53.48
OD: 52.10
FLANGE ID: 45
FLANGE OD: 64

PD: 56.02
OD: 54.65
FLANGE ID: 45
FLANGE OD: 64

PD: 58.57
OD: 57.20
FLANGE ID: 50
FLANGE OD: 70

PD: 61.12
OD: 59.74
FLANGE ID: 50
FLANGE OD: 70

PD: 63.66
OD: 62.29
FLANGE ID: 52
FLANGE OD: 72

PD: 66.21
OD: 64.84
FLANGE ID: 54
FLANGE OD: 75

PD: 68.75
OD: 67.38
FLANGE ID: 59
FLANGE OD: 80

PD: 71.30
OD: 69.93
FLANGE ID: 59
FLANGE OD: 80

PD: 73.85
OD: 72.48
FLANGE ID: 64
FLANGE OD: 85

PD: 76.39
OD: 75.02
FLANGE ID: 64
FLANGE OD: 85

PD: 78.94
OD: 77.57
FLANGE ID: 69
FLANGE OD: 90

PD: 81.49
OD: 80.12
FLANGE ID: 69
FLANGE OD: 90

PD: 84.03
OD: 82.66
FLANGE ID: 74
FLANGE OD: 95

PD: 86.58
OD: 85.21
FLANGE ID: 74
FLANGE OD: 95

PD: 89.13
OD: 87.75
FLANGE ID: 79
FLANGE OD: 100

PD: 91.67
OD: 90.30
FLANGE ID: 79
FLANGE OD: 100

PD: 94.22
OD: 92.85
FLANGE ID: 84
FLANGE OD: 105

PD: 96.77
OD: 95.39
FLANGE ID: 84
FLANGE OD: 105

PD: 99.31
OD: 97.94
FLANGE ID: 89
FLANGE OD: 110

PD: 101.86
OD: 100.49
FLANGE ID: 89
FLANGE OD: 110

PD: 104.41
OD: 103.03
FLANGE ID: (95)
FLANGE OD: (115)

PD: 106.95
OD: 105.58
FLANGE ID: (95)
FLANGE OD: (115)

PD: 109.50
OD: 108.13
FLANGE ID: 99
FLANGE OD: 121

PD: 112.05
OD: 110.67
FLANGE ID: 99
FLANGE OD: 121

PD: 114.59
OD: 113.22
FLANGE ID: 105
FLANGE OD: 127

PD: 117.14
OD: 115.77
FLANGE ID: 105
FLANGE OD: 127

PD: 119.68
OD: 118.31
FLANGE ID: 109
FLANGE OD: 131

PD: 122.23
OD: 120.86
FLANGE ID: 109
FLANGE OD: 131

PD: 124.78
OD: 123.41
FLANGE ID: 115
FLANGE OD: 135

PD: 127.32
OD: 125.95
FLANGE ID: 115
FLANGE OD: 135

PD: 129.87
OD: 128.50
FLANGE ID: 120
FLANGE OD: 140

PD: 132.42
OD: 131.04
FLANGE ID: 120
FLANGE OD: 140

PD: 134.96
OD: 133.59
FLANGE ID: (123)
FLANGE OD: (145)

PD: 137.51
OD: 136.14
FLANGE ID: (123)
FLANGE OD: (145)

PD: 140.06
OD: 138.68
FLANGE ID: 130
FLANGE OD: 151

PD: 142.60
OD: 141.23
FLANGE ID: 130
FLANGE OD: 151

PD: 145.15
OD: 143.78
FLANGE ID: –
FLANGE OD: –

PD: 147.70
OD: 146.32
FLANGE ID: –
FLANGE OD: –

PD: 150.24
OD: 148.87
FLANGE ID: –
FLANGE OD: –

PD: 152.79
OD: 151.42
FLANGE ID: –
FLANGE OD: –

PD: 155.34
OD: 153.96
FLANGE ID: –
FLANGE OD: –

PD: 157.88
OD: 156.51
FLANGE ID: –
FLANGE OD: –

PD: 160.43
OD: 159.06
FLANGE ID: 150
FLANGE OD: 172

PD: 162.97
OD: 161.60
FLANGE ID: 150
FLANGE OD: 172

PD: 165.52
OD: 164.15
FLANGE ID: –
FLANGE OD: –

PD: 168.07
OD: 166.70
FLANGE ID: –
FLANGE OD: –

PD: 170.61
OD: 169.24
FLANGE ID: –
FLANGE OD: –

PD: 173.16
OD: 171.79
FLANGE ID: –
FLANGE OD: –

PD: 175.71
OD: 174.34
FLANGE ID: –
FLANGE OD: –

PD: 178.25
OD: 176.88
FLANGE ID: –
FLANGE OD: –

PD: 180.80
OD: 179.43
FLANGE ID: –
FLANGE OD: –

PD: 183.35
OD: 181.97
FLANGE ID: –
FLANGE OD: –

PD: 185.89
OD: 184.52
FLANGE ID: –
FLANGE OD: –

PD: 188.44
OD: 187.07
FLANGE ID: –
FLANGE OD: –

PD: 190.99
OD: 189.61
FLANGE ID: –
FLANGE OD: –

PD: 193.53
OD: 192.16
FLANGE ID: –
FLANGE OD: –

PD: 196.08
OD: 194.71
FLANGE ID: –
FLANGE OD: –

PD: 198.63
OD: 197.25
FLANGE ID: –
FLANGE OD: –

PD: 201.17
OD: 199.80
FLANGE ID: –
FLANGE OD: –

PD: 203.72
OD: 202.35
FLANGE ID: –
FLANGE OD: –

PD: 206.26
OD: 204.89
FLANGE ID: –
FLANGE OD: –

PD: 208.81
OD: 207.44
FLANGE ID: –
FLANGE OD: –

PD: 211.36
OD: 209.99
FLANGE ID: –
FLANGE OD: –

PD: 213.90
OD: 212.53
FLANGE ID: –
FLANGE OD: –

PD: 216.45
OD: 215.08
FLANGE ID: –
FLANGE OD: –

PD: 219.00
OD: 217.63
FLANGE ID: –
FLANGE OD: –

PD: 221.54
OD: 220.17
FLANGE ID: –
FLANGE OD: –

PD: 224.09
OD: 222.72
FLANGE ID: –
FLANGE OD: –

PD: 226.64
OD: 225.26
FLANGE ID: –
FLANGE OD: –

PD: 229.18
OD: 227.81
FLANGE ID: –
FLANGE OD: –

PD: 231.73
OD: 230.36
FLANGE ID: –
FLANGE OD: –

PD: 234.28
OD: 232.90
FLANGE ID: –
FLANGE OD: –

PD: 236.82
OD: 235.45
FLANGE ID: –
FLANGE OD: –

PD: 239.37
OD: 238.00
FLANGE ID: –
FLANGE OD: –

PD: 241.92
OD: 240.54
FLANGE ID: –
FLANGE OD: –

PD: 244.46
OD: 243.09
FLANGE ID: –
FLANGE OD: –

PD: 247.01
OD: 245.64
FLANGE ID: –
FLANGE OD: –

PD: 249.55
OD: 248.18
FLANGE ID: –
FLANGE OD: –

PD: 252.10
OD: 250.73
FLANGE ID: –
FLANGE OD: –

100

PD: 254.65
OD: 253.28
FLANGE ID: –
FLANGE OD: –

101

PD: 257.19
OD: 255.82
FLANGE ID: –
FLANGE OD: –

102

PD: 259.74
OD: 258.37
FLANGE ID: –
FLANGE OD: –

103

PD: 262.29
OD: 260.92
FLANGE ID: –
FLANGE OD: –

104

PD: 264.83
OD: 263.46
FLANGE ID: –
FLANGE OD: –

105

PD: 267.38
OD: 266.01
FLANGE ID: –
FLANGE OD: –

106

PD: 269.93
OD: 268.55
FLANGE ID: –
FLANGE OD: –

107

PD: 272.47
OD: 271.10
FLANGE ID: –
FLANGE OD: –

108

PD: 275.02
OD: 273.65
FLANGE ID: –
FLANGE OD: –

109

PD: 277.57
OD: 276.19
FLANGE ID: –
FLANGE OD: –

110

PD: 280.11
OD: 278.74
FLANGE ID: –
FLANGE OD: –

111

PD: 282.66
OD: 281.29
FLANGE ID: –
FLANGE OD: –

112

PD: 285.21
OD: 283.83
FLANGE ID: –
FLANGE OD: –

113

PD: 287.75
OD: 286.38
FLANGE ID: –
FLANGE OD: –

114

PD: 290.30
OD: 288.93
FLANGE ID: –
FLANGE OD: –

115

PD: 292.85
OD: 291.47
FLANGE ID: –
FLANGE OD: –

116

PD: 295.39
OD: 294.02
FLANGE ID: –
FLANGE OD: –

117

PD: 297.94
OD: 296.57
FLANGE ID: –
FLANGE OD: –

118

PD: 300.48
OD: 299.11
FLANGE ID: –
FLANGE OD: –

119

PD: 303.03
OD: 301.66
FLANGE ID: –
FLANGE OD: –

120

PD: 305.58
OD: 304.21
FLANGE ID: –
FLANGE OD: –

121

PD: 308.12
OD: 306.75
FLANGE ID: –
FLANGE OD: –

122

PD: 310.67
OD: 309.30
FLANGE ID: –
FLANGE OD: –

123

PD: 313.22
OD: 311.84
FLANGE ID: –
FLANGE OD: –

124

PD: 315.76
OD: 314.39
FLANGE ID: –
FLANGE OD: –

125

PD: 318.31
OD: 316.94
FLANGE ID: –
FLANGE OD: –

126

PD: 320.86
OD: 319.48
FLANGE ID: –
FLANGE OD: –

127

PD: 323.40
OD: 322.03
FLANGE ID: –
FLANGE OD: –

128

PD: 325.95
OD: 324.58
FLANGE ID: –
FLANGE OD: –

129

PD: 328.50
OD: 327.12
FLANGE ID: –
FLANGE OD: –

130

PD: 331.04
OD: 329.67
FLANGE ID: –
FLANGE OD: –

131

PD: 333.59
OD: 332.22
FLANGE ID: –
FLANGE OD: –

132

PD: 336.14
OD: 334.76
FLANGE ID: –
FLANGE OD: –

133

PD: 338.68
OD: 337.31
FLANGE ID: –
FLANGE OD: –

134

PD: 341.23
OD: 339.86
FLANGE ID: –
FLANGE OD: –

135

PD: 343.77
OD: 342.40
FLANGE ID: –
FLANGE OD: –

136

PD: 346.32
OD: 344.95
FLANGE ID: –
FLANGE OD: –

137

PD: 348.87
OD: 347.50
FLANGE ID: –
FLANGE OD: –

138

PD: 351.41
OD: 350.04
FLANGE ID: –
FLANGE OD: –

139

PD: 353.96
OD: 352.59
FLANGE ID: –
FLANGE OD: –

140

PD: 356.51
OD: 355.14
FLANGE ID: –
FLANGE OD: –

141

PD: 359.05
OD: 357.68
FLANGE ID: –
FLANGE OD: –

142

PD: 361.60
OD: 360.23
FLANGE ID: –
FLANGE OD: –

143

PD: 364.15
OD: 362.77
FLANGE ID: –
FLANGE OD: –

144

PD: 366.69
OD: 365.32
FLANGE ID: –
FLANGE OD: –

145

PD: 369.24
OD: 367.87
FLANGE ID: –
FLANGE OD: –

146

PD: 371.79
OD: 370.41
FLANGE ID: –
FLANGE OD: –

147

PD: 374.33
OD: 372.96
FLANGE ID: –
FLANGE OD: –

148

PD: 376.88
OD: 375.51
FLANGE ID: –
FLANGE OD: –

149

PD: 379.43
OD: 378.05
FLANGE ID: –
FLANGE OD: –

150

PD: 381.97
OD: 380.60
FLANGE ID: –
FLANGE OD: –

총 131개 · 원본 규격표 전사

T5 - AT5

치수 mm

TEETH⇅	PD⇅	T6⇅	AT6⇅	FLANGE ID⇅	FLANGE OD⇅
12	19.10	18.25	17.85	12.5	24
13	20.69	19.85	19.45	15	25
14	22.28	21.45	21.05	15	25
15	23.87	23.05	22.65	17.5	28
16	25.46	24.60	24.20	20	32
17	27.06	26.20	25.80	20	32
18	28.65	27.80	27.40	20	32
19	30.24	29.40	29.00	25	35
20	31.83	31.00	30.60	25	35
21	33.42	32.70	32.30	27.5	40
22	35.01	34.25	33.85	27.5	40
23	36.61	35.85	35.45	31	45
24	38.20	37.40	37.00	31	45
25	39.79	39.00	38.60	31	45
26	41.38	40.60	40.20	36	48
27	42.97	42.20	41.80	36	48
28	44.56	43.75	43.35	36	48
29	46.15	45.35	44.95	41	55
30	47.75	46.95	46.55	41	55
31	49.34	48.55	48.15	41	55
32	50.93	50.10	49.70	46	61
33	52.52	51.70	51.30	46	61
34	54.11	53.25	52.85	46	61
35	55.70	54.85	54.45	46	61
36	57.30	56.45	56.05	51	67
37	58.89	58.05	57.65	51	67
38	60.48	59.65	59.25	51	67
39	62.07	61.25	60.85	56	70
40	63.66	62.85	62.45	56	70
41	65.25	64.40	64.00	56	70
42	66.85	66.00	65.60	61	76
43	68.44	67.60	67.20	61	76
44	70.03	69.20	68.80	61	76
45	71.62	70.80	70.40	61	76
46	73.21	72.40	72.00	66	83
47	74.80	73.95	73.55	66	83
48	76.39	75.55	75.15	66	83
50	79.58	78.75	78.35	71	88
56	89.13	88.30	87.90	80	99
60	95.49	94.65	94.25	85	103
64	101.86	101.05	100.65	90	111
80	127.32	126.50	126.10	–	–
90	143.24	142.45	142.05	–	–
112	178.25	177.45	177.05	–	–

PD: 19.10
T6: 18.25
AT6: 17.85
FLANGE ID: 12.5

PD: 20.69
T6: 19.85
AT6: 19.45
FLANGE ID: 15

PD: 22.28
T6: 21.45
AT6: 21.05
FLANGE ID: 15

PD: 23.87
T6: 23.05
AT6: 22.65
FLANGE ID: 17.5

PD: 25.46
T6: 24.60
AT6: 24.20
FLANGE ID: 20

PD: 27.06
T6: 26.20
AT6: 25.80
FLANGE ID: 20

PD: 28.65
T6: 27.80
AT6: 27.40
FLANGE ID: 20

PD: 30.24
T6: 29.40
AT6: 29.00
FLANGE ID: 25

PD: 31.83
T6: 31.00
AT6: 30.60
FLANGE ID: 25

PD: 33.42
T6: 32.70
AT6: 32.30
FLANGE ID: 27.5

PD: 35.01
T6: 34.25
AT6: 33.85
FLANGE ID: 27.5

PD: 36.61
T6: 35.85
AT6: 35.45
FLANGE ID: 31

PD: 38.20
T6: 37.40
AT6: 37.00
FLANGE ID: 31

PD: 39.79
T6: 39.00
AT6: 38.60
FLANGE ID: 31

PD: 41.38
T6: 40.60
AT6: 40.20
FLANGE ID: 36

PD: 42.97
T6: 42.20
AT6: 41.80
FLANGE ID: 36

PD: 44.56
T6: 43.75
AT6: 43.35
FLANGE ID: 36

PD: 46.15
T6: 45.35
AT6: 44.95
FLANGE ID: 41

PD: 47.75
T6: 46.95
AT6: 46.55
FLANGE ID: 41

PD: 49.34
T6: 48.55
AT6: 48.15
FLANGE ID: 41

PD: 50.93
T6: 50.10
AT6: 49.70
FLANGE ID: 46

PD: 52.52
T6: 51.70
AT6: 51.30
FLANGE ID: 46

PD: 54.11
T6: 53.25
AT6: 52.85
FLANGE ID: 46

PD: 55.70
T6: 54.85
AT6: 54.45
FLANGE ID: 46

PD: 57.30
T6: 56.45
AT6: 56.05
FLANGE ID: 51

PD: 58.89
T6: 58.05
AT6: 57.65
FLANGE ID: 51

PD: 60.48
T6: 59.65
AT6: 59.25
FLANGE ID: 51

PD: 62.07
T6: 61.25
AT6: 60.85
FLANGE ID: 56

PD: 63.66
T6: 62.85
AT6: 62.45
FLANGE ID: 56

PD: 65.25
T6: 64.40
AT6: 64.00
FLANGE ID: 56

PD: 66.85
T6: 66.00
AT6: 65.60
FLANGE ID: 61

PD: 68.44
T6: 67.60
AT6: 67.20
FLANGE ID: 61

PD: 70.03
T6: 69.20
AT6: 68.80
FLANGE ID: 61

PD: 71.62
T6: 70.80
AT6: 70.40
FLANGE ID: 61

PD: 73.21
T6: 72.40
AT6: 72.00
FLANGE ID: 66

PD: 74.80
T6: 73.95
AT6: 73.55
FLANGE ID: 66

PD: 76.39
T6: 75.55
AT6: 75.15
FLANGE ID: 66

PD: 79.58
T6: 78.75
AT6: 78.35
FLANGE ID: 71

PD: 89.13
T6: 88.30
AT6: 87.90
FLANGE ID: 80

PD: 95.49
T6: 94.65
AT6: 94.25
FLANGE ID: 85

PD: 101.86
T6: 101.05
AT6: 100.65
FLANGE ID: 90

PD: 127.32
T6: 126.50
AT6: 126.10
FLANGE ID: –

PD: 143.24
T6: 142.45
AT6: 142.05
FLANGE ID: –

112

PD: 178.25
T6: 177.45
AT6: 177.05
FLANGE ID: –

총 44개 · 원본 규격표 전사

T10 - AT10

치수 mm

TEETH⇅	PD⇅	OD⇅	FLANGE ID⇅	FLANGE OD⇅
12	38.20	36.35	–	–
13	41.38	39.50	31	45
14	44.56	42.70	36	48
15	47.75	45.90	36	48
16	50.93	49.05	41	55
17	54.11	52.25	41	55
18	57.30	55.45	46	61
19	60.48	58.60	51	67
20	63.66	61.80	51	67
21	66.85	65.00	56	70
22	70.03	68.15	61	76
23	73.21	71.35	61	76
24	76.39	74.55	66	83
25	79.58	77.70	66	83
26	82.76	80.90	71	88
27	85.94	84.10	75	95
28	89.13	87.25	80	99
29	92.31	90.45	80	99
30	95.49	93.65	85	103
31	98.68	96.80	85	103
32	101.86	100.00	90	111
33	105.04	103.20	90	111
34	108.23	106.40	100	119
35	111.41	109.55	100	119
36	114.59	112.75	100	119
37	117.77	115.90	105	127
38	120.96	119.10	105	127
39	124.14	122.30	109	131
40	127.32	125.45	115	135
41	130.51	128.65	115	135
42	133.69	131.85	120	140
43	136.87	135.00	120	140
44	140.06	138.20	130	151
45	143.24	141.40	–	–
46	146.42	144.55	–	–
47	149.61	147.75	–	–
48	152.79	150.95	–	–
50	159.15	157.30	–	–
56	178.25	176.40	–	–
60	190.99	189.10	–	–
64	203.72	201.85	–	–
80	254.65	252.80	–	–
90	286.48	284.60	–	–
112	356.51	354.65	–	–

PD: 38.20
OD: 36.35
FLANGE ID: –
FLANGE OD: –

PD: 41.38
OD: 39.50
FLANGE ID: 31
FLANGE OD: 45

PD: 44.56
OD: 42.70
FLANGE ID: 36
FLANGE OD: 48

PD: 47.75
OD: 45.90
FLANGE ID: 36
FLANGE OD: 48

PD: 50.93
OD: 49.05
FLANGE ID: 41
FLANGE OD: 55

PD: 54.11
OD: 52.25
FLANGE ID: 41
FLANGE OD: 55

PD: 57.30
OD: 55.45
FLANGE ID: 46
FLANGE OD: 61

PD: 60.48
OD: 58.60
FLANGE ID: 51
FLANGE OD: 67

PD: 63.66
OD: 61.80
FLANGE ID: 51
FLANGE OD: 67

PD: 66.85
OD: 65.00
FLANGE ID: 56
FLANGE OD: 70

PD: 70.03
OD: 68.15
FLANGE ID: 61
FLANGE OD: 76

PD: 73.21
OD: 71.35
FLANGE ID: 61
FLANGE OD: 76

PD: 76.39
OD: 74.55
FLANGE ID: 66
FLANGE OD: 83

PD: 79.58
OD: 77.70
FLANGE ID: 66
FLANGE OD: 83

PD: 82.76
OD: 80.90
FLANGE ID: 71
FLANGE OD: 88

PD: 85.94
OD: 84.10
FLANGE ID: 75
FLANGE OD: 95

PD: 89.13
OD: 87.25
FLANGE ID: 80
FLANGE OD: 99

PD: 92.31
OD: 90.45
FLANGE ID: 80
FLANGE OD: 99

PD: 95.49
OD: 93.65
FLANGE ID: 85
FLANGE OD: 103

PD: 98.68
OD: 96.80
FLANGE ID: 85
FLANGE OD: 103

PD: 101.86
OD: 100.00
FLANGE ID: 90
FLANGE OD: 111

PD: 105.04
OD: 103.20
FLANGE ID: 90
FLANGE OD: 111

PD: 108.23
OD: 106.40
FLANGE ID: 100
FLANGE OD: 119

PD: 111.41
OD: 109.55
FLANGE ID: 100
FLANGE OD: 119

PD: 114.59
OD: 112.75
FLANGE ID: 100
FLANGE OD: 119

PD: 117.77
OD: 115.90
FLANGE ID: 105
FLANGE OD: 127

PD: 120.96
OD: 119.10
FLANGE ID: 105
FLANGE OD: 127

PD: 124.14
OD: 122.30
FLANGE ID: 109
FLANGE OD: 131

PD: 127.32
OD: 125.45
FLANGE ID: 115
FLANGE OD: 135

PD: 130.51
OD: 128.65
FLANGE ID: 115
FLANGE OD: 135

PD: 133.69
OD: 131.85
FLANGE ID: 120
FLANGE OD: 140

PD: 136.87
OD: 135.00
FLANGE ID: 120
FLANGE OD: 140

PD: 140.06
OD: 138.20
FLANGE ID: 130
FLANGE OD: 151

PD: 143.24
OD: 141.40
FLANGE ID: –
FLANGE OD: –

PD: 146.42
OD: 144.55
FLANGE ID: –
FLANGE OD: –

PD: 149.61
OD: 147.75
FLANGE ID: –
FLANGE OD: –

PD: 152.79
OD: 150.95
FLANGE ID: –
FLANGE OD: –

PD: 159.15
OD: 157.30
FLANGE ID: –
FLANGE OD: –

PD: 178.25
OD: 176.40
FLANGE ID: –
FLANGE OD: –

PD: 190.99
OD: 189.10
FLANGE ID: –
FLANGE OD: –

PD: 203.72
OD: 201.85
FLANGE ID: –
FLANGE OD: –

PD: 254.65
OD: 252.80
FLANGE ID: –
FLANGE OD: –

PD: 286.48
OD: 284.60
FLANGE ID: –
FLANGE OD: –

112

PD: 356.51
OD: 354.65
FLANGE ID: –
FLANGE OD: –

총 44개 · 원본 규격표 전사

T20-AT20

치수 mm

TEETH⇅	PD⇅	OD⇅
18	114.59	111.75
19	120.96	118.12
20	127.32	124.48
21	133.69	130.85
22	140.06	137.22
23	146.42	143.58
24	152.79	149.95
25	159.15	156.31
26	165.52	162.68
27	171.89	169.05
28	178.25	175.41
29	184.62	181.78
30	190.99	188.15
31	197.35	194.51
32	203.72	200.88
33	210.08	207.24
34	216.45	213.61
35	222.82	219.98
36	229.18	226.34
37	235.55	232.71
38	241.92	239.08
39	248.28	245.44
40	254.65	251.81
41	261.01	258.17
42	267.38	264.54
43	273.75	270.91
44	280.11	277.27
45	286.48	283.64
46	292.85	290.01
47	299.21	296.37
48	305.58	302.74
49	311.94	309.10
50	318.31	315.47
56	356.51	353.67
60	381.97	379.13

PD: 114.59
OD: 111.75

PD: 120.96
OD: 118.12

PD: 127.32
OD: 124.48

PD: 133.69
OD: 130.85

PD: 140.06
OD: 137.22

PD: 146.42
OD: 143.58

PD: 152.79
OD: 149.95

PD: 159.15
OD: 156.31

PD: 165.52
OD: 162.68

PD: 171.89
OD: 169.05

PD: 178.25
OD: 175.41

PD: 184.62
OD: 181.78

PD: 190.99
OD: 188.15

PD: 197.35
OD: 194.51

PD: 203.72
OD: 200.88

PD: 210.08
OD: 207.24

PD: 216.45
OD: 213.61

PD: 222.82
OD: 219.98

PD: 229.18
OD: 226.34

PD: 235.55
OD: 232.71

PD: 241.92
OD: 239.08

PD: 248.28
OD: 245.44

PD: 254.65
OD: 251.81

PD: 261.01
OD: 258.17

PD: 267.38
OD: 264.54

PD: 273.75
OD: 270.91

PD: 280.11
OD: 277.27

PD: 286.48
OD: 283.64

PD: 292.85
OD: 290.01

PD: 299.21
OD: 296.37

PD: 305.58
OD: 302.74

PD: 311.94
OD: 309.10

PD: 318.31
OD: 315.47

PD: 356.51
OD: 353.67

PD: 381.97
OD: 379.13

총 35개 · 원본 규격표 전사

S2M

치수 mm

TEETH⇅	PD⇅	OD⇅	FLANGE ID⇅	FLANGE OD⇅
14	8.91	8.40	–	–
15	9.55	9.04	7	13
16	10.19	9.68	7	13
17	10.82	10.31	7	13
18	11.46	10.95	7	13
19	12.10	11.59	7	13
20	12.73	12.22	–	–
21	13.37	12.86	11	18
22	14.01	13.50	11	18
23	14.64	14.13	11	18
24	15.28	14.77	11	18
25	15.92	15.41	11	18
26	16.55	16.04	12.5	24
27	17.19	16.68	12.5	24
28	17.83	17.32	12.5	24
29	18.46	17.95	12.5	24
30	19.10	18.59	12.5	24
31	19.74	19.23	15	25
32	20.37	19.86	15	25
33	21.01	20.50	15	25
34	21.65	21.14	15	25
35	22.28	21.77	15	25
36	22.92	22.41	17.5	28
37	23.55	23.05	17.5	28
38	24.19	23.68	17.5	28
39	24.83	24.32	17.5	28
40	25.46	24.96	17.5	28
41	26.10	25.59	20	32
42	26.74	26.23	20	32
43	27.37	26.87	20	32
44	28.01	27.50	20	32
45	28.65	28.14	20	32
46	29.28	28.78	25	35
47	29.92	29.41	25	35
48	30.56	30.05	25	35
49	31.19	30.69	25	35
50	31.83	31.32	25	35
51	32.47	31.96	25	35
52	33.10	32.60	27.5	40
53	33.74	33.23	27.5	40
54	34.38	33.87	27.5	40
55	35.01	34.51	27.5	40
56	35.65	35.14	27.5	40
57	36.29	35.78	27.5	40
58	36.92	36.42	27.5	40
59	37.56	37.05	31	45
60	38.20	37.69	31	45
61	38.83	38.33	31	45
62	39.47	38.96	31	45
63	40.11	39.60	31	45
66	42.02	41.51	31	45
67	42.65	42.15	36	48
68	43.29	42.78	36	48
69	43.93	43.42	36	48
70	44.56	44.06	36	48
71	45.20	44.69	36	48
72	45.84	45.33	36	48
73	46.47	45.97	41	55
76	48.38	47.88	41	55
77	49.02	48.51	41	55
78	49.66	49.15	41	55
80	50.93	50.42	41	55
81	51.57	51.06	41	55
82	52.20	51.69	46	61
83	52.84	52.33	46	61
84	53.48	52.97	46	61
85	54.11	53.60	46	61
86	54.75	54.24	46	61
89	56.66	56.15	46	61
90	57.30	56.79	46	61
91	57.93	57.42	51	67
94	59.84	59.33	51	67
95	60.48	59.97	51	67
96	61.12	60.61	51	67
100	63.66	63.15	56	70
120	76.39	75.89	71	83
150	95.49	94.98	85	103

PD: 8.91
OD: 8.40
FLANGE ID: –
FLANGE OD: –

PD: 9.55
OD: 9.04
FLANGE ID: 7
FLANGE OD: 13

PD: 10.19
OD: 9.68
FLANGE ID: 7
FLANGE OD: 13

PD: 10.82
OD: 10.31
FLANGE ID: 7
FLANGE OD: 13

PD: 11.46
OD: 10.95
FLANGE ID: 7
FLANGE OD: 13

PD: 12.10
OD: 11.59
FLANGE ID: 7
FLANGE OD: 13

PD: 12.73
OD: 12.22
FLANGE ID: –
FLANGE OD: –

PD: 13.37
OD: 12.86
FLANGE ID: 11
FLANGE OD: 18

PD: 14.01
OD: 13.50
FLANGE ID: 11
FLANGE OD: 18

PD: 14.64
OD: 14.13
FLANGE ID: 11
FLANGE OD: 18

PD: 15.28
OD: 14.77
FLANGE ID: 11
FLANGE OD: 18

PD: 15.92
OD: 15.41
FLANGE ID: 11
FLANGE OD: 18

PD: 16.55
OD: 16.04
FLANGE ID: 12.5
FLANGE OD: 24

PD: 17.19
OD: 16.68
FLANGE ID: 12.5
FLANGE OD: 24

PD: 17.83
OD: 17.32
FLANGE ID: 12.5
FLANGE OD: 24

PD: 18.46
OD: 17.95
FLANGE ID: 12.5
FLANGE OD: 24

PD: 19.10
OD: 18.59
FLANGE ID: 12.5
FLANGE OD: 24

PD: 19.74
OD: 19.23
FLANGE ID: 15
FLANGE OD: 25

PD: 20.37
OD: 19.86
FLANGE ID: 15
FLANGE OD: 25

PD: 21.01
OD: 20.50
FLANGE ID: 15
FLANGE OD: 25

PD: 21.65
OD: 21.14
FLANGE ID: 15
FLANGE OD: 25

PD: 22.28
OD: 21.77
FLANGE ID: 15
FLANGE OD: 25

PD: 22.92
OD: 22.41
FLANGE ID: 17.5
FLANGE OD: 28

PD: 23.55
OD: 23.05
FLANGE ID: 17.5
FLANGE OD: 28

PD: 24.19
OD: 23.68
FLANGE ID: 17.5
FLANGE OD: 28

PD: 24.83
OD: 24.32
FLANGE ID: 17.5
FLANGE OD: 28

PD: 25.46
OD: 24.96
FLANGE ID: 17.5
FLANGE OD: 28

PD: 26.10
OD: 25.59
FLANGE ID: 20
FLANGE OD: 32

PD: 26.74
OD: 26.23
FLANGE ID: 20
FLANGE OD: 32

PD: 27.37
OD: 26.87
FLANGE ID: 20
FLANGE OD: 32

PD: 28.01
OD: 27.50
FLANGE ID: 20
FLANGE OD: 32

PD: 28.65
OD: 28.14
FLANGE ID: 20
FLANGE OD: 32

PD: 29.28
OD: 28.78
FLANGE ID: 25
FLANGE OD: 35

PD: 29.92
OD: 29.41
FLANGE ID: 25
FLANGE OD: 35

PD: 30.56
OD: 30.05
FLANGE ID: 25
FLANGE OD: 35

PD: 31.19
OD: 30.69
FLANGE ID: 25
FLANGE OD: 35

PD: 31.83
OD: 31.32
FLANGE ID: 25
FLANGE OD: 35

PD: 32.47
OD: 31.96
FLANGE ID: 25
FLANGE OD: 35

PD: 33.10
OD: 32.60
FLANGE ID: 27.5
FLANGE OD: 40

PD: 33.74
OD: 33.23
FLANGE ID: 27.5
FLANGE OD: 40

PD: 34.38
OD: 33.87
FLANGE ID: 27.5
FLANGE OD: 40

PD: 35.01
OD: 34.51
FLANGE ID: 27.5
FLANGE OD: 40

PD: 35.65
OD: 35.14
FLANGE ID: 27.5
FLANGE OD: 40

PD: 36.29
OD: 35.78
FLANGE ID: 27.5
FLANGE OD: 40

PD: 36.92
OD: 36.42
FLANGE ID: 27.5
FLANGE OD: 40

PD: 37.56
OD: 37.05
FLANGE ID: 31
FLANGE OD: 45

PD: 38.20
OD: 37.69
FLANGE ID: 31
FLANGE OD: 45

PD: 38.83
OD: 38.33
FLANGE ID: 31
FLANGE OD: 45

PD: 39.47
OD: 38.96
FLANGE ID: 31
FLANGE OD: 45

PD: 40.11
OD: 39.60
FLANGE ID: 31
FLANGE OD: 45

PD: 42.02
OD: 41.51
FLANGE ID: 31
FLANGE OD: 45

PD: 42.65
OD: 42.15
FLANGE ID: 36
FLANGE OD: 48

PD: 43.29
OD: 42.78
FLANGE ID: 36
FLANGE OD: 48

PD: 43.93
OD: 43.42
FLANGE ID: 36
FLANGE OD: 48

PD: 44.56
OD: 44.06
FLANGE ID: 36
FLANGE OD: 48

PD: 45.20
OD: 44.69
FLANGE ID: 36
FLANGE OD: 48

PD: 45.84
OD: 45.33
FLANGE ID: 36
FLANGE OD: 48

PD: 46.47
OD: 45.97
FLANGE ID: 41
FLANGE OD: 55

PD: 48.38
OD: 47.88
FLANGE ID: 41
FLANGE OD: 55

PD: 49.02
OD: 48.51
FLANGE ID: 41
FLANGE OD: 55

PD: 49.66
OD: 49.15
FLANGE ID: 41
FLANGE OD: 55

PD: 50.93
OD: 50.42
FLANGE ID: 41
FLANGE OD: 55

PD: 51.57
OD: 51.06
FLANGE ID: 41
FLANGE OD: 55

PD: 52.20
OD: 51.69
FLANGE ID: 46
FLANGE OD: 61

PD: 52.84
OD: 52.33
FLANGE ID: 46
FLANGE OD: 61

PD: 53.48
OD: 52.97
FLANGE ID: 46
FLANGE OD: 61

PD: 54.11
OD: 53.60
FLANGE ID: 46
FLANGE OD: 61

PD: 54.75
OD: 54.24
FLANGE ID: 46
FLANGE OD: 61

PD: 56.66
OD: 56.15
FLANGE ID: 46
FLANGE OD: 61

PD: 57.30
OD: 56.79
FLANGE ID: 46
FLANGE OD: 61

PD: 57.93
OD: 57.42
FLANGE ID: 51
FLANGE OD: 67

PD: 59.84
OD: 59.33
FLANGE ID: 51
FLANGE OD: 67

PD: 60.48
OD: 59.97
FLANGE ID: 51
FLANGE OD: 67

PD: 61.12
OD: 60.61
FLANGE ID: 51
FLANGE OD: 67

100

PD: 63.66
OD: 63.15
FLANGE ID: 56
FLANGE OD: 70

120

PD: 76.39
OD: 75.89
FLANGE ID: 71
FLANGE OD: 83

150

PD: 95.49
OD: 94.98
FLANGE ID: 85
FLANGE OD: 103

총 77개 · 원본 규격표 전사

S3M

치수 mm

TEETH⇅	PD⇅	OD⇅	FLANGE ID⇅	FLANGE OD⇅
14	13.37	12.61	–	–
15	14.32	13.56	11	18
16	15.28	14.52	11	18
17	16.23	15.47	12.5	24
18	17.19	16.43	12.5	24
19	18.14	17.38	12.5	24
20	19.10	18.34	15	25
21	20.05	19.29	15	25
22	21.01	20.25	15	25
23	21.96	21.20	17.5	28
24	22.92	22.16	17.5	28
25	23.87	23.11	17.5	28
26	24.83	24.07	20	32
27	25.78	25.02	20	32
28	26.74	25.98	20	32
29	27.69	26.93	20	32
30	28.65	27.89	25	35
31	29.60	28.84	25	35
32	30.56	29.80	25	35
33	31.51	30.75	27.5	40
34	32.47	31.71	27.5	40
35	33.42	32.66	27.5	40
36	34.38	33.62	27.5	40
37	35.33	34.57	27.5	40
38	36.29	35.53	31	45
39	37.24	36.48	31	45
40	38.20	37.44	31	45
41	39.15	38.39	31	45
42	40.11	39.35	31	45
43	41.06	40.30	36	48
44	42.02	41.25	36	48
45	42.97	42.21	36	48
46	43.93	43.16	36	48
47	44.88	44.12	41	55
48	45.84	45.07	41	55
49	46.79	46.03	41	55
50	47.75	46.98	41	55
51	48.70	47.94	41	55
52	49.66	48.89	41	55
53	50.61	49.85	41	55
54	51.57	50.80	46	61
55	52.52	51.76	46	61
56	53.48	52.71	46	61
57	54.43	53.67	46	61
58	55.39	54.62	46	61
59	56.34	55.58	46	61
60	57.30	56.53	46	61
61	58.25	57.49	51	67
62	59.21	58.44	51	67
63	60.16	59.40	51	67
66	63.03	62.26	51	67
67	63.98	63.22	56	70
68	64.94	64.17	56	70
69	65.89	65.13	56	70
70	66.85	66.08	61	76
71	67.80	67.04	61	76
72	68.75	67.99	61	76
73	69.71	68.95	61	76
76	72.57	71.81	61	76
77	73.53	72.77	61	76
78	74.48	73.72	66	83
80	76.39	75.63	66	83
81	77.35	76.59	66	83
82	78.30	77.54	66	83
83	79.26	78.50	71	88
84	80.21	79.45	71	88
85	81.17	80.41	71	88
86	82.12	81.36	71	88
89	84.99	84.23	75	95
90	85.94	85.18	75	95
91	86.90	86.14	75	95
94	89.76	89.00	75	95
95	90.72	89.96	80	99
96	91.67	90.91	80	99
100	95.49	94.73	85	103
120	114.59	113.83	–	–
150	143.24	142.48	–	–

PD: 13.37
OD: 12.61
FLANGE ID: –
FLANGE OD: –

PD: 14.32
OD: 13.56
FLANGE ID: 11
FLANGE OD: 18

PD: 15.28
OD: 14.52
FLANGE ID: 11
FLANGE OD: 18

PD: 16.23
OD: 15.47
FLANGE ID: 12.5
FLANGE OD: 24

PD: 17.19
OD: 16.43
FLANGE ID: 12.5
FLANGE OD: 24

PD: 18.14
OD: 17.38
FLANGE ID: 12.5
FLANGE OD: 24

PD: 19.10
OD: 18.34
FLANGE ID: 15
FLANGE OD: 25

PD: 20.05
OD: 19.29
FLANGE ID: 15
FLANGE OD: 25

PD: 21.01
OD: 20.25
FLANGE ID: 15
FLANGE OD: 25

PD: 21.96
OD: 21.20
FLANGE ID: 17.5
FLANGE OD: 28

PD: 22.92
OD: 22.16
FLANGE ID: 17.5
FLANGE OD: 28

PD: 23.87
OD: 23.11
FLANGE ID: 17.5
FLANGE OD: 28

PD: 24.83
OD: 24.07
FLANGE ID: 20
FLANGE OD: 32

PD: 25.78
OD: 25.02
FLANGE ID: 20
FLANGE OD: 32

PD: 26.74
OD: 25.98
FLANGE ID: 20
FLANGE OD: 32

PD: 27.69
OD: 26.93
FLANGE ID: 20
FLANGE OD: 32

PD: 28.65
OD: 27.89
FLANGE ID: 25
FLANGE OD: 35

PD: 29.60
OD: 28.84
FLANGE ID: 25
FLANGE OD: 35

PD: 30.56
OD: 29.80
FLANGE ID: 25
FLANGE OD: 35

PD: 31.51
OD: 30.75
FLANGE ID: 27.5
FLANGE OD: 40

PD: 32.47
OD: 31.71
FLANGE ID: 27.5
FLANGE OD: 40

PD: 33.42
OD: 32.66
FLANGE ID: 27.5
FLANGE OD: 40

PD: 34.38
OD: 33.62
FLANGE ID: 27.5
FLANGE OD: 40

PD: 35.33
OD: 34.57
FLANGE ID: 27.5
FLANGE OD: 40

PD: 36.29
OD: 35.53
FLANGE ID: 31
FLANGE OD: 45

PD: 37.24
OD: 36.48
FLANGE ID: 31
FLANGE OD: 45

PD: 38.20
OD: 37.44
FLANGE ID: 31
FLANGE OD: 45

PD: 39.15
OD: 38.39
FLANGE ID: 31
FLANGE OD: 45

PD: 40.11
OD: 39.35
FLANGE ID: 31
FLANGE OD: 45

PD: 41.06
OD: 40.30
FLANGE ID: 36
FLANGE OD: 48

PD: 42.02
OD: 41.25
FLANGE ID: 36
FLANGE OD: 48

PD: 42.97
OD: 42.21
FLANGE ID: 36
FLANGE OD: 48

PD: 43.93
OD: 43.16
FLANGE ID: 36
FLANGE OD: 48

PD: 44.88
OD: 44.12
FLANGE ID: 41
FLANGE OD: 55

PD: 45.84
OD: 45.07
FLANGE ID: 41
FLANGE OD: 55

PD: 46.79
OD: 46.03
FLANGE ID: 41
FLANGE OD: 55

PD: 47.75
OD: 46.98
FLANGE ID: 41
FLANGE OD: 55

PD: 48.70
OD: 47.94
FLANGE ID: 41
FLANGE OD: 55

PD: 49.66
OD: 48.89
FLANGE ID: 41
FLANGE OD: 55

PD: 50.61
OD: 49.85
FLANGE ID: 41
FLANGE OD: 55

PD: 51.57
OD: 50.80
FLANGE ID: 46
FLANGE OD: 61

PD: 52.52
OD: 51.76
FLANGE ID: 46
FLANGE OD: 61

PD: 53.48
OD: 52.71
FLANGE ID: 46
FLANGE OD: 61

PD: 54.43
OD: 53.67
FLANGE ID: 46
FLANGE OD: 61

PD: 55.39
OD: 54.62
FLANGE ID: 46
FLANGE OD: 61

PD: 56.34
OD: 55.58
FLANGE ID: 46
FLANGE OD: 61

PD: 57.30
OD: 56.53
FLANGE ID: 46
FLANGE OD: 61

PD: 58.25
OD: 57.49
FLANGE ID: 51
FLANGE OD: 67

PD: 59.21
OD: 58.44
FLANGE ID: 51
FLANGE OD: 67

PD: 60.16
OD: 59.40
FLANGE ID: 51
FLANGE OD: 67

PD: 63.03
OD: 62.26
FLANGE ID: 51
FLANGE OD: 67

PD: 63.98
OD: 63.22
FLANGE ID: 56
FLANGE OD: 70

PD: 64.94
OD: 64.17
FLANGE ID: 56
FLANGE OD: 70

PD: 65.89
OD: 65.13
FLANGE ID: 56
FLANGE OD: 70

PD: 66.85
OD: 66.08
FLANGE ID: 61
FLANGE OD: 76

PD: 67.80
OD: 67.04
FLANGE ID: 61
FLANGE OD: 76

PD: 68.75
OD: 67.99
FLANGE ID: 61
FLANGE OD: 76

PD: 69.71
OD: 68.95
FLANGE ID: 61
FLANGE OD: 76

PD: 72.57
OD: 71.81
FLANGE ID: 61
FLANGE OD: 76

PD: 73.53
OD: 72.77
FLANGE ID: 61
FLANGE OD: 76

PD: 74.48
OD: 73.72
FLANGE ID: 66
FLANGE OD: 83

PD: 76.39
OD: 75.63
FLANGE ID: 66
FLANGE OD: 83

PD: 77.35
OD: 76.59
FLANGE ID: 66
FLANGE OD: 83

PD: 78.30
OD: 77.54
FLANGE ID: 66
FLANGE OD: 83

PD: 79.26
OD: 78.50
FLANGE ID: 71
FLANGE OD: 88

PD: 80.21
OD: 79.45
FLANGE ID: 71
FLANGE OD: 88

PD: 81.17
OD: 80.41
FLANGE ID: 71
FLANGE OD: 88

PD: 82.12
OD: 81.36
FLANGE ID: 71
FLANGE OD: 88

PD: 84.99
OD: 84.23
FLANGE ID: 75
FLANGE OD: 95

PD: 85.94
OD: 85.18
FLANGE ID: 75
FLANGE OD: 95

PD: 86.90
OD: 86.14
FLANGE ID: 75
FLANGE OD: 95

PD: 89.76
OD: 89.00
FLANGE ID: 75
FLANGE OD: 95

PD: 90.72
OD: 89.96
FLANGE ID: 80
FLANGE OD: 99

PD: 91.67
OD: 90.91
FLANGE ID: 80
FLANGE OD: 99

100

PD: 95.49
OD: 94.73
FLANGE ID: 85
FLANGE OD: 103

120

PD: 114.59
OD: 113.83
FLANGE ID: –
FLANGE OD: –

150

PD: 143.24
OD: 142.48
FLANGE ID: –
FLANGE OD: –

총 77개 · 원본 규격표 전사

S5M

치수 mm

TEETH⇅	PD⇅	OD⇅	FLANGE ID⇅	FLANGE OD⇅
14	22.28	21.32	15	25
15	23.87	22.91	17.5	28
16	25.46	24.50	20	32
17	27.06	26.10	20	32
18	28.65	27.69	20	32
19	30.24	29.28	25	35
20	31.83	30.87	25	35
21	33.42	32.46	27.5	40
22	35.01	34.05	27.5	40
23	36.61	35.65	31	45
24	38.20	37.24	31	45
25	39.79	38.83	31	45
26	41.38	40.42	36	48
27	42.97	42.01	36	48
28	44.56	43.60	36	48
29	46.15	45.19	41	55
30	47.75	46.79	41	55
31	49.34	48.38	41	55
32	50.93	49.97	41	55
33	52.52	51.56	46	61
34	54.11	53.15	46	61
35	55.70	54.74	46	61
36	57.30	56.34	51	67
37	58.89	57.93	51	67
38	60.48	59.52	51	67
39	62.07	61.11	56	70
40	63.66	62.70	56	70
41	65.25	64.29	56	70
42	66.85	65.89	61	76
43	68.44	67.48	61	76
44	70.03	69.07	61	76
45	71.62	70.66	61	76
46	73.21	72.25	66	83
47	74.80	73.84	66	83
48	76.39	75.43	66	83
49	77.99	77.03	71	88
50	79.58	78.62	71	88
51	81.17	80.21	71	88
52	82.76	81.80	71	88
53	84.35	83.39	75	95
54	85.94	84.98	75	95
55	87.54	86.58	75	95
56	89.13	88.17	75	95
57	90.72	89.76	75	95
58	92.31	91.35	85	103
59	93.90	92.94	85	103
60	95.49	94.53	85	103
61	97.08	96.12	85	103
62	98.68	97.72	90	111
63	100.27	99.31	90	111
66	105.04	104.08	90	111
67	106.63	105.67	–	–
68	108.23	107.27	–	–
69	109.82	108.86	–	–
70	111.41	110.45	–	–
71	113.00	112.04	–	–
72	114.59	113.63	–	–
73	116.18	115.22	–	–
76	120.96	120.00	–	–
77	122.55	121.59	–	–
78	124.14	123.18	–	–
80	127.32	126.36	–	–
81	128.92	127.96	–	–
82	130.51	129.55	–	–
83	132.10	131.14	–	–
84	133.69	132.73	–	–
85	135.28	134.32	–	–
86	136.87	135.91	–	–
89	141.65	140.69	–	–
90	143.24	142.28	–	–
91	144.83	143.87	–	–
94	149.61	148.65	–	–
95	151.20	150.24	–	–
96	152.79	151.83	–	–
100	159.15	158.19	–	–
120	190.99	190.03	–	–
150	238.73	237.77	–	–

PD: 22.28
OD: 21.32
FLANGE ID: 15
FLANGE OD: 25

PD: 23.87
OD: 22.91
FLANGE ID: 17.5
FLANGE OD: 28

PD: 25.46
OD: 24.50
FLANGE ID: 20
FLANGE OD: 32

PD: 27.06
OD: 26.10
FLANGE ID: 20
FLANGE OD: 32

PD: 28.65
OD: 27.69
FLANGE ID: 20
FLANGE OD: 32

PD: 30.24
OD: 29.28
FLANGE ID: 25
FLANGE OD: 35

PD: 31.83
OD: 30.87
FLANGE ID: 25
FLANGE OD: 35

PD: 33.42
OD: 32.46
FLANGE ID: 27.5
FLANGE OD: 40

PD: 35.01
OD: 34.05
FLANGE ID: 27.5
FLANGE OD: 40

PD: 36.61
OD: 35.65
FLANGE ID: 31
FLANGE OD: 45

PD: 38.20
OD: 37.24
FLANGE ID: 31
FLANGE OD: 45

PD: 39.79
OD: 38.83
FLANGE ID: 31
FLANGE OD: 45

PD: 41.38
OD: 40.42
FLANGE ID: 36
FLANGE OD: 48

PD: 42.97
OD: 42.01
FLANGE ID: 36
FLANGE OD: 48

PD: 44.56
OD: 43.60
FLANGE ID: 36
FLANGE OD: 48

PD: 46.15
OD: 45.19
FLANGE ID: 41
FLANGE OD: 55

PD: 47.75
OD: 46.79
FLANGE ID: 41
FLANGE OD: 55

PD: 49.34
OD: 48.38
FLANGE ID: 41
FLANGE OD: 55

PD: 50.93
OD: 49.97
FLANGE ID: 41
FLANGE OD: 55

PD: 52.52
OD: 51.56
FLANGE ID: 46
FLANGE OD: 61

PD: 54.11
OD: 53.15
FLANGE ID: 46
FLANGE OD: 61

PD: 55.70
OD: 54.74
FLANGE ID: 46
FLANGE OD: 61

PD: 57.30
OD: 56.34
FLANGE ID: 51
FLANGE OD: 67

PD: 58.89
OD: 57.93
FLANGE ID: 51
FLANGE OD: 67

PD: 60.48
OD: 59.52
FLANGE ID: 51
FLANGE OD: 67

PD: 62.07
OD: 61.11
FLANGE ID: 56
FLANGE OD: 70

PD: 63.66
OD: 62.70
FLANGE ID: 56
FLANGE OD: 70

PD: 65.25
OD: 64.29
FLANGE ID: 56
FLANGE OD: 70

PD: 66.85
OD: 65.89
FLANGE ID: 61
FLANGE OD: 76

PD: 68.44
OD: 67.48
FLANGE ID: 61
FLANGE OD: 76

PD: 70.03
OD: 69.07
FLANGE ID: 61
FLANGE OD: 76

PD: 71.62
OD: 70.66
FLANGE ID: 61
FLANGE OD: 76

PD: 73.21
OD: 72.25
FLANGE ID: 66
FLANGE OD: 83

PD: 74.80
OD: 73.84
FLANGE ID: 66
FLANGE OD: 83

PD: 76.39
OD: 75.43
FLANGE ID: 66
FLANGE OD: 83

PD: 77.99
OD: 77.03
FLANGE ID: 71
FLANGE OD: 88

PD: 79.58
OD: 78.62
FLANGE ID: 71
FLANGE OD: 88

PD: 81.17
OD: 80.21
FLANGE ID: 71
FLANGE OD: 88

PD: 82.76
OD: 81.80
FLANGE ID: 71
FLANGE OD: 88

PD: 84.35
OD: 83.39
FLANGE ID: 75
FLANGE OD: 95

PD: 85.94
OD: 84.98
FLANGE ID: 75
FLANGE OD: 95

PD: 87.54
OD: 86.58
FLANGE ID: 75
FLANGE OD: 95

PD: 89.13
OD: 88.17
FLANGE ID: 75
FLANGE OD: 95

PD: 90.72
OD: 89.76
FLANGE ID: 75
FLANGE OD: 95

PD: 92.31
OD: 91.35
FLANGE ID: 85
FLANGE OD: 103

PD: 93.90
OD: 92.94
FLANGE ID: 85
FLANGE OD: 103

PD: 95.49
OD: 94.53
FLANGE ID: 85
FLANGE OD: 103

PD: 97.08
OD: 96.12
FLANGE ID: 85
FLANGE OD: 103

PD: 98.68
OD: 97.72
FLANGE ID: 90
FLANGE OD: 111

PD: 100.27
OD: 99.31
FLANGE ID: 90
FLANGE OD: 111

PD: 105.04
OD: 104.08
FLANGE ID: 90
FLANGE OD: 111

PD: 106.63
OD: 105.67
FLANGE ID: –
FLANGE OD: –

PD: 108.23
OD: 107.27
FLANGE ID: –
FLANGE OD: –

PD: 109.82
OD: 108.86
FLANGE ID: –
FLANGE OD: –

PD: 111.41
OD: 110.45
FLANGE ID: –
FLANGE OD: –

PD: 113.00
OD: 112.04
FLANGE ID: –
FLANGE OD: –

PD: 114.59
OD: 113.63
FLANGE ID: –
FLANGE OD: –

PD: 116.18
OD: 115.22
FLANGE ID: –
FLANGE OD: –

PD: 120.96
OD: 120.00
FLANGE ID: –
FLANGE OD: –

PD: 122.55
OD: 121.59
FLANGE ID: –
FLANGE OD: –

PD: 124.14
OD: 123.18
FLANGE ID: –
FLANGE OD: –

PD: 127.32
OD: 126.36
FLANGE ID: –
FLANGE OD: –

PD: 128.92
OD: 127.96
FLANGE ID: –
FLANGE OD: –

PD: 130.51
OD: 129.55
FLANGE ID: –
FLANGE OD: –

PD: 132.10
OD: 131.14
FLANGE ID: –
FLANGE OD: –

PD: 133.69
OD: 132.73
FLANGE ID: –
FLANGE OD: –

PD: 135.28
OD: 134.32
FLANGE ID: –
FLANGE OD: –

PD: 136.87
OD: 135.91
FLANGE ID: –
FLANGE OD: –

PD: 141.65
OD: 140.69
FLANGE ID: –
FLANGE OD: –

PD: 143.24
OD: 142.28
FLANGE ID: –
FLANGE OD: –

PD: 144.83
OD: 143.87
FLANGE ID: –
FLANGE OD: –

PD: 149.61
OD: 148.65
FLANGE ID: –
FLANGE OD: –

PD: 151.20
OD: 150.24
FLANGE ID: –
FLANGE OD: –

PD: 152.79
OD: 151.83
FLANGE ID: –
FLANGE OD: –

100

PD: 159.15
OD: 158.19
FLANGE ID: –
FLANGE OD: –

120

PD: 190.99
OD: 190.03
FLANGE ID: –
FLANGE OD: –

150

PD: 238.73
OD: 237.77
FLANGE ID: –
FLANGE OD: –

총 77개 · 원본 규격표 전사

S8M

치수 mm

TEETH⇅	PD⇅	OD⇅	FLANGE ID⇅	FLANGE OD⇅
18	45.84	44.46	36	48
19	48.38	47.01	41	55
20	50.93	49.56	40	60
22	56.02	54.65	45	64
24	61.12	59.74	50	70
25	63.66	62.29	52	72
26	66.21	64.83	54	75
28	71.30	69.93	59	80
30	76.39	75.02	64	85
32	81.49	80.11	69	90
34	86.58	85.21	74	95
36	91.67	90.30	79	100
40	101.86	100.49	89	110
44	112.05	110.67	99	121
48	122.23	120.86	109	131
56	142.60	141.23	130	151
64	162.97	161.60	150	172
72	183.35	181.97	–	–
84	213.90	212.53	–	–
96	244.46	243.09	–	–
120	305.58	304.20	–	–
144	366.69	365.32	–	–

PD: 45.84
OD: 44.46
FLANGE ID: 36
FLANGE OD: 48

PD: 48.38
OD: 47.01
FLANGE ID: 41
FLANGE OD: 55

PD: 50.93
OD: 49.56
FLANGE ID: 40
FLANGE OD: 60

PD: 56.02
OD: 54.65
FLANGE ID: 45
FLANGE OD: 64

PD: 61.12
OD: 59.74
FLANGE ID: 50
FLANGE OD: 70

PD: 63.66
OD: 62.29
FLANGE ID: 52
FLANGE OD: 72

PD: 66.21
OD: 64.83
FLANGE ID: 54
FLANGE OD: 75

PD: 71.30
OD: 69.93
FLANGE ID: 59
FLANGE OD: 80

PD: 76.39
OD: 75.02
FLANGE ID: 64
FLANGE OD: 85

PD: 81.49
OD: 80.11
FLANGE ID: 69
FLANGE OD: 90

PD: 86.58
OD: 85.21
FLANGE ID: 74
FLANGE OD: 95

PD: 91.67
OD: 90.30
FLANGE ID: 79
FLANGE OD: 100

PD: 101.86
OD: 100.49
FLANGE ID: 89
FLANGE OD: 110

PD: 112.05
OD: 110.67
FLANGE ID: 99
FLANGE OD: 121

PD: 122.23
OD: 120.86
FLANGE ID: 109
FLANGE OD: 131

PD: 142.60
OD: 141.23
FLANGE ID: 130
FLANGE OD: 151

PD: 162.97
OD: 161.60
FLANGE ID: 150
FLANGE OD: 172

PD: 183.35
OD: 181.97
FLANGE ID: –
FLANGE OD: –

PD: 213.90
OD: 212.53
FLANGE ID: –
FLANGE OD: –

PD: 244.46
OD: 243.09
FLANGE ID: –
FLANGE OD: –

120

PD: 305.58
OD: 304.20
FLANGE ID: –
FLANGE OD: –

144

PD: 366.69
OD: 365.32
FLANGE ID: –
FLANGE OD: –

총 22개 · 원본 규격표 전사

S14M

치수 mm

TEETH⇅	PD⇅	OD⇅	FLANGE ID⇅	FLANGE OD⇅
28	124.78	121.98	106	137
30	133.69	130.90	115	146
32	142.60	139.81	123	155
34	151.52	148.72	132	164
36	160.43	157.63	140	173
38	169.34	166.55	149	182
40	178.25	175.46	–	–
44	196.08	193.28	–	–
48	213.90	211.11	–	–
50	222.82	220.02	–	–
56	249.55	246.76	–	–
60	267.38	264.59	–	–
64	285.21	282.41	–	–
72	320.86	318.06	–	–
80	356.51	353.71	–	–
88	392.16	389.36	–	–
96	427.81	425.01	–	–
100	445.63	442.84	–	–
112	499.11	496.31	–	–
120	534.76	531.97	–	–
128	570.41	567.62	–	–
144	641.71	638.92	–	–

PD: 124.78
OD: 121.98
FLANGE ID: 106
FLANGE OD: 137

PD: 133.69
OD: 130.90
FLANGE ID: 115
FLANGE OD: 146

PD: 142.60
OD: 139.81
FLANGE ID: 123
FLANGE OD: 155

PD: 151.52
OD: 148.72
FLANGE ID: 132
FLANGE OD: 164

PD: 160.43
OD: 157.63
FLANGE ID: 140
FLANGE OD: 173

PD: 169.34
OD: 166.55
FLANGE ID: 149
FLANGE OD: 182

PD: 178.25
OD: 175.46
FLANGE ID: –
FLANGE OD: –

PD: 196.08
OD: 193.28
FLANGE ID: –
FLANGE OD: –

PD: 213.90
OD: 211.11
FLANGE ID: –
FLANGE OD: –

PD: 222.82
OD: 220.02
FLANGE ID: –
FLANGE OD: –

PD: 249.55
OD: 246.76
FLANGE ID: –
FLANGE OD: –

PD: 267.38
OD: 264.59
FLANGE ID: –
FLANGE OD: –

PD: 285.21
OD: 282.41
FLANGE ID: –
FLANGE OD: –

PD: 320.86
OD: 318.06
FLANGE ID: –
FLANGE OD: –

PD: 356.51
OD: 353.71
FLANGE ID: –
FLANGE OD: –

PD: 392.16
OD: 389.36
FLANGE ID: –
FLANGE OD: –

PD: 427.81
OD: 425.01
FLANGE ID: –
FLANGE OD: –

100

PD: 445.63
OD: 442.84
FLANGE ID: –
FLANGE OD: –

112

PD: 499.11
OD: 496.31
FLANGE ID: –
FLANGE OD: –

120

PD: 534.76
OD: 531.97
FLANGE ID: –
FLANGE OD: –

128

PD: 570.41
OD: 567.62
FLANGE ID: –
FLANGE OD: –

144

PD: 641.71
OD: 638.92
FLANGE ID: –
FLANGE OD: –

총 22개 · 원본 규격표 전사

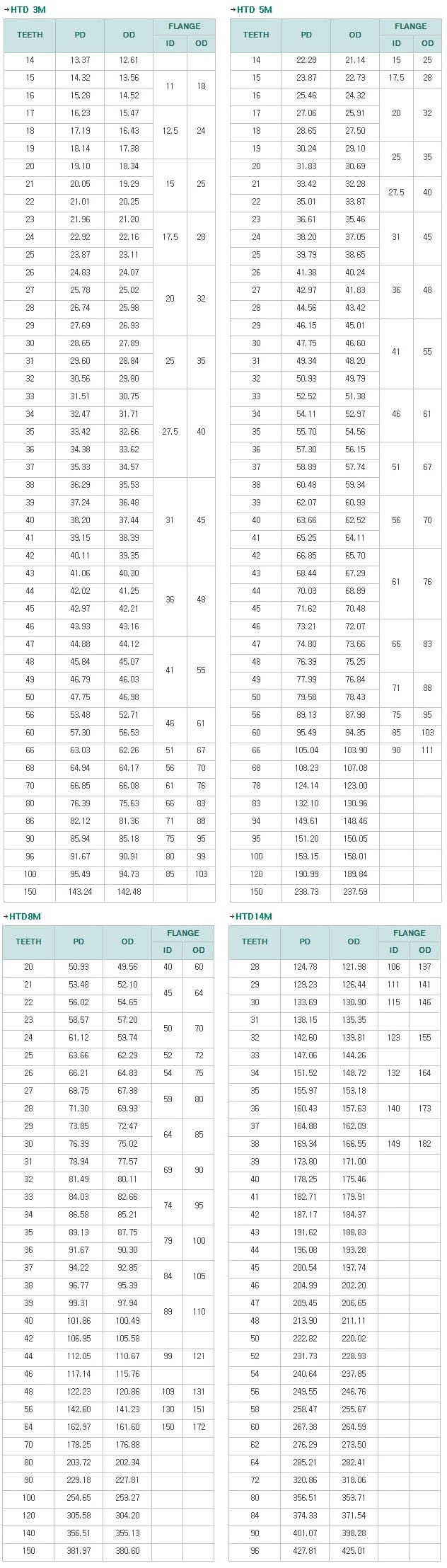

HTD 3M

치수 mm

TEETH⇅	PD⇅	OD⇅	FLANGE ID⇅	FLANGE OD⇅
14	13.37	12.61	–	–
15	14.32	13.56	11	18
16	15.28	14.52	11	18
17	16.23	15.47	12.5	24
18	17.19	16.43	12.5	24
19	18.14	17.38	12.5	24
20	19.10	18.34	15	25
21	20.05	19.29	15	25
22	21.01	20.25	15	25
23	21.96	21.20	17.5	28
24	22.92	22.16	17.5	28
25	23.87	23.11	17.5	28
26	24.83	24.07	20	32
27	25.78	25.02	20	32
28	26.74	25.98	20	32
29	27.69	26.93	20	32
30	28.65	27.89	25	35
31	29.60	28.84	25	35
32	30.56	29.80	25	35
33	31.51	30.75	27.5	40
34	32.47	31.71	27.5	40
35	33.42	32.66	27.5	40
36	34.38	33.62	27.5	40
37	35.33	34.57	27.5	40
38	36.29	35.53	31	45
39	37.24	36.48	31	45
40	38.20	37.44	31	45
41	39.15	38.39	31	45
42	40.11	39.35	31	45
43	41.06	40.30	36	48
44	42.02	41.25	36	48
45	42.97	42.21	36	48
46	43.93	43.16	36	48
47	44.88	44.12	41	55
48	45.84	45.07	41	55
49	46.79	46.03	41	55
50	47.75	46.98	41	55
56	53.48	52.71	46	61
60	57.30	56.53	46	61
66	63.03	62.26	51	67
68	64.94	64.17	56	70
70	66.85	66.08	61	76
80	76.39	75.63	66	83
86	82.12	81.36	71	88
90	85.94	85.18	75	95
96	91.67	90.91	80	99
100	95.49	94.73	85	103
150	143.24	142.48	–	–

PD: 13.37
OD: 12.61
FLANGE ID: –
FLANGE OD: –

PD: 14.32
OD: 13.56
FLANGE ID: 11
FLANGE OD: 18

PD: 15.28
OD: 14.52
FLANGE ID: 11
FLANGE OD: 18

PD: 16.23
OD: 15.47
FLANGE ID: 12.5
FLANGE OD: 24

PD: 17.19
OD: 16.43
FLANGE ID: 12.5
FLANGE OD: 24

PD: 18.14
OD: 17.38
FLANGE ID: 12.5
FLANGE OD: 24

PD: 19.10
OD: 18.34
FLANGE ID: 15
FLANGE OD: 25

PD: 20.05
OD: 19.29
FLANGE ID: 15
FLANGE OD: 25

PD: 21.01
OD: 20.25
FLANGE ID: 15
FLANGE OD: 25

PD: 21.96
OD: 21.20
FLANGE ID: 17.5
FLANGE OD: 28

PD: 22.92
OD: 22.16
FLANGE ID: 17.5
FLANGE OD: 28

PD: 23.87
OD: 23.11
FLANGE ID: 17.5
FLANGE OD: 28

PD: 24.83
OD: 24.07
FLANGE ID: 20
FLANGE OD: 32

PD: 25.78
OD: 25.02
FLANGE ID: 20
FLANGE OD: 32

PD: 26.74
OD: 25.98
FLANGE ID: 20
FLANGE OD: 32

PD: 27.69
OD: 26.93
FLANGE ID: 20
FLANGE OD: 32

PD: 28.65
OD: 27.89
FLANGE ID: 25
FLANGE OD: 35

PD: 29.60
OD: 28.84
FLANGE ID: 25
FLANGE OD: 35

PD: 30.56
OD: 29.80
FLANGE ID: 25
FLANGE OD: 35

PD: 31.51
OD: 30.75
FLANGE ID: 27.5
FLANGE OD: 40

PD: 32.47
OD: 31.71
FLANGE ID: 27.5
FLANGE OD: 40

PD: 33.42
OD: 32.66
FLANGE ID: 27.5
FLANGE OD: 40

PD: 34.38
OD: 33.62
FLANGE ID: 27.5
FLANGE OD: 40

PD: 35.33
OD: 34.57
FLANGE ID: 27.5
FLANGE OD: 40

PD: 36.29
OD: 35.53
FLANGE ID: 31
FLANGE OD: 45

PD: 37.24
OD: 36.48
FLANGE ID: 31
FLANGE OD: 45

PD: 38.20
OD: 37.44
FLANGE ID: 31
FLANGE OD: 45

PD: 39.15
OD: 38.39
FLANGE ID: 31
FLANGE OD: 45

PD: 40.11
OD: 39.35
FLANGE ID: 31
FLANGE OD: 45

PD: 41.06
OD: 40.30
FLANGE ID: 36
FLANGE OD: 48

PD: 42.02
OD: 41.25
FLANGE ID: 36
FLANGE OD: 48

PD: 42.97
OD: 42.21
FLANGE ID: 36
FLANGE OD: 48

PD: 43.93
OD: 43.16
FLANGE ID: 36
FLANGE OD: 48

PD: 44.88
OD: 44.12
FLANGE ID: 41
FLANGE OD: 55

PD: 45.84
OD: 45.07
FLANGE ID: 41
FLANGE OD: 55

PD: 46.79
OD: 46.03
FLANGE ID: 41
FLANGE OD: 55

PD: 47.75
OD: 46.98
FLANGE ID: 41
FLANGE OD: 55

PD: 53.48
OD: 52.71
FLANGE ID: 46
FLANGE OD: 61

PD: 57.30
OD: 56.53
FLANGE ID: 46
FLANGE OD: 61

PD: 63.03
OD: 62.26
FLANGE ID: 51
FLANGE OD: 67

PD: 64.94
OD: 64.17
FLANGE ID: 56
FLANGE OD: 70

PD: 66.85
OD: 66.08
FLANGE ID: 61
FLANGE OD: 76

PD: 76.39
OD: 75.63
FLANGE ID: 66
FLANGE OD: 83

PD: 82.12
OD: 81.36
FLANGE ID: 71
FLANGE OD: 88

PD: 85.94
OD: 85.18
FLANGE ID: 75
FLANGE OD: 95

PD: 91.67
OD: 90.91
FLANGE ID: 80
FLANGE OD: 99

100

PD: 95.49
OD: 94.73
FLANGE ID: 85
FLANGE OD: 103

150

PD: 143.24
OD: 142.48
FLANGE ID: –
FLANGE OD: –

총 48개 · 원본 규격표 전사

HTD 5M

치수 mm

TEETH⇅	PD⇅	OD⇅	FLANGE ID⇅	FLANGE OD⇅
14	22.28	21.14	15	25
15	23.87	22.73	17.5	28
16	25.46	24.32	20	32
17	27.06	25.91	20	32
18	28.65	27.50	20	32
19	30.24	29.10	25	35
20	31.83	30.69	25	35
21	33.42	32.28	27.5	40
22	35.01	33.87	27.5	40
23	36.61	35.46	31	45
24	38.20	37.05	31	45
25	39.79	38.65	31	45
26	41.38	40.24	36	48
27	42.97	41.83	36	48
28	44.56	43.42	36	48
29	46.15	45.01	41	55
30	47.75	46.60	41	55
31	49.34	48.20	41	55
32	50.93	49.79	41	55
33	52.52	51.38	46	61
34	54.11	52.97	46	61
35	55.70	54.56	46	61
36	57.30	56.15	51	67
37	58.89	57.74	51	67
38	60.48	59.34	51	67
39	62.07	60.93	56	70
40	63.66	62.52	56	70
41	65.25	64.11	56	70
42	66.85	65.70	61	76
43	68.44	67.29	61	76
44	70.03	68.89	61	76
45	71.62	70.48	61	76
46	73.21	72.07	66	83
47	74.80	73.66	66	83
48	76.39	75.25	66	83
49	77.99	76.84	71	88
50	79.58	78.43	71	88
56	89.13	87.98	75	95
60	95.49	94.35	85	103
66	105.04	103.90	90	111
68	108.23	107.08	–	–
78	124.14	123.00	–	–
83	132.10	130.96	–	–
94	149.61	148.46	–	–
95	151.20	150.05	–	–
100	159.15	158.01	–	–
120	190.99	189.84	–	–
150	238.73	237.59	–	–

PD: 22.28
OD: 21.14
FLANGE ID: 15
FLANGE OD: 25

PD: 23.87
OD: 22.73
FLANGE ID: 17.5
FLANGE OD: 28

PD: 25.46
OD: 24.32
FLANGE ID: 20
FLANGE OD: 32

PD: 27.06
OD: 25.91
FLANGE ID: 20
FLANGE OD: 32

PD: 28.65
OD: 27.50
FLANGE ID: 20
FLANGE OD: 32

PD: 30.24
OD: 29.10
FLANGE ID: 25
FLANGE OD: 35

PD: 31.83
OD: 30.69
FLANGE ID: 25
FLANGE OD: 35

PD: 33.42
OD: 32.28
FLANGE ID: 27.5
FLANGE OD: 40

PD: 35.01
OD: 33.87
FLANGE ID: 27.5
FLANGE OD: 40

PD: 36.61
OD: 35.46
FLANGE ID: 31
FLANGE OD: 45

PD: 38.20
OD: 37.05
FLANGE ID: 31
FLANGE OD: 45

PD: 39.79
OD: 38.65
FLANGE ID: 31
FLANGE OD: 45

PD: 41.38
OD: 40.24
FLANGE ID: 36
FLANGE OD: 48

PD: 42.97
OD: 41.83
FLANGE ID: 36
FLANGE OD: 48

PD: 44.56
OD: 43.42
FLANGE ID: 36
FLANGE OD: 48

PD: 46.15
OD: 45.01
FLANGE ID: 41
FLANGE OD: 55

PD: 47.75
OD: 46.60
FLANGE ID: 41
FLANGE OD: 55

PD: 49.34
OD: 48.20
FLANGE ID: 41
FLANGE OD: 55

PD: 50.93
OD: 49.79
FLANGE ID: 41
FLANGE OD: 55

PD: 52.52
OD: 51.38
FLANGE ID: 46
FLANGE OD: 61

PD: 54.11
OD: 52.97
FLANGE ID: 46
FLANGE OD: 61

PD: 55.70
OD: 54.56
FLANGE ID: 46
FLANGE OD: 61

PD: 57.30
OD: 56.15
FLANGE ID: 51
FLANGE OD: 67

PD: 58.89
OD: 57.74
FLANGE ID: 51
FLANGE OD: 67

PD: 60.48
OD: 59.34
FLANGE ID: 51
FLANGE OD: 67

PD: 62.07
OD: 60.93
FLANGE ID: 56
FLANGE OD: 70

PD: 63.66
OD: 62.52
FLANGE ID: 56
FLANGE OD: 70

PD: 65.25
OD: 64.11
FLANGE ID: 56
FLANGE OD: 70

PD: 66.85
OD: 65.70
FLANGE ID: 61
FLANGE OD: 76

PD: 68.44
OD: 67.29
FLANGE ID: 61
FLANGE OD: 76

PD: 70.03
OD: 68.89
FLANGE ID: 61
FLANGE OD: 76

PD: 71.62
OD: 70.48
FLANGE ID: 61
FLANGE OD: 76

PD: 73.21
OD: 72.07
FLANGE ID: 66
FLANGE OD: 83

PD: 74.80
OD: 73.66
FLANGE ID: 66
FLANGE OD: 83

PD: 76.39
OD: 75.25
FLANGE ID: 66
FLANGE OD: 83

PD: 77.99
OD: 76.84
FLANGE ID: 71
FLANGE OD: 88

PD: 79.58
OD: 78.43
FLANGE ID: 71
FLANGE OD: 88

PD: 89.13
OD: 87.98
FLANGE ID: 75
FLANGE OD: 95

PD: 95.49
OD: 94.35
FLANGE ID: 85
FLANGE OD: 103

PD: 105.04
OD: 103.90
FLANGE ID: 90
FLANGE OD: 111

PD: 108.23
OD: 107.08
FLANGE ID: –
FLANGE OD: –

PD: 124.14
OD: 123.00
FLANGE ID: –
FLANGE OD: –

PD: 132.10
OD: 130.96
FLANGE ID: –
FLANGE OD: –

PD: 149.61
OD: 148.46
FLANGE ID: –
FLANGE OD: –

PD: 151.20
OD: 150.05
FLANGE ID: –
FLANGE OD: –

100

PD: 159.15
OD: 158.01
FLANGE ID: –
FLANGE OD: –

120

PD: 190.99
OD: 189.84
FLANGE ID: –
FLANGE OD: –

150

PD: 238.73
OD: 237.59
FLANGE ID: –
FLANGE OD: –

총 48개 · 원본 규격표 전사

HTD 8M

치수 mm

TEETH⇅	PD⇅	OD⇅	FLANGE ID⇅	FLANGE OD⇅
20	50.93	49.56	40	60
21	53.48	52.10	45	64
22	56.02	54.65	45	64
23	58.57	57.20	50	70
24	61.12	59.74	50	70
25	63.66	62.29	52	72
26	66.21	64.83	54	75
27	68.75	67.38	59	80
28	71.30	69.93	59	80
29	73.85	72.47	64	85
30	76.39	75.02	64	85
31	78.94	77.57	69	90
32	81.49	80.11	69	90
33	84.03	82.66	74	95
34	86.58	85.21	74	95
35	89.13	87.75	79	100
36	91.67	90.30	79	100
37	94.22	92.85	84	105
38	96.77	95.39	84	105
39	99.31	97.94	89	110
40	101.86	100.49	89	110
42	106.95	105.58	–	–
44	112.05	110.67	99	121
46	117.14	115.76	–	–
48	122.23	120.86	109	131
56	142.60	141.23	130	151
64	162.97	161.60	150	172
70	178.25	176.88	–	–
80	203.72	202.34	–	–
90	229.18	227.81	–	–
100	254.65	253.27	–	–
120	305.58	304.20	–	–
140	356.51	355.13	–	–
150	381.97	380.60	–	–

PD: 50.93
OD: 49.56
FLANGE ID: 40
FLANGE OD: 60

PD: 53.48
OD: 52.10
FLANGE ID: 45
FLANGE OD: 64

PD: 56.02
OD: 54.65
FLANGE ID: 45
FLANGE OD: 64

PD: 58.57
OD: 57.20
FLANGE ID: 50
FLANGE OD: 70

PD: 61.12
OD: 59.74
FLANGE ID: 50
FLANGE OD: 70

PD: 63.66
OD: 62.29
FLANGE ID: 52
FLANGE OD: 72

PD: 66.21
OD: 64.83
FLANGE ID: 54
FLANGE OD: 75

PD: 68.75
OD: 67.38
FLANGE ID: 59
FLANGE OD: 80

PD: 71.30
OD: 69.93
FLANGE ID: 59
FLANGE OD: 80

PD: 73.85
OD: 72.47
FLANGE ID: 64
FLANGE OD: 85

PD: 76.39
OD: 75.02
FLANGE ID: 64
FLANGE OD: 85

PD: 78.94
OD: 77.57
FLANGE ID: 69
FLANGE OD: 90

PD: 81.49
OD: 80.11
FLANGE ID: 69
FLANGE OD: 90

PD: 84.03
OD: 82.66
FLANGE ID: 74
FLANGE OD: 95

PD: 86.58
OD: 85.21
FLANGE ID: 74
FLANGE OD: 95

PD: 89.13
OD: 87.75
FLANGE ID: 79
FLANGE OD: 100

PD: 91.67
OD: 90.30
FLANGE ID: 79
FLANGE OD: 100

PD: 94.22
OD: 92.85
FLANGE ID: 84
FLANGE OD: 105

PD: 96.77
OD: 95.39
FLANGE ID: 84
FLANGE OD: 105

PD: 99.31
OD: 97.94
FLANGE ID: 89
FLANGE OD: 110

PD: 101.86
OD: 100.49
FLANGE ID: 89
FLANGE OD: 110

PD: 106.95
OD: 105.58
FLANGE ID: –
FLANGE OD: –

PD: 112.05
OD: 110.67
FLANGE ID: 99
FLANGE OD: 121

PD: 117.14
OD: 115.76
FLANGE ID: –
FLANGE OD: –

PD: 122.23
OD: 120.86
FLANGE ID: 109
FLANGE OD: 131

PD: 142.60
OD: 141.23
FLANGE ID: 130
FLANGE OD: 151

PD: 162.97
OD: 161.60
FLANGE ID: 150
FLANGE OD: 172

PD: 178.25
OD: 176.88
FLANGE ID: –
FLANGE OD: –

PD: 203.72
OD: 202.34
FLANGE ID: –
FLANGE OD: –

PD: 229.18
OD: 227.81
FLANGE ID: –
FLANGE OD: –

100

PD: 254.65
OD: 253.27
FLANGE ID: –
FLANGE OD: –

120

PD: 305.58
OD: 304.20
FLANGE ID: –
FLANGE OD: –

140

PD: 356.51
OD: 355.13
FLANGE ID: –
FLANGE OD: –

150

PD: 381.97
OD: 380.60
FLANGE ID: –
FLANGE OD: –

총 34개 · 원본 규격표 전사

HTD 14M

치수 mm

TEETH⇅	PD⇅	OD⇅	FLANGE ID⇅	FLANGE OD⇅
28	124.78	121.98	106	137
29	129.23	126.44	111	141
30	133.69	130.90	115	146
31	138.15	135.35	–	–
32	142.60	139.81	123	155
33	147.06	144.26	–	–
34	151.52	148.72	132	164
35	155.97	153.18	–	–
36	160.43	157.63	140	173
37	164.88	162.09	–	–
38	169.34	166.55	149	182
39	173.80	171.00	–	–
40	178.25	175.46	–	–
41	182.71	179.91	–	–
42	187.17	184.37	–	–
43	191.62	188.83	–	–
44	196.08	193.28	–	–
45	200.54	197.74	–	–
46	204.99	202.20	–	–
47	209.45	206.65	–	–
48	213.90	211.11	–	–
50	222.82	220.02	–	–
52	231.73	228.93	–	–
54	240.64	237.85	–	–
56	249.55	246.76	–	–
58	258.47	255.67	–	–
60	267.38	264.59	–	–
62	276.29	273.50	–	–
64	285.21	282.41	–	–
72	320.86	318.06	–	–
80	356.51	353.71	–	–
84	374.33	371.54	–	–
90	401.07	398.28	–	–
96	427.81	425.01	–	–

PD: 124.78
OD: 121.98
FLANGE ID: 106
FLANGE OD: 137
